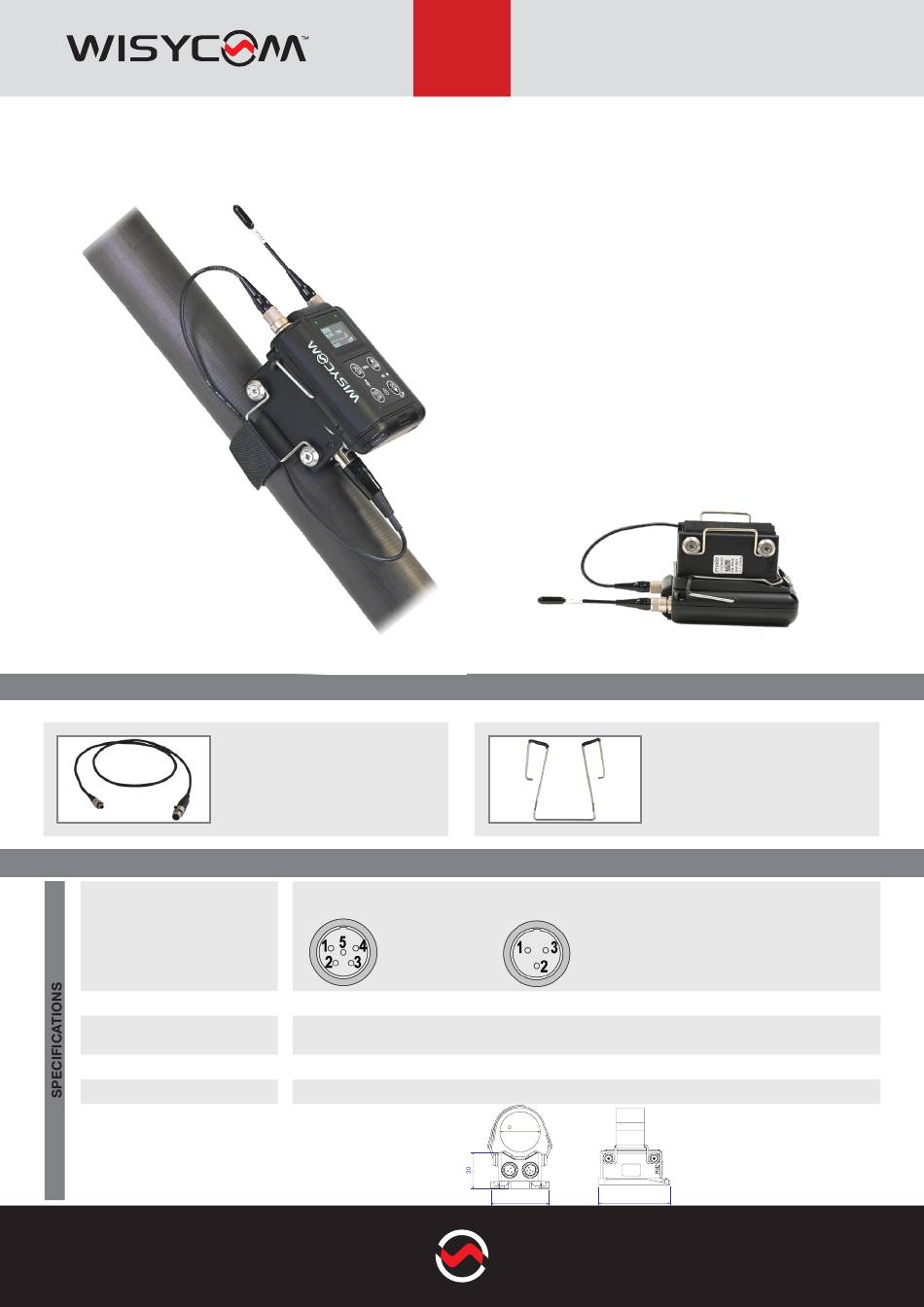

WisyCom PHA60-D Quick Start Manual

PHA60-D is an phantom power adapter for pole to connect
Wisycom wireless transmitter MTP60 to a wired microphone (ie a shotgun).
Audio connector
Pole diameter
Phantom power
Power supply
Weight
Dimensions
Wisycom Italy
Wisycom Srl - Via Tiepolo, 7/E I-35019 Tombolo (PD) Italy
Tel. +39 0424 382605 - e-mail : sales@wisycom.com
ACCESSORIES & RELATED
ACCESSORIES & RELATED
Item: CAL48S
Audio cable to connect MTP60 to
PHA60, 27 cm
LEMO 3pin to mini XLR 5pin Female

TECHNICAL SPECIFICATIONS

ACCESSORIES & RELATED
mini XLR-5M
[1] GND
[2] AF-
[3] AF+
[4] VDC
[5] GND
from 25 to 40 mm
41 ± 2V @ 5 mA (set MIC mode PHA60-48 on MTP60), PHA60 and PHA60-D
12 ± 2V @ 5 mA (set MIC mode PHA60-12 on MTP60), PHA60-D only
3 Vdc
92 g
64,5 x 48 x 30 mm (HxWxD)
PHA
60-D
This adapter provides the stabilized voltage and a
high quality insulation transformer in a small form
factor suitable to be plugged directly on the MIC.
Thanks to the felt hook it allows a stable and
safe fixing on poles from 25 to 40 mm.
Quick fastening system using
mini XLR-3M
[1] GND
[2] Hot +
[3] Cold -
2 5 ~ 4 0
4 8
Tel. +1 (888) 947-9266 - e-mail : sales@wisycomusa.com
PHANTOM POWER
ADAPTER
the MTP60 belt clip
Item: BCLW60
Wire belt clip for MTP60
6 4 . 5
5228 Eisenhower Avenue - Alexandria, Virginia 22304
PHA60-D-en-b02 - Subject to change without notice
Wisycom USA
