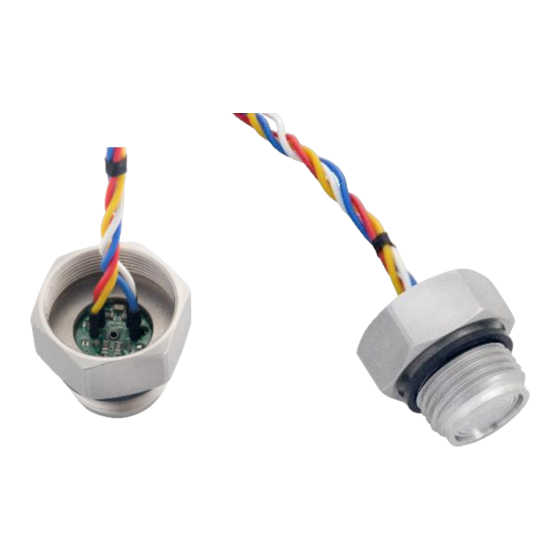

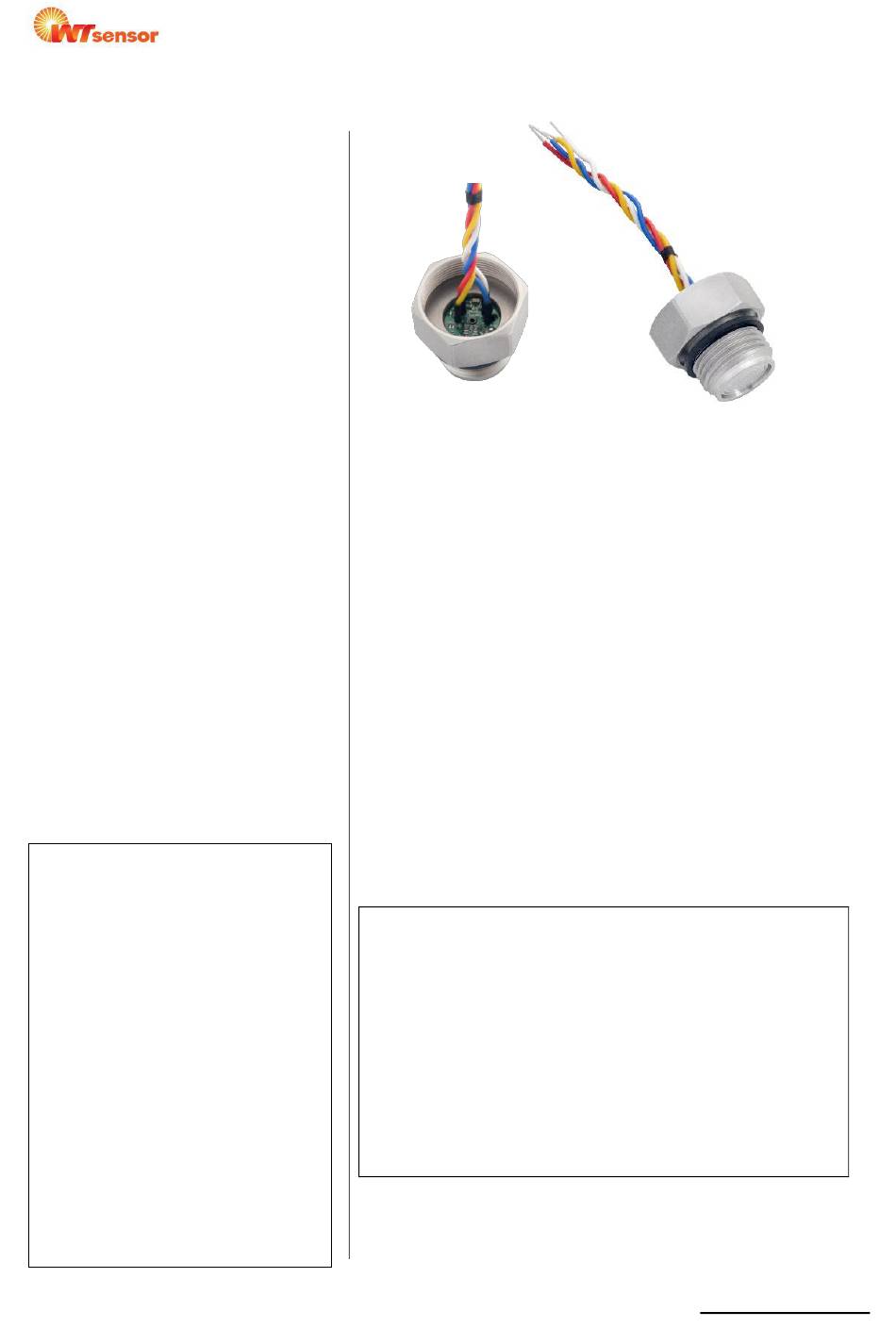

PC12Ⅱ Flush Diaphragm Pressure Sensor with thread

Features

■Flush diaphragm pressure sensor
with thread structure
■Imported highly reliable pressure
die
■A single time silicon oil isolated
filling technology
■
Compensation board filled with
glue for protection
moisture
■
All stainless
material
■
High accuracy, high reliability
■
Strong anti-interference, good
long-term stability
■18 months warranty period

Applications

■Medical, food industry
■Environmental protection,
chemical, coating
■Polyurethane equipment
■Industry standards supporting

Notes:

1 Do not touch the diaphragm
with hard objects, which may
cause damage to the diaphragm.
2 Please read the Instruction
manual of the product carefully
before installation and check the
relevant information of the
product.
3 Strictly follow the wiring method
for wiring; otherwise it may cause
product damage or other potential
faults.
4 Misuse of the product may
cause danger or personal injury.
Version：V10
against

Product overview

steel housing
technology. The perceived pressure is transmitted to the
pressure chip through the oil to generate an electrical signal,
and the compensation circuit corrects the pressure signal to
a linear pressure signal. The product adopts flat membrane
structure, easy to clean, high reliability, suitable for pressure
and liquid level measurement of viscous fluids such as glue.
make products of special structure and size. We have mature
batch production lines, which can ensure production tasks be
finished perfectly.
Notes:
1 Do not misuse documentation.
2 The information presented in this product sheet is for
reference only. Do not use this document as a product
installation guide.
3 Complete installation, operation, and maintenance
information is provided in the instructions of the product.
4 Misuse of the product may cause danger or personal
injury.
The PC12Ⅱ pressure sensor adopts food-grade oil filling
