WT sensor PC20 Quick Start Manual

Features
With constant current and constant
■
voltage excitation options
Imported highly reliable pressure die
■
Wide temperature compensation
■
Normalized output available
■
Compensation board filled with glue
■
for protection against moisture
Φ19mm standard OEM
■
All 316L material
■
High performance, all solid, high
■
reliability
18 months warranty period
■
Applications
Process control systems
■
Pressure calibration instruments
■
Refrigeration equipment and HVAC
■
control
Hydraulic systems and valves
■
Level measurement
■
Biomedical instruments
■
Ships and navigation
■
Aircraft and avionics systems
■
Weaponry
■
Notes:
1 Do not touch the diaphragm with hard
objects, which may cause damage to the
diaphragm.
2 Please read the Instruction Manual of the
product carefully before installation and
check the relevant information of the
product.
3 Strictly follow the wiring method for
wiring, otherwise it may cause product
damage or other potential faults.
4 Misuse of the product may cause danger
or personal injury.
PC20 Temperature and Pressure
Integrated Sensor
Product overview
PC20 temperature and pressure integrated sensor is
based on PC10 and mounted with built-in platinum
resistance to accomplish simultaneous measurement of
pressure and temperature. The temperature measurement
can meet the need for high-precision temperature
compensation of the product.

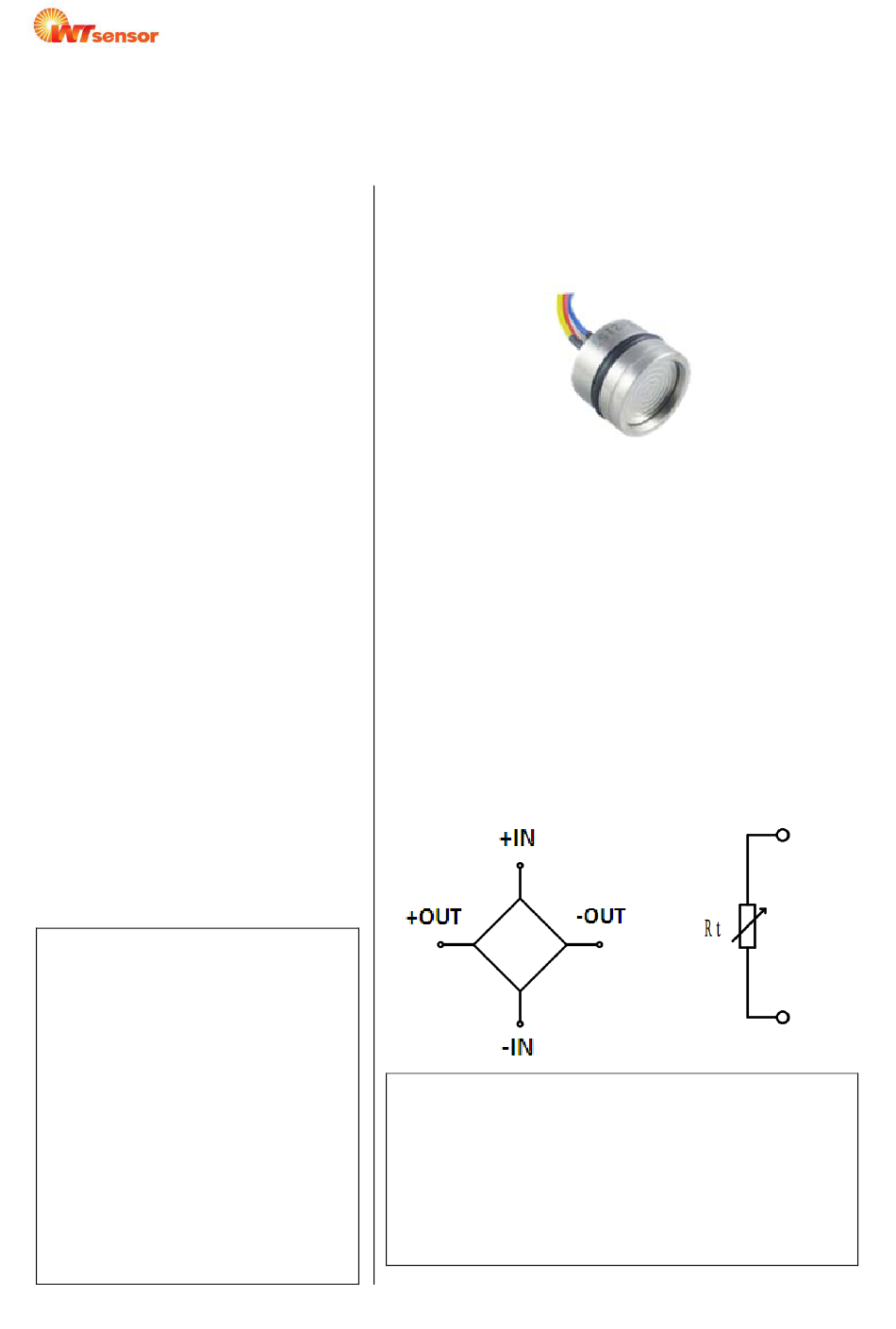

Equivalent circuit
(1) Pressure output
Notes:
1 Do not misuse documentation.
2 The information presented in this product sheet is for reference
only. Do not use this document as a product installation guide.
3 Complete installation, operation, and maintenance information
is provided in the instructions of the product.
4 Misuse of the product may cause danger or personal injury.
1
⑵ Temperature output
Platinum resistance
