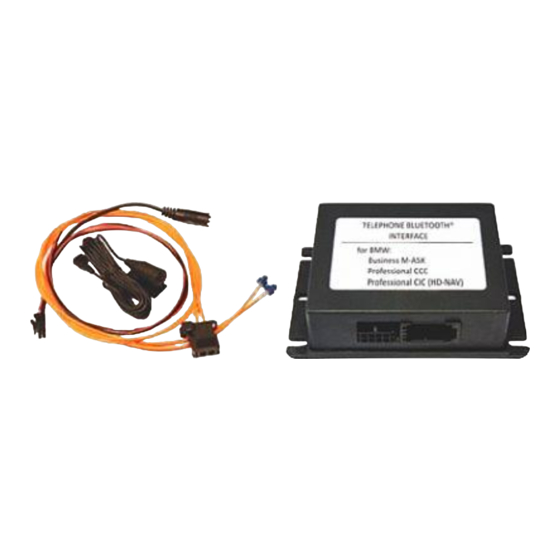

- Page 1 BMW01 for BMW with fibre optics (MOST®) Bluetooth®-hands-free phone kit fully integrated in the vehicle infotainment Version 12.07.2012, from SW 2.0.04...
-
Page 2: Table Of Contents
Removal navigation computer from BMW E90/91/92/93 with Professional Navigation 2.2. Connections 2.3. Activation of the interface 3. Interface operation 3.1. Pairing the blueLOGiC® Interface with a mobile phone 3.2. Loading of phone book 3.3. Setup, factory defaults, update 3.4. A2DP audio streaming through CD-changer emulation 4. Specifications 5. -
Page 3: Prior To Installation
1.1. Delivery contents HW ________ SW ________ Take down the SW-version and HW-version of the interface and store this manual for support purposes. Version 12.07.2012, from SW 2.0.04 BT-BMW01... -
Page 4: Checking The Compatibility Of Vehicle And Accessories
2.1. Removal of the navigation computer/radio The interface is installed on the backside of the navigation computer or radio unit. The following chapters show some exemplary removals of navigation computers. Version 12.07.2012, from SW 2.0.04 BT-BMW01... - Page 5 2.1.1. Removal navigation computer BMW E60/E61/63/64 with Professional Navigation Remove the cover Unscrew the two screws at the side ends Remove lower plastic Unscrew the 4 screws and pull out the navigation computer. Continue from chapter 2.2. Connections . Version 12.07.2012, from SW 2.0.04 BT-BMW01...
- Page 6 2.1.2. Removal navigation computer BMW E70/71 with Professional Navigation Remove the middle air vents. Unscrew the two screws at the side ends Unscrew the 4 Torx screws Continue from chapter 2.2. Connections . Version 12.07.2012, from SW 2.0.04 BT-BMW01...
- Page 7 2.1.3. Removal navigation computer BMW E90/91/92/93 with Professional Navigation Remove the air condition control panel; it is only fitted, not fixed into place. Remove the cover Unscrew the 6 screws Version 12.07.2012, from SW 2.0.04 BT-BMW01...
-
Page 8: Connections
+12V = CDC-emu on must NOT be installed. Install the microphone close to the driver. Connect the microphones 2 Pin AMP jack to the 2 Pin AMP jack bush of the blueLOGiC® harness. Version 12.07.2012, from SW 2.0.04 BT-BMW01... -
Page 9: Activation Of The Interface
After re-connecting the battery, lock the vehicle and wait for 5 -10 minutes. On some vehicles, it may happen that the blueLOGiC® interface is not recognized by the head unit. If the phone option is not available, after the activation as described above, take the following steps: 1. -
Page 10: Pairing The Bluelogic® Interface With A Mobile Phone
3.1. Pairing the blueLOGiC® Interface with a mobile phone Up to 10 mobile phones can simultaneously be paired with the blueLOGiC® interface. If a phone is paired, the oldest entry is automatically deleted. In some cases, it becomes necessary to put the vehicle in sleep mode to enable correct function of the 11 phone. -
Page 11: Setup, Factory Defaults, Update
3.4. A2DP audio streaming through CD-changer emulation When the CD-changer emulation of the blueLOGiC® interface is entered, it is possible to listen to music files on the factory sound system which are played by the mobile phone. The available options to control the play functions of the mobile phone depend very much on the mobile phone. -
Page 12: Specifications
10.5 – 14.8V DC Stand-by power drain <1mA Operation power drain 120mA Power consumption 1.8W Temperature range -30°C to +80°C Weight Dimensions (box only) B x H x T 106 x 30 x 71 mm Version 12.07.2012, from SW 2.0.04 BT-BMW01...
