Summary of Contents for blueLOGIC BT-MB01

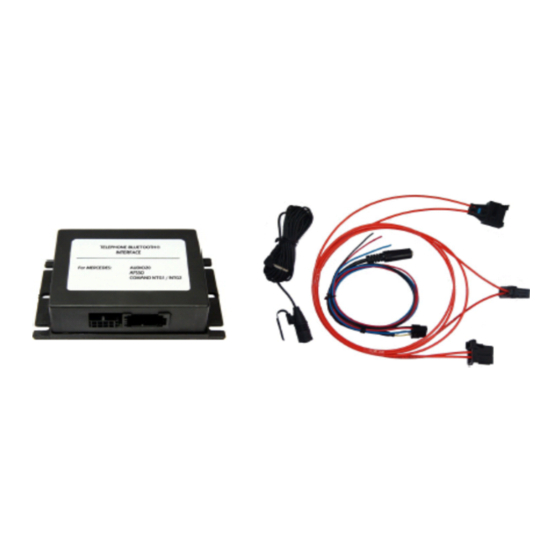

- Page 1 BT-MB01 for Mercedes Benz with MOST® and without factory telephone Bluetooth®-hands-free phone kit fully integrated in the vehicle infotainment Version 02.12.2010...
- Page 2 Removal of navigation/radio unit 2.2. Connections 2.3. Activation of the interface 3. Interface operation 3.1. Pairing the blueLOGiC® interface with a mobile phone 3.2. Loading of phone book 3.3. Setup, factory defaults, update 3.4. A2DP audio streaming through CD-changer emulation 4.
- Page 3 Limitations Factory telephone kit must be removed if installed Factory CD-changer factory CD-changer must must NOT be installed, if A2DP shall be used Version 02.12.2010 BT-MB01...
- Page 4 Information On devices with external audio gateway, e.g. NTG1, the fibre Interface Vehicle optical connector can be found Connector Connector as separate connector on the device’s backside. Version 02.12.2010 BT-MB01...
- Page 5 +12V = CDC-emu on NOT installed. Install the microphone close to the driver. Connect the microphones 2 Pin AMP jack to the 2 Pin AMP jack bush of the blueLOGiC® harness. 2.3. Activation of fibre optical ring and interface If the vehicle has no fibre optical component installed, the fibre optical ring is not activated.
- Page 6 3.1. Pairing the blueLOGiC® Interface with a mobile phone Up to 10 mobile phones can simultaneously be paired with the blueLOGiC® interface. If a phone is paired, the oldest entry is automatically deleted. In some cases, it becomes necessary to put the vehicle in sleep mode to enable correct function of the 11 phone.
- Page 7 3.3. Setup, factory defaults, update Settings of the blueLOGiC® interface can be changed by dialing certain codes in the vehicle telephone mode. Caller audio volume, Ringing tone volume and microphone sensitivity can be adjusted separately. The interface can be reset to factory defaults and updates of the Parrot chipset can be initiated.
- Page 8 Temperature range -30°C to +80°C Weight Dimensions B x H x T 106 x 30 x 71 mm Legal disclaimer: Mentioned company- and trademarks, as well as product names/codes are registered trademarks ® of their corresponding legal owners. Version 02.12.2010 BT-MB01...
