- Page 1 VEO-XCTRLG2 VIDEO DISTRIBUTION OVER IP H.265 Full HD over IP Video Extender Controller USER MANUAL 50-0434-0100 VEO-XCTRLG2...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PRECAUTIONS ........................3 1.1 Important Remark ..........................3 1.2 Important Safety Instructions ......................4 1.3 Cleaning ..............................4 PACKAGE CONTENTS ......................5 DESCRIPTION AND FEATURES ..................5 3.1 Main Features ............................6 INSTALL & CONNECT ......................7 4.1 Rack mounting ............................ -
Page 3: Precautions
1. PRECAUTIONS 1.1 IMPORTANT REMARK The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. -
Page 4: Important Safety Instructions
1.2 IMPORTANT SAFETY INSTRUCTIONS Read these instructions. 12. Unplug the device during lightening sorts or when unused for long periods Keep these instructions. of time. Heed all warnings. Refer servicing qualified Follow all instructions. personnel. Servicing is required when Do not use this device near water. the device has been damaged in any Clean only with dry cloth. -
Page 5: Package Contents

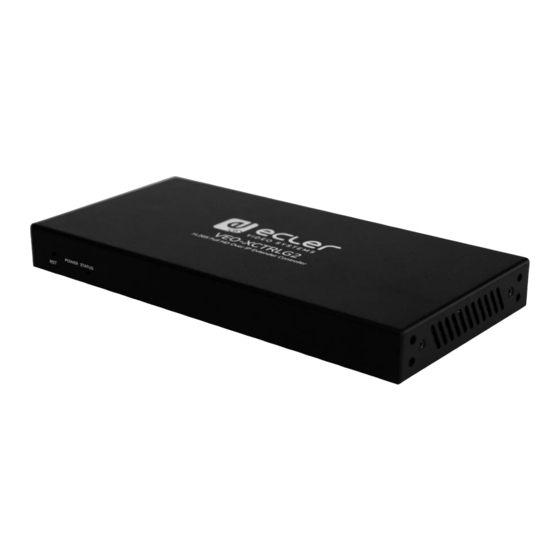

• 3. DESCRIPTION AND FEATURES VEO-XCTRLG2 is a controller module that allows the user to manage and operate VEO- XTI1CG2 and VEO-XRI1CG2 video over IP devices in large multipoint to multipoint systems. It mounts two dedicated LAN ports to host independent Control and Video networks. -
Page 6: Main Features
3.1 MAIN FEATURES • Easy to create project, control and manage the system. • Setup wizard to easy assign devices to a project including Auto, DHCP and Manual IP configurations. HTTPS, SSH, SFTP security compatible. • • Built-in Web GUI control interface, supporting Drag & Drop operations. •... -
Page 7: Install & Connect
4. INSTALL & CONNECT 4.1 RACK MOUNTING This product can be mounted in a standard rack. Stack two products on top of each other. Then use the included screws to fix two 1U mounting ears on the products. Place two pairs of products together with each other using the provided screws. Fasten screws between each pair to mount four products together. -
Page 8: Connection Diagram
IT staff how to properly set the Multicast products connected to the local network switch. One of the advantages in the use of VEO-XCTRLG2 is the possibility to separate the Video Network to the Control Network. In this way, the consistent multicast traffic generated by the video over IP extenders can be isolated from the control traffic generated by the embedded or by the third-party control system. -
Page 9: Web Connection And Settings
4.3.1 WEB CONNECTION AND SETTINGS. The default IP address of VEO-XCTRLG2 for its Control Port is 192.168.0.225 if there is no DHCP server in the system. Once a VEO-XCTRLG2 is connected to a network with other VEO-XTI1CG2 and VEO-XRI1CG2, the controller will act as manager of the network and will automatically assign addresses to the various devices. -
Page 10: Wizard Setup
4.4.1 WIZARD SETUP Once logged in, if there’s no existing project, this message will appear to help the user to configure the system through the wizard procedure. Then click Next to advance to the next page. If the system has already been configured previously, clicking “Close” will take the user directly to the system control page. - Page 11 It will then be possible to decide whether to add all the connected devices to the new project (brand new installation) or to add them selectively in case of changes to an existing system. 1. If you select “Automatically add Encoders and Decoders to Project” and click the “Scan”...
- Page 12 The procedure is identical to the previous one, with the only difference that in this case the IP addresses are assigned by a DHCP server. There will be no need to set up the Video LAN port settings of the VEO-XCTRLG2 controller box in Auto or DHCP as they will be automatically configured by the...
- Page 13 4.4.1.3 STATIC IP MODE BY MANUAL SETTINGS 1. Select this option to manually enter the IP address. 2. Press Next and then manually set the IP address, subnet mask and gateway of the Video LAN and then press Next. It’s strongly recommended to use different IP network domain from Control LAN port.
-
Page 14: Start-Up And Operation
5. START-UP and OPERATION 5.1 WEB FUNCTIONS AND OPERATION After setting up VEO-XCTRLG2 and assigning the VEO-XTI1CG2 and VEO-XRI1CG2 devices connected to the network to a given project, the following menus of the web settings page will let the user manage and operate different aspects and functionalities concerning Transmitter and Receiver operation as explained in the next chapters. -
Page 15: Videowall Control
5.1.3 VIDEOWALL CONTROL On this page, the user can select different videowalls and configurations that have been set up on the “Video Wall Management” page (refer to chapter Videowall Management for further information) by clicking the drop-down boxes labelled “Video Wall Selection” and “Configuration Selection”. -
Page 16: Project
5.1.4 PROJECT This section allows the user to create a Project. A. Current Devices: Devices that have been added to the current project. B. Unassigned Devices: Devices not added to the current project. Click “Display ID” to display the ID or PATTERN of the Receivers. Click “Save Project”... -
Page 17: Encoders (Transmitters)
5.1.5 ENCODERS (TRANSMITTERS) On this page, the user can setup the current Transmitter as required. A. ID: The ID of the current device. (Note: ID is never duplicated.) B. Name: The name of the current device. (Note: Name can’t never be duplicated.). MAC Address: The MAC Address of the current device. - Page 18 A. Name: The name of the current device. (Note: Name can’t never be duplicated.). B. Update ID: The ID of the current device. (Note: ID is never duplicated.) C. Front Panel Power LED Flash: This parameter selects the status of the Front Panel Leds: •...
-
Page 19: Decoders (Receivers)
5.1.6 DECODERS (RECEIVERS) On this page, the user can setup the current Receiver as required. A. ID: The ID of the current device. (Note: ID is not duplicated.). B. Name: The name of the current device. (Note: Name is not duplicated.). MAC Address: The MAC Address of the current device. - Page 20 A. Name: The name of the current device. (Note: Name can’t never be duplicated.). B. Update ID: The ID of the current device. (Note: ID is never duplicated.) C. Video Ouput: This parameter tuns off the HDMI output. D. Video Mute: This parameter shows a black screen instead of the actual content. E.
-
Page 21: Linked Signal Routing
L. Display Product ID: this parameter shows the current Product ID on the screen. M. Network Routing: lets the user assign between Unicast and Multicast network topology. N. Rotation: This parameter will rotate the output image from 0º to 270º. O. - Page 22 RS-232 command in, to RS-232 out). This will allow third party control systems the ability to send an RS-232 or IP command to the VEO-XCTRLG2 and a RS-232 command to be sent out of a Receiver or Transmitter as a result.
-
Page 23: Videowall Management
5.1.8 VIDEOWALL MANAGEMENT On this page, the user can create and configure videowall as required. • Each Receiver can be set into a part of a videowall layout. • Each system can contain multiple video walls with different sizes. • Each video wall can be assigned to different screens and different layouts that range from 1x2 up to 9x9. - Page 24 Select the video wall that you want to configure on the “Video Wall List”, then click “Assign Decoder” to enter the Receiver assignment page. Click each screen to select the corresponding Receiver device, then click “Apply”. A Receiver can only be assigned to one videowall.
- Page 25 Click “Class Configuration” to enter the class configuration page, then click each screen to select the corresponding Class as required (the same class name will form a video wall, you can create a regular or irregular video wall by Class Configuration).
-
Page 26: Users
5.1.9 USERS On this page, new user accounts can be added. The controller web GUI can be setup with different users each with their own control privileges. This will allow the user to create a unique login and feature settings such as inputs and outputs that each person has access Click “New User”... -
Page 27: Controller Settings
On this page, the user can configure communication and network settings for the control and video LAN networks as required. General Settings: The section shows a summary of the basic VEO-XCTRLG2 settings. Communication parameters such as IR Control, Telnet, Telnet Port, SSH, SSH Port, Web Page Access, HTTPS or RS-232 baudrate can be configured clicking on “Update”... - Page 28 Control Network: This section allows the user to set the network configuration and DHCP parametters for the VEO-XCTRLG2 “Control LAN” port. Video Network: This section allows the user to set the network configuration for the VEO-XCTRLG2 “Video LAN” port.
-
Page 29: Firmware Update
5.1.11 FIRMWARE UPDATE On this page, the user can separately update the firmware of any Transmitter/Receiver by clicking the corresponding “Update” button on the right or update all the firmware of Transmitter/Receiver simultaneously by clicking the corresponding “Update All” button. There is also the possibility to update the Second Stream chip firmware by clicking the “Update SS Firmware”... -
Page 30: Password Update
5.1.12 PASSWORD UPDATE On this page, you can change the password. Please note that after changing, it will skip to the Web browser home page or the Web GUI login interface automatically. You need to log in the Web GUI again with the new password. -
Page 31: Panel And Ir Functions
6. PANEL and IR FUNCTIONS 6.1 FRONT PANEL RESET Button: Press and hold this button (about 10 seconds) until Status LED starts flashing: the controller will be reset automatically. POWER LED: The red LED will light on when the controller is powered on. STATUS LED: The status LED will flash in yellow-green every 1 second until the controller boots up is complete and Control LAN is ready, then it becomes solid green. -
Page 32: Ir Receiver Pin Definition
6.3 IR RECEIVER PIN DEFINITION... -
Page 33: Technical Data
7. TECHNICAL DATA 7.1 TECHNICAL SPECIFICATIONS VEO-XCTRLG2 DEVICE CONTROL Control Connectors RJ-45, Euroblock, Jack 3.5mm Control Protocols Web, TCP, RS-232 Status Indicators Power LED (Red), Status LED (Green) PASS-THROUGH CONTROL Pass-through Connectors Euroblock, Jack 3.5mm Pass-through Protocols RS-232, IR NETWORK... -
Page 34: Mechanical Diagram
7.2 MECHANICAL DIAGRAM... - Page 35 NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications. For technical queries contact your supplier, distributor or complete the contact form on our website, Support / Technical requests. Motors, 166‐168 -08038 Barcelona ‐ Spain‐(+34) 932238403 information@ecler.com www.ecler.com...
