SLA SERIES
SLA 3003/ 3004/ 3006/ 3008/ 3010/ 3013
SLA 3104/3106
professional power amplifiers I owners manual
www.sonodyne.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SLA Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sonodyne SLA Series

  • Page 1 SLA SERIES SLA 3003/ 3004/ 3006/ 3008/ 3010/ 3013 SLA 3104/3106 professional power amplifiers I owners manual www.sonodyne.com...
  • Page 2: Important Safety Instructions

    SLA SERIES page 1...
  • Page 3: Power Supply/Power Cord

    (such as vases, bottles or glasses) containing liquids which might spill into any openings. If any liquid such as water seeps into the device, turn off the power immediately and unplug the power cord from the AC outlet. Then have the device inspected by qualified Sonodyne service personnel.
  • Page 4 (vents). If this happens, turn off the power immediately and unplug the power cord from the AC outlet. Then have the device inspected by qualified Sonodyne service personnel. • Do not rest your weight on the device or place heavy objects on it, and avoid use excessive force on the buttons, switches or connectors.
  • Page 5: Initial Operation

    • Always turn the power off when the device is not in use. • CONNECTORS • XLR-type connectors are wired as follows (IEC60268 standard): pin 1: ground, pin 2: hot (+), and pin 3: cold (-). SLA SERIES page 4...
  • Page 6 Heavy-duty mains cable with 3 pin 15A plug is built into the unit to prevent loose connection caused by detachable mains cable. j. Heavy-duty steel chassis with handles allow the amplifier to be slid in or out of a rack. SLA SERIES page 5...
  • Page 7: Top View

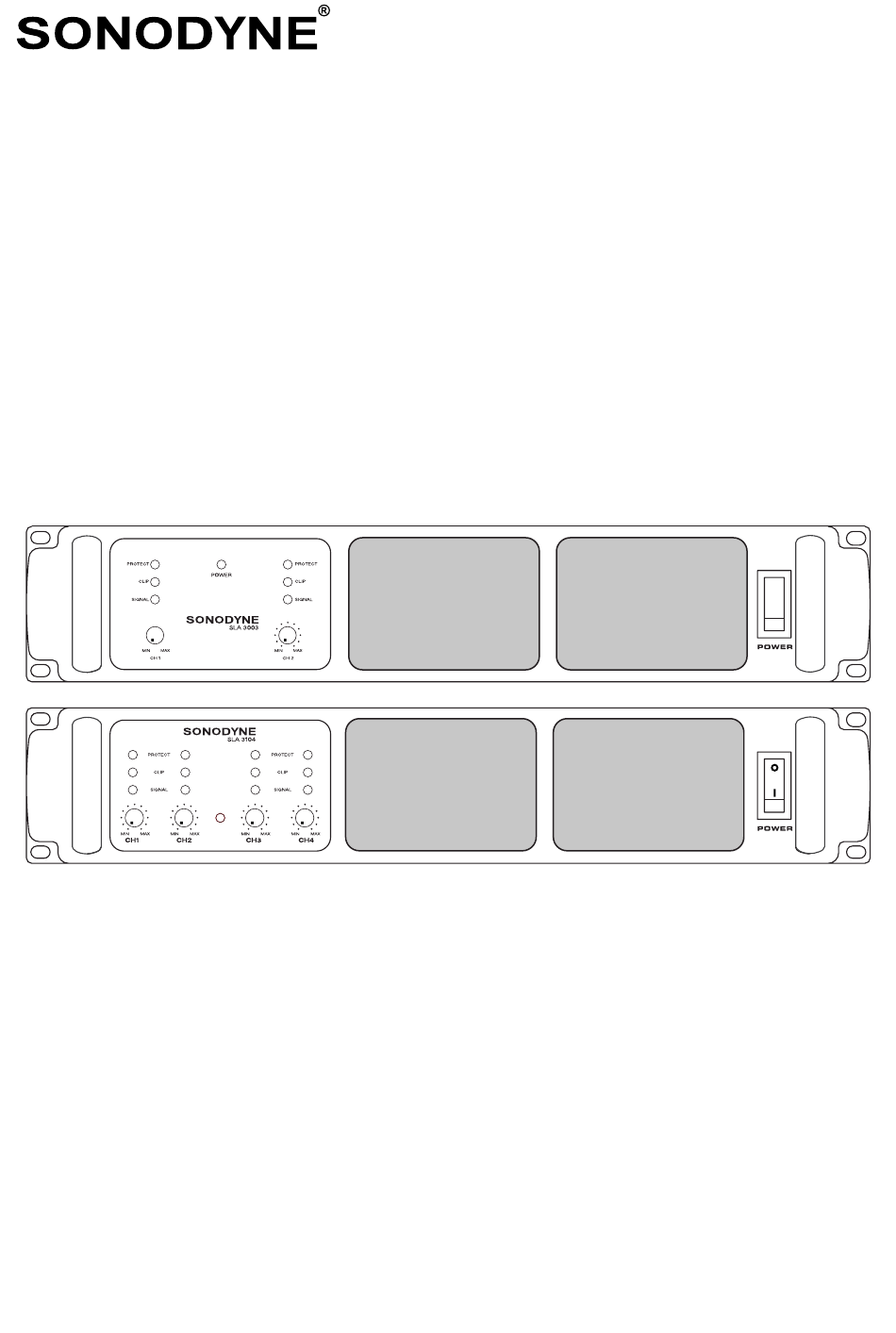

    FRONT & TOP VIEWS FRONT VIEW: SLA 3003/ 3004/ 3006/ 3008/ 3010/ 3013 FRONT VIEW: SLA 3104/ 3106 TOP VIEW 430mm NOTE: There should be no blockage in the air inlet and outlet SLA SERIES page 6...
  • Page 8: Front Panel

    4. SIGNAL LED Lights up at 1W output power 5. POWER SWITCH Rocker type switch to turn the amplifier on or off. REAR PANEL SLA 3003/ 3004/ 3006 SLA 3008/ 3010 3010/ 3013 SLA SERIES page 7...
  • Page 9 Use only the correct type of fuse for replacement. This is a slow-blow or time- delay type fuse. The fuse rating is marked on the back-panel. 9. MAINS CABLE This is a 3 pin mains cable with 15A plug. Connect this to an earthed 15A mains utility socket SLA SERIES page 8...
  • Page 10: Operation

    LINK terminal. 4.4 OUTPUT CONNECTION The speakers are connected using either binding posts or twist-lock type sockets. For details please refer to the section on back panel above SLA SERIES page 9...
  • Page 11 MODE SWITCH SETTING DIAGRAMS SLA 3003/ 3004/ 3006 MODE SWITCH DUAL MODE SWITCH MONO MODE SWITCH BRIDGE SLA SERIES page 10...
  • Page 12 MODE SWITCH SETTING DIAGRAMS SLA 3008/ 3010/ 3013 MODE SWITCH MODE SWITCH DUAL MONO MODE SWITCH BRIDGE SLA SERIES page 11...
  • Page 13: Pin Connection Diagrams

    UNBALANCED SOCKET INPUT INPUT PIN1=GND PIN1=GND PIN2=HOT PIN2=HOT PIN3=COLD PIN3=COLD LINK LINK 2. TWIST-LOCK SPEAKER CONNECTORS TWIST-LOCK CONNECTOR WIRING Speaker Speaker DUAL/MONO/PARALLEL BRIDGE Speaker Speaker 3. TWO-WAY BINDING POST CONNECTORS DUAL/MONO BRIDGE 4. GROUNDING Mode Switch (GROUNDING) SLA SERIES page 12...
  • Page 14: Protect Led

    In the event of overload, DC at output, or overheat, the power amplifier is muted to protect the unit and the LED turns on. 5. POWER SWITCH Rocker type switch to turn the amplifier on or off. REAR PANEL SLA SERIES page 13...
  • Page 15: Mode Switch

    Use only the correct type of fuse for replacement. This is a slow-blow or time-delay type fuse. The fuse rating is marked on the back-panel. 12. MAINS CABLE This is a 3 pin mains cable with 15A plug. Connect this to an earthed 15A mains utility socket SLA SERIES page 14...
  • Page 16 Connect the balanced output of your source equipment to these inputs with a 3 pin XLR female to XLR male cable. For details please refer to the section on back panel above 4.4 OUTPUT CONNECTION The speakers are connected using twist-lock type sockets. For details please refer to the section on back panel above. SLA SERIES page 15...
  • Page 17 MODE SWITCH SETTING DIAGRAMS SLA 3104/3106 MODE SWITCH MODE SWITCH DUAL MONO MODE SWITCH BRIDGE SLA SERIES page 16...
  • Page 18: Specifications

    461 x 482 x 94 WEIGHT 17.5 18.5 CE, BIS IS616:2017 CE, BIS IS616:2017 CE, BIS IS616:2017 CE, BIS IS616:2017 AGENCY APPROVALS IEC60065:2014/ IEC60065:2014/ IEC60065:2014/ IEC60065:2014/ IEC62368-1 IEC62368-1 IEC62368-1 IEC62368-1 Due to continuous improvements, all specifications are subject to change SLA SERIES page 17...
  • Page 19 DIMENSIONS (WxDxH) mm 396 x 482 x 94 396 x 482 x 94 WEIGHT 20.5 CE, BIS IS616:2017 IEC60065:2014/ CE, BIS IS616:2017 IEC60065:2014/ AGENCY APPROVALS IEC62368-1 IEC62368-1 Due to continuous improvements, all specifications are subject to change SLA SERIES page 18...
  • Page 20 CE, BIS IS616:2017 IEC60065:2014/ CE, BIS IS616:2017 IEC60065:2014/ AGENCY APPROVALS IEC62368-1 IEC62368-1 Due to continuous improvements, all specifications are subject to change SONODYNE, India • H.O.: 98 NB Block E New Alipore, Kolkata 700053 sonodyneofficial SonodyneMusic sonodyneofficial +91 9830855260 response@sonodyne.com...
