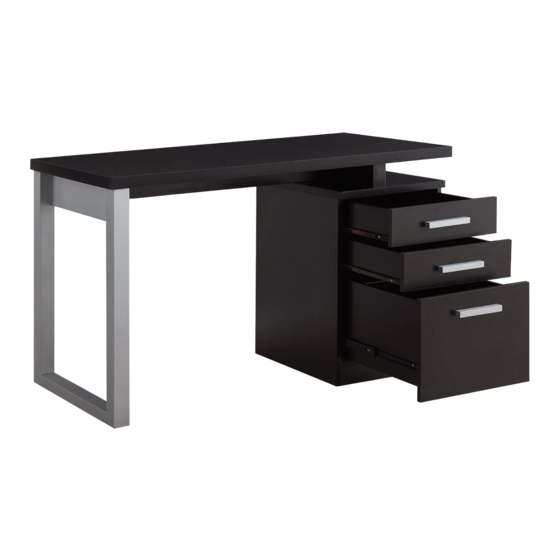

BRICK OSCESDSK 202704 Assembly Instructions Manual

Necessary tools/Outils nécessaires
Glue not included ( We recommend to apply some glue into holes before inserting wood dowels .)
Colle non inclus (Nous vous recommandons d'appliquer quelques gouttes de colle dans les trous avant d'introduire les
chevilles de bois.)

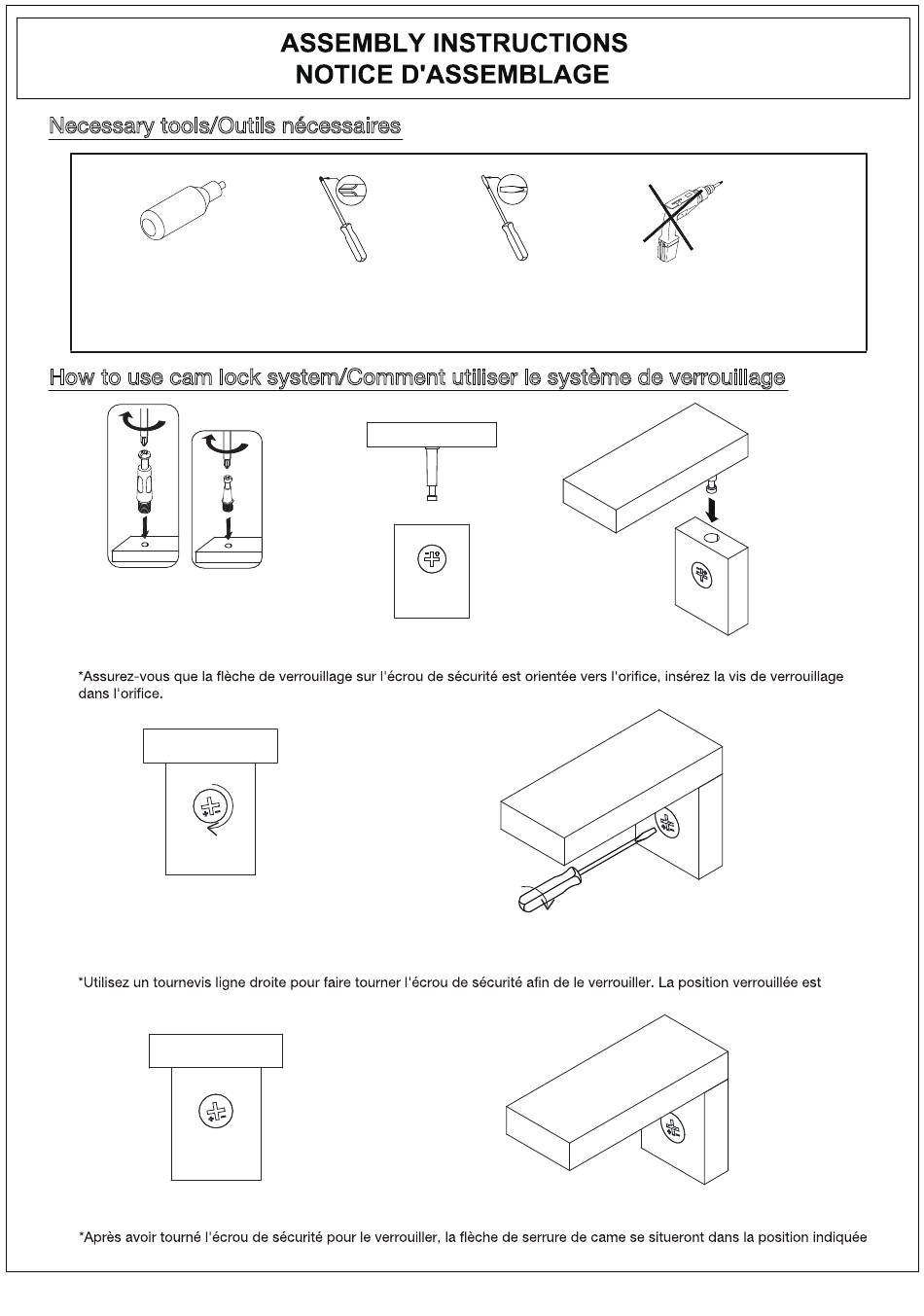

How to use cam lock system/Comment utiliser le système de verrouillage
*Screw in cam post and tighten in place.
*Visser le montant de came et serrer en place.
*Ensure that the cam lock arrow is pointed to the hole, align the cam lock screw to the hole of the cam lock case.
Locked
Desbloqueado
*Use a straight edge screwdriver to turn cam lock case until it is locked.Locked position is approximately 1/2 turn(210°)
clock-wise.
environ 1/2 tour (210°) à la droite.
*After turnning the cam lock case to the locked position,the cam lock arrow will be located in the position shown above.
ci-dessus.
Unlocked
Déverrouillé
#1
Nº1
#2
Nº2
#3
Nº3
