TruVision NVR 22 (S/P) Quick Start
Guide

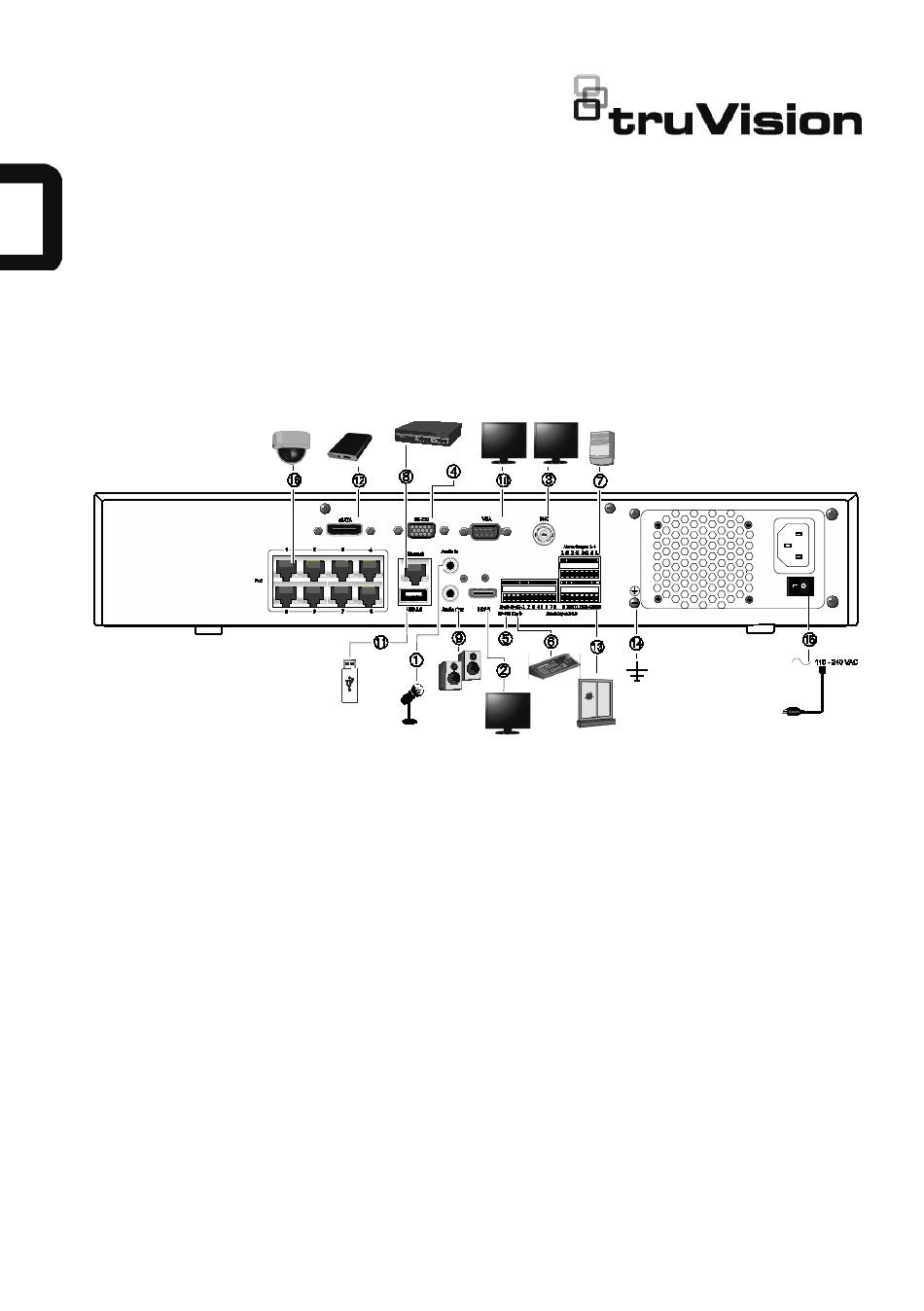

Figure 1: Back panel connections (TVN 22S shown)
1. Connect one audio input to RCA connectors.
2. Connect to an HDTV. The HDMI connection
supports both digital audio and video.
3. Connect one CCTV monitor (BNC-type
connectors).
4. Connect to a RS-232 device.
5. RS-485 port not used.
6. Connect to a keypad (KTD-405 shown).
7. Connect up to four alarm relay outputs.
8. Connect to a network (RJ45).
9. Connect to speakers for audio output.
Default IP address: 192.168.1.82
P/N 1073193-EN • REV J • ISS 19JUL21
10. Connect to a VGA monitor.
11. Universal Serial Bus (USB). Connect to an
additional device such as a USB mouse,
CD/DVD burner, or USB HDD.
12. Connect to an optional eSATA device such as
HDD, CD/DVD-RM.
13. Connect up to 16 alarm inputs (depending on
model).
14. Connect to ground.
15. Connect to a power cord.
16. 8/16 PoE ports (depending on model). (TVN 22S
only)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NVR 22S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TruVision NVR 22S

  • Page 1 TruVision NVR 22 (S/P) Quick Start Guide Figure 1: Back panel connections (TVN 22S shown) 1. Connect one audio input to RCA connectors. 10. Connect to a VGA monitor. 2. Connect to an HDTV. The HDMI connection 11. Universal Serial Bus (USB). Connect to an supports both digital audio and video.
  • Page 2 Menu: Enter/exit the main menu. buttons Search: In live view, enter the advanced search menu. IR receiver Not used. Front panel lock You can lock or unlock the front panel with a key (provided). TruVision NVR 22 (S/P) Quick Start Guide...
  • Page 3 Press once to enter quick archive mode. Press twice to start archiving. Indicator blinks green when data is being written to backup device. USB Interfaces Universal Serial Bus (USB) ports for additional devices such as a USB mouse, CD/DVD burner, and USB Hard Disk Drive (HDD). TruVision NVR 22 (S/P) Quick Start Guide...
  • Page 4: Package Contents

    12. Close: Close the toolbar. 1. Connect all the devices required to the Package contents back panel of the recorder. See Figure 1 The TruVision NVR 22(S/P) (model TVN 22 on page 1. (S/P) is shipped with the following items: Basic connections: •...
  • Page 5: Operating The Recorder

    • TVK-800 keypad properly: Server port and RTSP port. • Web browser control • Software (TruVision Navigator, TVRMobile or other video management or integration software platforms) TruVision NVR 22 (S/P) Quick Start Guide...
  • Page 6: Live View Mode

    • Right-click the mouse and select Menu from the pop-up menu. The main menu screen appears. Move the Configures user settings. mouse over a command icon in the menu toolbar and click to select it. View system information. TruVision NVR 22 (S/P) Quick Start Guide...
  • Page 7: Specifications

    TVN 22 / 442 × 371 × 74 mm TVN 22S TVN 22P 442 x 442 x 92 mm Weight (without HDD): TVN 22 / ≤ 5 kg TVN 22S ≤10 kg TVN 22P TruVision NVR 22 (S/P) Quick Start Guide...
  • Page 8: Legal And Regulatory Information

    © 2021 Carrier. All rights reserved. Specifications subject to change покупката на еквивалентен нов продукт или да го предадете на without prior notice. TruVision names and logos are a product специално определените пунктове за събиране на такова старо brand of Aritech, a part of Carrier.
  • Page 9 W Unii Europejskiej produkty oznaczone tym symbolem mogą być Kelvinstraat 7, 6003 DH Weert, The Netherlands. usuwane tylko jako posegregowane odpady komunalne. Dla https://firesecurityproducts.com zapewnienia właściwej utylizacji, należy zwrócić ten produkt do dostawcy przy zakupie ekwiwalentnego, nowego urządzenia albo TruVision NVR 22 (S/P) Quick Start Guide...
  • Page 10 γράμματα για να δηλώσουν το κάδμιο (Cd), τον μόλυβδο (Pb), ή τον 2013/56/EU & 2006/66/EC (battery directive): υδράργυρο (Hg). Για την κατάλληλη ανακύκλωση επιστρέψτε την μπαταρία στον προμηθευτή σας ή σε καθορισμένο σημείο συλλογής. Για περισσότερες πληροφορίες δείτε: www.recyclethis.info. Eliminacion de baterias Este producto contiene una batería que no se pueda eliminar como Battery Disposal basura normal sin clasificar en la Unión Europea.
  • Page 11 A bateria é toplama noktlarına atınız. Daha fazla bilgi için: www.recyclethis.info. identificada por meio de este símbolo, que pode incluir a rotulação para indicar o cádmio (Cd), chumbo (Pb), ou o mercúrio (hg). Para TruVision NVR 22 (S/P) Quick Start Guide...
