Syris SYRD245-1N-M User Manual

2.45 ghz rfid network reader
Hide thumbs

Advertisement

Quick Links

Download this manual

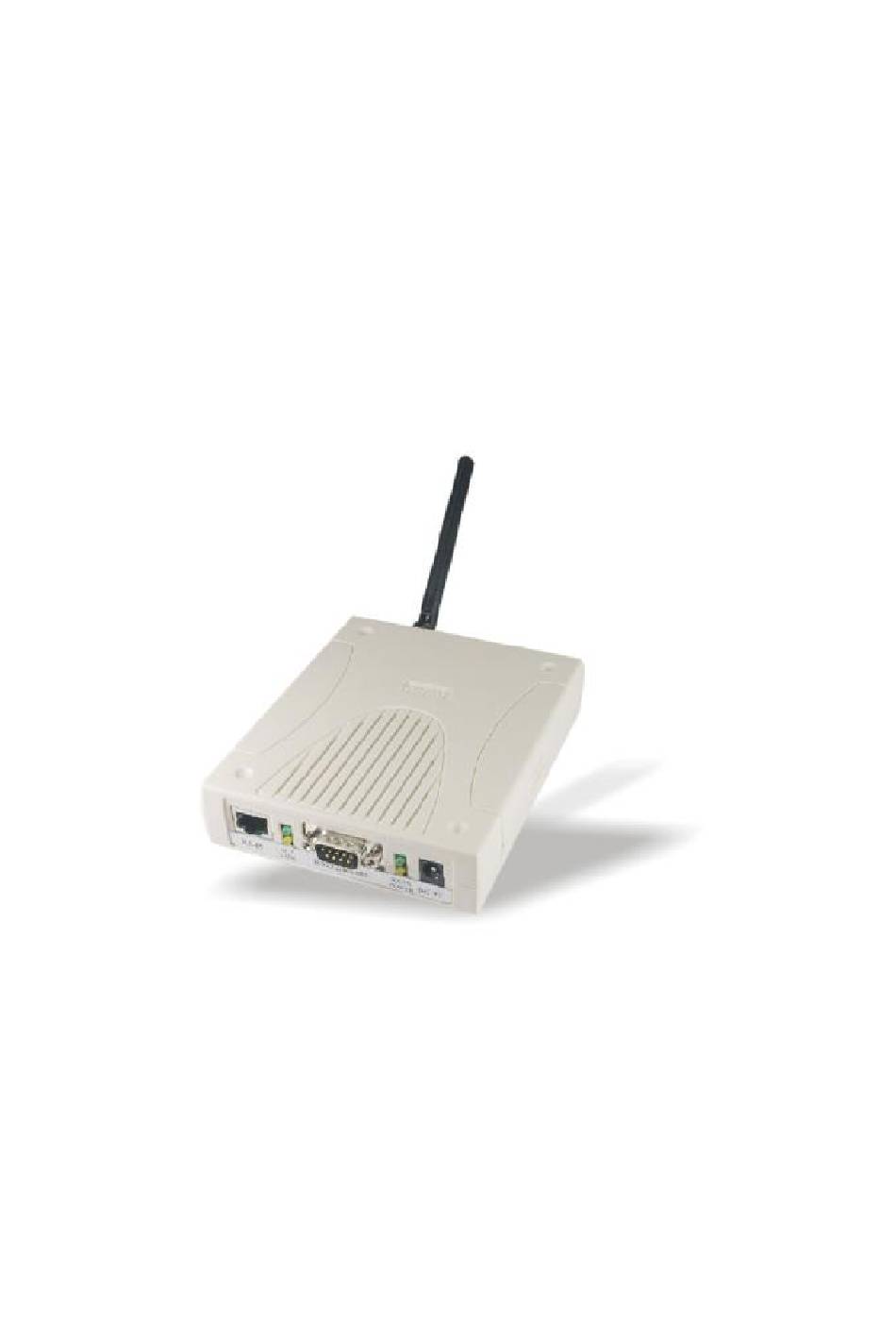

SYRD245-1N-M
2.45 GHz RFID Network Reader
User Manual
Version 1.8
2019/01/22

Advertisement

loading
Need help?

Need help?

Do you have a question about the SYRD245-1N-M and is the answer not in the manual?

Questions and answers

Related Manuals for Syris SYRD245-1N-M

Summary of Contents for Syris SYRD245-1N-M

  • Page 1 SYRD245-1N-M 2.45 GHz RFID Network Reader User Manual Version 1.8 2019/01/22...
  • Page 2 SYRD245-1N-M active RFID Network Reader User Manual Ⅰ. Product Specification Communication 2.45 GHz Support read and write Frequency 2.40~2.48 GHz Channel Address 65536 RSSI 0-255 0-255 Programmable Set Parameter Multi-LED visual indication Ethernet 10/100 base-T Ethernet (RJ-45) RS-232 RX, TX...
  • Page 3 SYRD245-1N-M active RFID Network Reader User Manual Ⅱ. The Diagram of the System Connection SYRD245-1N-M Network Reader can connect with 3 different interfaces： RJ-45, RS-485 or RS-232. SYRD245-1N-M connection to PC...
  • Page 4 SYRD245-1N-M active RFID Network Reader User Manual Ⅲ. Install Network Enabler Administrator Execute install program in SYRIS CD: SYRIS Xtive CD-ROM\SYRD245-1\Driver\ Network Enabler Administrator 2.8 Setup.exe Execute Network Enabler Administrator program after install.
  • Page 5 SYRD245-1N-M active RFID Network Reader User Manual Ⅳ. Setup Network Enabler Administrator Click on Configuration from the menu bar, and then select Broadcast Search from the drop-down menu. A Searching window will open, showing that the program is searching for...
  • Page 6 SYRD245-1N-M active RFID Network Reader User Manual After the search is finished, all network module found will be shown in the right panel of the Configuration window. If you locate more than one module connected to this network, refer to the MAC address on the module(s) to determine which modules are the ones you wish to configure.
  • Page 7 The Configuration window has 9 tabs: Basic, Network, Serial, Operating Mode, Accessible IPs, Auto Warning, IP Address Report, Password and Digital IO. SYRIS SYRD245-1N series will use 3 tabs in network module. (Network, Serial and Operating Mode), we will show more detail with these parts below.
  • Page 8 SYRD245-1N-M active RFID Network Reader User Manual Serial: You should set up network module serial parameters as below diagram.
  • Page 9 SYRD245-1N-M active RFID Network Reader User Manual Operating Mode: Three different Socket Modes and one real COM modes are available: TCP Server, TCP Client, and UDP Server/Client. The main difference between the TCP and UDP protocols is that TCP guarantees delivery of data by requiring the recipient to send an acknowledgement to the sender.
  • Page 10 SYRD245-1N-M active RFID Network Reader User Manual Ⅴ. Real COM mode Ø Setting Operating Mode Select Modify and chose COM port to change operating mode. Change operating mode to “Real COM Mode” and press “OK” to submit the settings.
  • Page 11 SYRD245-1N-M active RFID Network Reader User Manual Ø COM Mapping Broadcast Search for network module on the network. Select the COM Mapping in function group. Add the target to which you would like to map COM ports.
  • Page 12 SYRD245-1N-M active RFID Network Reader User Manual The network modules list that appears will be based on the Broadcast Search on the Configuration. Select the network modules to which you want to map COM ports. System will auto match a COM port with selected network modules.
  • Page 13 SYRD245-1N-M active RFID Network Reader User Manual Select the COM Number. Those “in use”, “assigned” COM ports will also be indicated in this dialog window. Set COM port parameter settings as below diagram.
  • Page 14 The host computer will not be able to use the COM port until after selecting Apply Change. 10. When you finished COM Mapping, you can execute SYRIS Xtive Utility program to read TAG and set parameters.
  • Page 15 SYRD245-1N-M active RFID Network Reader User Manual Ø Remove COM Mapping Select Remove Target and Apply Change to remove COM Mapping with host.
  • Page 16 SYRD245-1N-M active RFID Network Reader User Manual Ⅵ. TCP Server Mode In TCP Server mode, SYRD245-1N-M reader provides a unique IP:Port address on a TCP/IP network. SYRD245-1N-M reader wait passively to be contacted by the host computer, allowing the host computer to establish a connection with and get data from the serial device.
  • Page 17 SYRD245-1N-M active RFID Network Reader User Manual Change operating mode to “TCP Server Mode” and press “OK” to submit the settings.
  • Page 18 SYRD245-1N-M active RFID Network Reader User Manual When you finished change operating mode, you can execute SYRIS Xtive demo program to read TAG. (SYRIS Xtive CD-ROM\SYRD245-1\Utility\XtiveDemo.exe) Select and modify correct IP address to communicate with Reader. (You can communicate multi-reader at the same time)
  • Page 19 SYRD245-1N-M active RFID Network Reader User Manual Field Introduction: a. UID: Tag’s identification number. b. RSSI: Received Signal Strength Indication (0-255). Reading range and RSSI are inverse proportion. c. LQI: Link quality indicator (0-255). d. DI: TAG status and indicator.
  • Page 20 SYRD245-1N-M active RFID Network Reader User Manual Select “View Select TAG” tab to get target TAG information.
  • Page 21 SYRD245-1N-M active RFID Network Reader User Manual Ⅶ. TCP Client Mode In TCP Client mode, SYRD245-1N-M reader can actively establish a TCP connection to a pre-defined host computer when serial data arrives. Setting Operating Mode Select Modify and chose COM port to change operating mode.
  • Page 22 SYRD245-1N-M active RFID Network Reader User Manual Change operating mode to “TCP Client Mode” and “Destination Host” IP address than press “OK” to submit the settings.
  • Page 23 SYRD245-1N-M active RFID Network Reader User Manual When you finished change operating mode, you can execute SYRIS Xtive demo program to read TAG. (SYRIS Xtive CD-ROM\SYRD245-1\Utility\XtiveDemo.exe) Select “TCP Client” Tab and starting read TAG will receive Tag information from reader.
  • Page 24 SYRD245-1N-M active RFID Network Reader User Manual Ⅷ. UDP mode Compared to TCP communication, UDP is faster and more efficient. In UDP mode, you can multicast data from the SYRD245-1N-M to multiple host computers, and the serial device can also receive data from multiple host computers, making this mode ideal for message display applications.
  • Page 25 SYRD245-1N-M active RFID Network Reader User Manual Change operating mode to “UDP Mode” and “Destination” IP address than press “OK” to submit the settings.
  • Page 26 SYRD245-1N-M active RFID Network Reader User Manual When you finished change operating mode, you can execute SYRIS Xtive demo program to read TAG. (SYRIS Xtive CD-ROM\SYRD245-1\Utility\XtiveDemo.exe) Select “UDP” Tab and starting read TAG will receive Tag information from reader.
  • Page 27 Changes or modifications not expressly approved by SYRIS Technology Corp. Could void the user's authority to operate this equipment.
