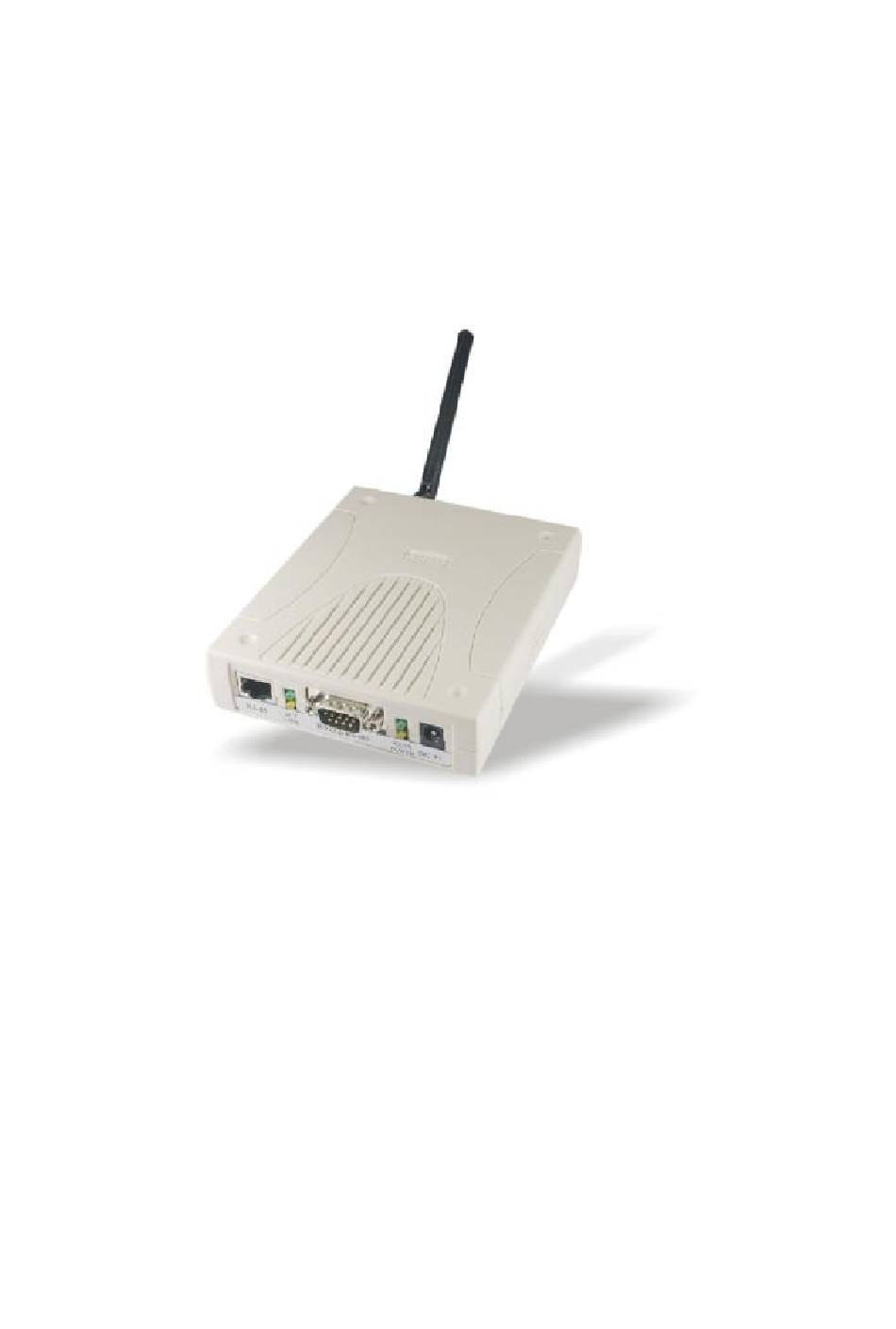

  • Page 1 SYRD245-1N-PW 2.45 GHz RFID Network Reader User Manual Version 2.00 2020/10/21...
  • Page 2 SYRD245-1N-PW active RFID Network Reader User Manual Ⅰ. Product Specification Communication 2.45 GHz Support read and write Frequency 2.40~2.48 GHz Channel RSSI 0-255 0-255 Programmable Set Parameter Multi-LED visual indication Wi-Fi 802.11 b/g/n Ethernet 10/100 base-T Ethernet (RJ-45) RS-232 RX, TX...
  • Page 3 SYRD245-1N-PW active RFID Network Reader User Manual Ⅱ. The Diagram of the System Connection SYRD245-1N-PW Network Reader can connect with 4 different interfaces： Wi-Fi, Ethernet, RS-485 or RS-232. Ⅲ. Network Parameter Setting Execute “NET_Discover_V0110.exe” and press to search SYRD245-1N series product.
  • Page 4 SYRD245-1N-PW active RFID Network Reader User Manual Double click IP to open the web configure page (ex.http://192.168.1.101) Default login ID / Password : admin / admin Default network mode as the following.
  • Page 5 Serial Configure 115200,8,n,1 Serial Framing Length 1050 Locale/Remote Port Number 4001 IV. Switch Network Mode SYRD245-1N-PW support 4 network modes: Default、ETH(Ethernet)、Wi-Fi STA、Wi-Fi AP. Default Ethernet (DHCP) +Wi-Fi AP mode(for setting) Ethernet only (Factory default) WIFI(STA) Wi-Fi client mode WIFI(AP) Wi-Fi AP mode(for setting) ETH：Standard TCP/IP Reader...
  • Page 6 SYRD245-1N-PW active RFID Network Reader User Manual Wi-Fi (STA)：SYRD245-1N-PW can set to communicate via Wireless AP without Ethernet. STA SSID: Enter the correct AP’s SSID. STA EncType : Select Encrypt type for AP connection. STA Passwd: Enter correct AP’s password.
  • Page 7 SYRD245-1N-PW active RFID Network Reader User Manual Wi-Fi AP mode：Setup SYRD245-1N-PW as AP (Wireless Access Point) for client device to communicate. This mode is usually for setting device. AP SSID: Setup SYRD245-1N-PW’s SSID. AP EncType : Select Encrypt Type for the AP.
  • Page 8 SYRD245-1N-PW active RFID Network Reader User Manual Default mode：Ethernet (DHCP) +Wi-Fi AP mode. It’s Dual-Mode ( Ethernet and Wi-Fi AP，but Ethernet only support DHCP.) Default SSID: SerialWIFI_C57C (C57C is depends on MAC address) Default Password: 12345678...
  • Page 9 SYRD245-1N-PW active RFID Network Reader User Manual V. Reset network to Default. Open the side cover of reader with coin or flat head screwdriver. Screw the lid of Reader by the proper screwdriver.
  • Page 10 SYRD245-1N-PW active RFID Network Reader User Manual Press initial button for 10 seconds and wait reader to reboot. Communication Parameters Factory Default IP address 192.168.1.101 Serial Configure 115200,8,n,1 Serial Framing Length 1050 Locale/Remote Port Number 4001...
  • Page 11 SYRD245-1N-PW active RFID Network Reader User Manual Ⅵ. TCP Server Mode In TCP Server mode, SYRD245-1N reader provides a unique IP:Port address on a TCP/IP network. SYRD245-1N reader wait passively to be contacted by the host computer, allowing the host computer to establish a connection with and get data from the serial device.
  • Page 12 SYRD245-1N-PW active RFID Network Reader User Manual When you finished change operating mode, you can execute SYRIS Xtive utility to read TAG. (SYRIS Xtive DVD-ROM\SYRD245-1\Utility\Xtive.exe) Select and modify correct IP address to communicate with Reader. (You can communicate multi-reader at the same time)
  • Page 13 SYRD245-1N-PW active RFID Network Reader User Manual Field Introduction: a. UID: Tag’s identification number. b. RSSI: Received Signal Strength Indication (0-255). Reading range and RSSI are inverse proportion. c. LQI: Link quality indicator (0-255). d. DI: TAG status and indicator.
  • Page 14 SYRD245-1N-PW active RFID Network Reader User Manual Select “View Select TAG” tab to get target TAG information.
  • Page 15 SYRD245-1N-PW active RFID Network Reader User Manual Ⅶ. TCP Client Mode In TCP Client mode, SYRD245-1N-PW reader can actively establish a TCP connection to a pre-defined host computer when serial data arrives. Setting Operating Mode Change operating mode to “TCP Client” and “Remote Domain” IP address and Port.
  • Page 16 SYRD245-1N-PW active RFID Network Reader User Manual Select “TCP Client” Tab and starting read TAG will receive Tag information from reader.
