All installations and services must be performed by qualified service personnel.

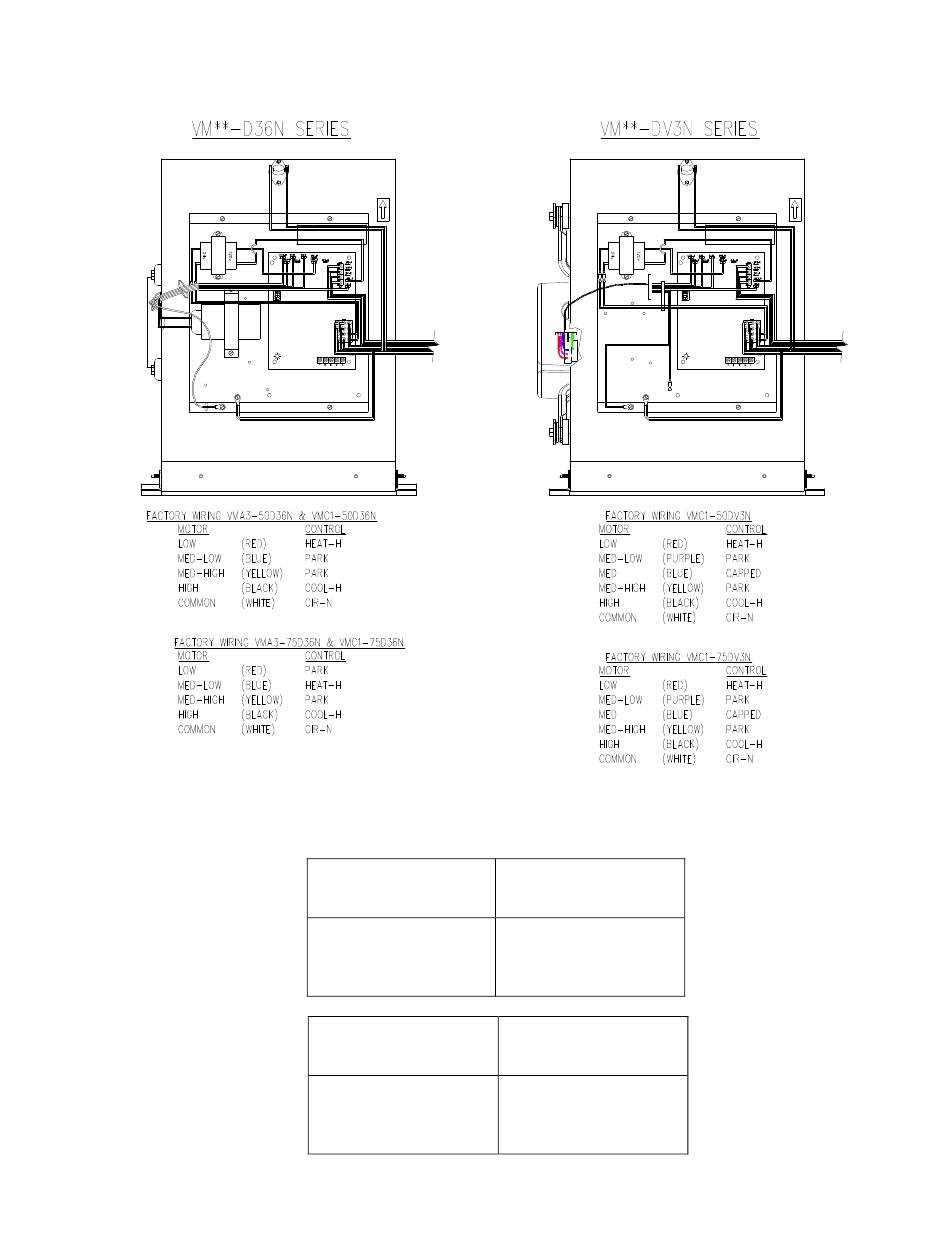

4. BLOWER MOTOR SPEED WIRING

Figure 15.
BLOWER DELAY SETTINGS
To delay fan
turn-on by: #1
15 sec. Off
30 sec. Off
45 sec. On
*60 sec. On
To delay fan
turn-off by:
60 sec.
90 sec.
*120 sec.
180 sec.
*Factory Settings For Optimal Performance
33
Set Switch
#2
Off
On
Off
On
Set Switch
#3 #4
On On
Off On
On Off
Off Off
