KOP & WDHOM LBT150 Operation Manual

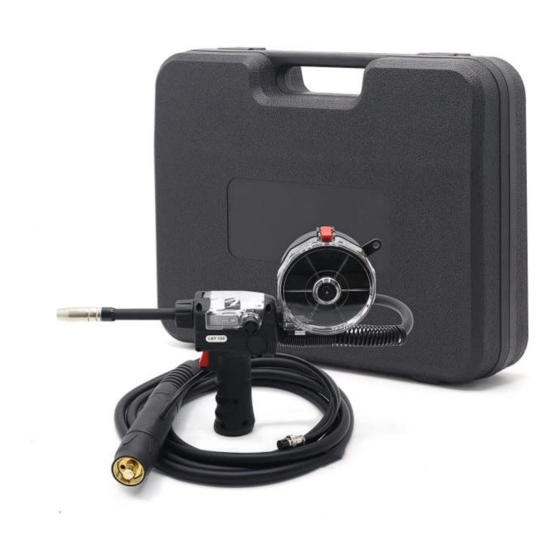

Mig welding spool gun
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Operation Manual
MIG Welding SPOOL GUN LBT150
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LBT150 and is the answer not in the manual?

Questions and answers

Related Manuals for KOP & WDHOM LBT150

Summary of Contents for KOP & WDHOM LBT150

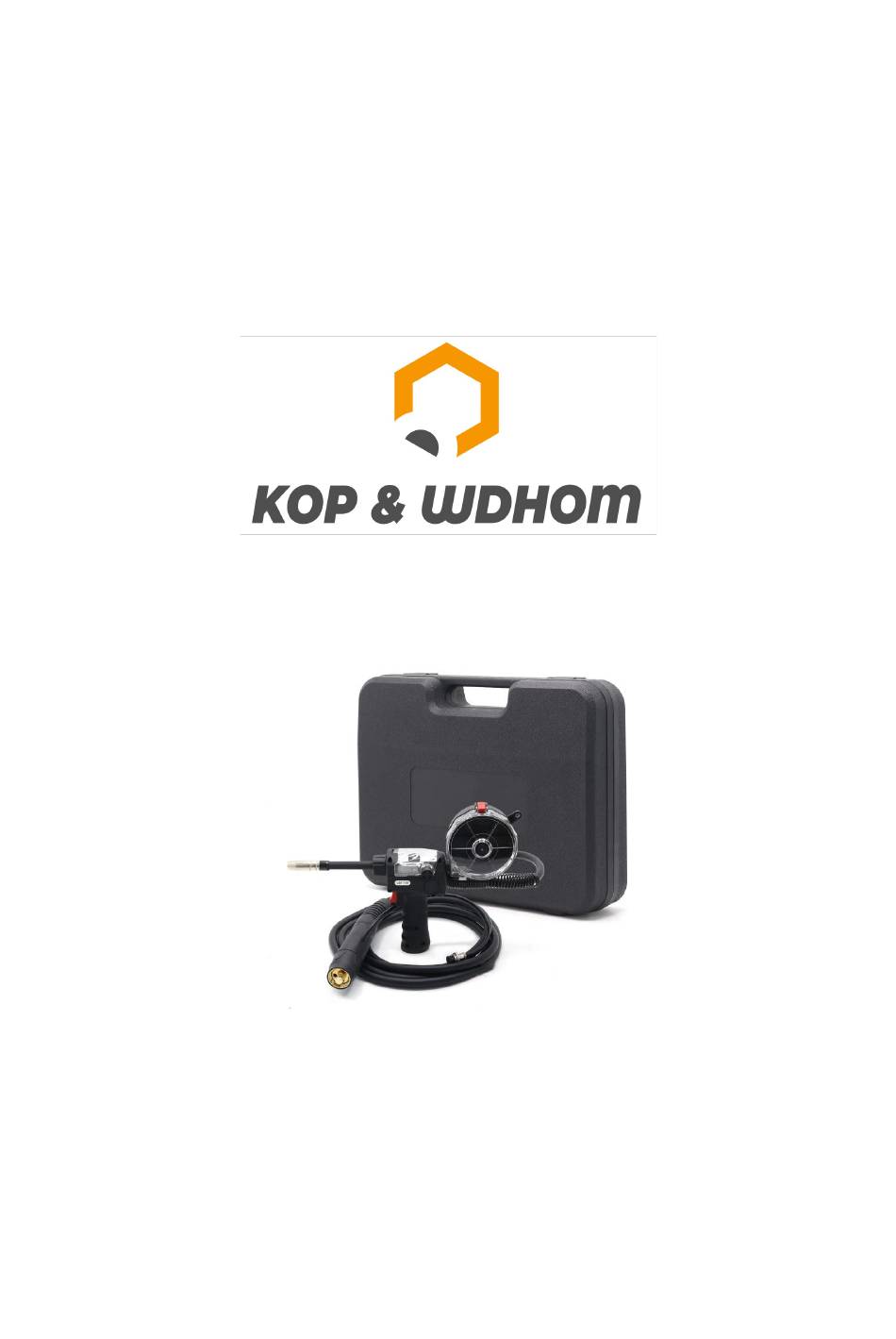

  • Page 1 Operation Manual MIG Welding SPOOL GUN LBT150...

  • Page 2: Table Of Contents

    Version Due to product version upgrades or other reasons, the contents of this document are not regularly updated. Unless otherwise agreed, this document is intended as a guide only and all statements, information and recommendations in this document do not constitute any guarantee, expressed or implied.

  • Page 3: Brief Product Introduction

    This mig welding spool gun has very good welding effect when welding aluminum. 1.2 Technical parameters Machine type LBT150 Length(m) Interface type European connector, 4-core aviation plug...

  • Page 4: Installation Instructions

    3 Installation instructions Open the cover of the wire feeding disc, open the cover of the wire feeding wheel bin, and loosen the pressure wheel of the wire feeding mechanism. Send the welding wire to the wire feeding wheel (note that the wire feeding wheel matches the diameter of the welding wire) Install the welding wire on the shaft beside the wire feeding, and tighten the mounting screws.

  • Page 5: Mig Torch Switch

    Direct Current Electrode Positive (DCEP):The Direct Current Electrode Negative (DCEN):The electrode cable (MMA stinger, MIG gun) connected workpiece is connected to the positive (+) to the positive (+) connector on the front panel, The connector on the front panel. The welding workpiece is connected to negative (-) connector electrode cable (MMA stinger, MIG gun, TIG Gun) by the work clamp cable.
  • Page 6 discharged in time during the welding process, resulting in the formation of pores. The melting point of aluminum is only 600 ℃ , and the welding current is slightly high, causing the workpiece to burn through. Aluminum is also very easy to oxidize. The melting point of the surface Aluminum oxide is 2000 ℃ , which is very different from that of aluminum.

  • Page 7: Daily Maintenance And Checking

    5 Daily maintenance and checking 5.1 Daily maintenance  Remove dust regularly with dry compressed air. If the welding machine is used in surroundings with heavy smoke and polluted air, it is necessary to remove dust at least one time one month. ...

  • Page 8: Attention

    6 Attention The precautions listed in this manual are intended to ensure the safe use of the machine and to protect you and others from harm and injury. The design and manufacture of the welding machine power take full account of the safety, be sure to comply with the precautions in this manual, otherwise it will cause serious accidents.
  • Page 9 Texts beginning with this symbol indicate potentially serious dangers and, if not avoided, could result in serious accidents that could result in death or serious injury to personnel. Texts beginning with this symbol indicates a potentially hazardous situation that, if not avoided, could result in minor injury to persons or property damage.
  • Page 10  Pacemaker wearers should consult with their doctor before operating. Please let qualified people or persons which with relevant knowledge and skills to install, operate,  maintain and repair the welder.  To ensure safety, please understand the contents of this manual. To avoid electric shock, please observe the rules ：...
  • Page 11 To prevent lack of oxygen, please fully ventilate and use an air respirator. When working in a confined area, please accept the inspection of the supervisory staff, and fully  breathe and use respiratory protection equipment.  Do not weld in the degreasing, cleaning, and spray operation areas. ...
  • Page 12  If the power source of the welder is placed on an inclined plane, attention should be paid to preventing it from falling.  It is forbidden to use welding power for the thawing of pipes.  When the welding power source is lifted using a forklift, it should be mounted sideways to prevent tipping.

  • Page 13: Service Guarantee

    The workpiece should be kept well grounded; Other cables and equipment in the environment can be selectively shielded and protected, thus reducing the impact of interference. The welding equipment can be completely shielded in special occasions.  The user should be responsible for the interference caused by welding. 7 Service GUARANTEE This product is made of high quality material and great care has been taken in its manufacture.It is designed to give good performance provided it is properly operated and maintained.The product is sold...
