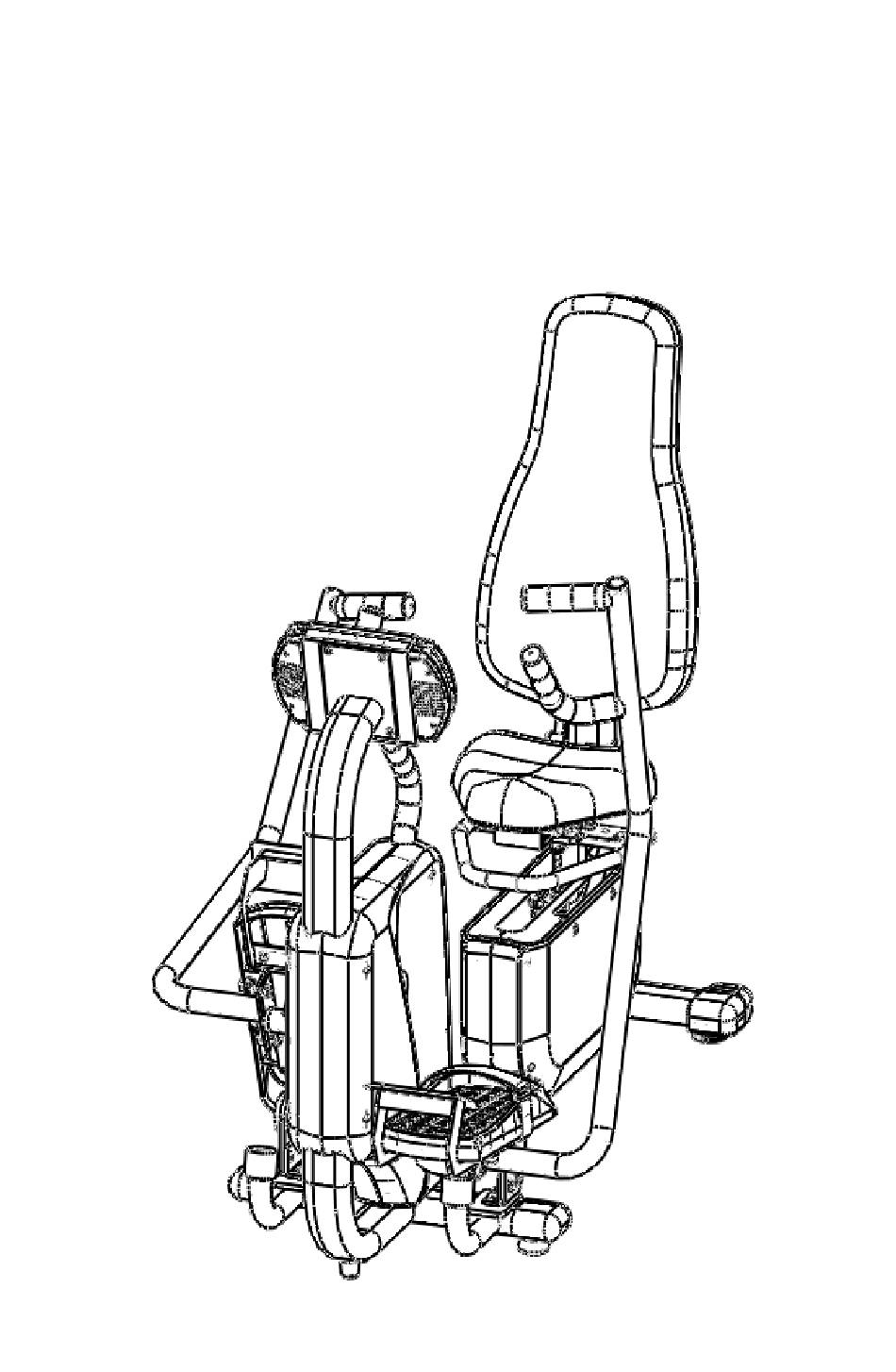

SC108 Core Total Body
Service Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the SC108 and is the answer not in the manual?

Questions and answers

Related Manuals for SMARC SC108

Summary of Contents for SMARC SC108

  • Page 1 SC108 Core Total Body Service Manual...

  • Page 2: Table Of Contents

    Content Serial Number Location Safety Instruction Preventive Maintenance Specification and Assembly Guide Console and Program Description Engineer Mode Troubleshooting Parts Replacement...

  • Page 3: Ch1 Serial Number Location

    CH1 Serial Number Location...

  • Page 4: Ch2 Safety Instruction

    6. WARNING: To avoid the risk of electric shock, the equipment must only be connected to supply mains with protective earth. 7. SMARC products forms a ME SYSTEM when connected to a power supply, and can be operated at a voltage of 115V or 230 V.
  • Page 5 3. Avoid over-stretching to prevent strain of soft tissues and joint instability. FOR PATIENTS WITH MEDICAL NEEDS Patients may operate SMARC products under supervision of physicians or physical therapists. Users with following medical and therapeutic needs (especially over 40 years old) should consult physician or physical therapist before operating.

  • Page 6: Ch3 Preventive Maintenance

    CH3 Preventive Maintenance 1. General Maintenance 1) SMARC products require only the most basic general maintenance, performed on an as- needed basis every 6~8 months. 2) Minimum qualifications of SERVICE PERSONNEL: Only technicians trained by PMHC and associated distributors are supposed to do maintenance. Please contact PMHC factory or local authorized dealer for maintenance.
  • Page 7 Chain Maintenance and Tightness Adjustment Applying grease Chain maintenance must be held at least once ever 6 months, depending on the frequency of use. Please apply grease to chain links and sprocket area as indicated on the left.
  • Page 8 Chain Maintenance and Tightness Adjustment Tightness (tension) adjustment Step1：Loosen the nuts above and beneath the “Turn Buckle” Turn Buckle Step2：Adjust the tightness (tension) of chain via turning the “Turn Buckle”...
  • Page 9 Chain Maintenance and Tightness Adjustment Step3：Check the tightness (tension) by pressing the chain. The standard tightness (tension) is 5~10 mm flexibility when pressed. Step4：Tighten the nuts...

  • Page 10: Ch4 Specification And Assembly Guide

    CH4 Specification and Assembly Guide...

  • Page 12: Ch5 Console And Program Description

    CH5 Console and Program Description...

  • Page 25: Ch6 Engineer Mode

    CH6 Engineer Mode Model Setting Mode Setting...

  • Page 30: Ch7 Troubleshooting

    CH7 Troubleshooting Lower Control Board Wires Installation Lower Control Encoder Wire Board Power Wire Generator Power Cord Console Wire...
  • Page 31 1) No console display when powered on 1.1 Check the “Voltage Switch” if it has been switched to the appropriate voltage, to 115V or 230V 1.2 Check the fuse if it is functioning...
  • Page 32 1.3 Change a new console to eliminate console breakdown 1.4 Check if the Transformer wires and cables are loosened or damaged Check if there is power output 1.5 Check the “Lower Control Board Power Wire is still in place Make sure the wires are properly connected (the power wire is inside the main frame tube)
  • Page 33 1.6 Check if the Console Wire has been properly connected to the “Lower Control Board” 1.7 Check if the Console Wire has been properly connected to the Console...
  • Page 34 2) Console angle display error Angle display breakdown or abnormal angle displayed during exercise 2.1 Check if Console Wire has been properly connected to “Lower Control Board” 2.2 Check if Encoder Wire has been properly connected to the “Lower Control Board”...
  • Page 35 2.3 Check if Encoder Wire has been properly connected to the Encoder 2.4 Change Encoder or Encoder Set and see if the problem has been solved upon changing...
  • Page 36 3) Resistance output error 3.1 Check if the Generator Power Cord has been properly connected 3.2 Check if power output is normal Check if there is power output Adjust Resistance (Load)
  • Page 37 3.3 Change another piece of “Lower Control Board” to see if the problem has been solved upon changing 3.4 Change another piece of Generator to see if the problem has been solved upon changing.

  • Page 38: Ch8 Parts Replacement

    CH8 Parts Replacement I. Tools list • Hex wrench x1 Set • Diagonal pliers x1 pcs • Needle-nose pliers x1 pcs • Phillips screwdriver x1 pcs • 10 mm Open ring wrench x2 pcs • 13 mm Open ring wrench x2 pcs •...
  • Page 39 II. Cover Removal Anterior Case removal Step 1: Remove Multi-Position Stepping Pads (left and right). Step 2: Remove the Philips Screws from both sides.
  • Page 40 Step 3: Remove both left and right Anterior Cases.
  • Page 41 Seat Side Cover removal Step 1: Position the seat to the very back end of equipment. Step 2: Remove the Fixation Screws of Gas Spring.
  • Page 42 Step 3： Remove Phillips Screws on both sides. Step 4： Remove Seat Side Covers.
  • Page 43 III. Driving Chain Replacement Driving Chain removal: Loosen the Turn Buckle and remove the Pedal chain.
  • Page 44 Driving Chain Installation: Step 1: Place and adjust the chain position. The white colored labels on both the chain and the sprocket should align. Step 2: The position of Turn Buckle should be installed towards the left side of the equipment, so as the label on the sprocket.
  • Page 45 Step 3: Adjust the chain tension and apply Loctite 243 to the Turn Buckle Step 4: Swing the pedals and check if there is an appropriate distance between the Turn Buckle and sprocket.
  • Page 46 IV. Driving Chain Replacement Direction Turning chain removal： Step 1：Loosen the Turn Buckle to remove the Direction Turning Chain.
  • Page 47 Install the Direction Turning Chain: Step 1： There are two white colored labels on the Direction Turning Chain. Upon installation, these labels should align with the corresponding white colored labels on the two sprockets Step 2: Adjust both left and right sprockets where by the white colored labels are facing towards the back end of equipment.
  • Page 48 Step 3: Install the Direction Turning Chain, the white colored label and the label on left sprocket should align, install entire chain and the second label should also align to the corres- ponding label on the right sprocket. This white colored label should align to the...
  • Page 49 Step 4: The second label should also align to the corresponding label on the right sprocket. Right sprocket Second label label Turn Buckle Head Step 5: Adjust the chain tightness by adjusting the Turn Buckle. Apply Loctite 243 to Turn Buckle screw.
  • Page 50 Step 6: Move the pedals and check if the Turn Buckle remained a safe distance to the sprocket.
  • Page 51 V. Generator and Generator Chain Replacement 1. Generator removal Step 1: Remove Generator Fixation Screws. Step 2: Loosen Generator Adjustment Screws.
  • Page 52 Step 3: Remove Chain Lock and remove chain.
  • Page 53 Generator replacement： Step 1: Remove Generator Fixation Screws and Generator.
  • Page 54 3. Generator and Driving Chain installation Step 1: Position the Generator on the frame, apply Fixation Screws to attach the Generator. Step 2: Ensure the Chain Gear is in parallel with Frame Gear (can be observed looking sideway).
  • Page 55 Step 3: Install the chain and fix the Chain Lock. Step 4: Adjust the chain tightness by adjusting the Socket Set Screw, then lock the screw with a nut.
  • Page 56 Step 5: Fix the Generator with Hex Head Cap Screws, apply torque force of 150 Kgf/cm to the screws.
  • Page 57 4. Apply Grease to Chain: Step 1: After replacing the chains, apply grease to the chain and sprocket keys.
  • Page 58 VI. Gas Spring Replacement Gas Spring removal Step 1: Position the seat to the very back of the frame. Step 2: Remove the Fixation Screw of the Gas Spring.
  • Page 59 Step 3: Remove Phillips Screws. Step 4: Remove the Seat Side Cover (Left).
  • Page 60 Step5：Loosen the Fixation Screw Cap of gas spring.
  • Page 61 VII. Wires and Parts Diagram Wires and Parts connection diagram...
  • Page 62 Parts position Parts Name Quantity WEE-0000101-2 Electro-Magnetic System - Short Axis Version WCM-0000475-7 Encoder Control Set (A) WEE-0000139-6 Console Set WEE-0000147-8 Power Supply Unit - short WEE-0000172-1 Transformer WEE-0000084-6 Electro-Magnetic System Cable-L400 WEE-0000156-7 Encoder Cable-L350 WEE-0000164-9 LCB Extension Cable-L700 WEE-0000171-4 Power Cord-L700 WEE-0000111-8 Console Cable-L1800...
