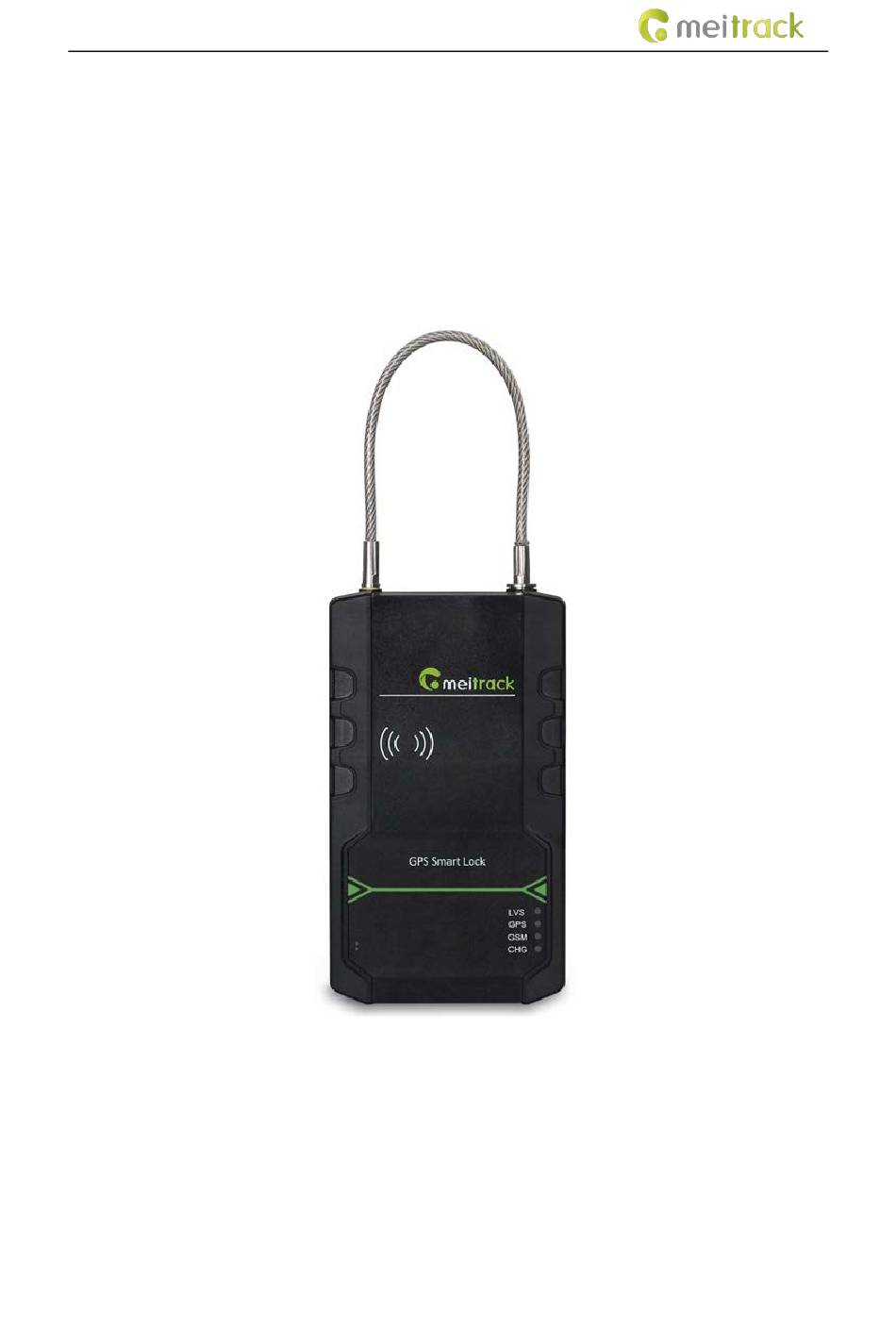

- Page 1 MEITRACK K211 GPS Smart Lock User Guide MEITRACK K211 GPS Smart Lock User Guide...
- Page 2 MEITRACK K211 GPS Smart Lock User Guide Change History File Name MEITRACK K211 GPS Smart Lock User Guide Project K211 Creation Date 2022-07-21 Update Date 2023-02-17 Subproject User Guide Total Pages Version V2.2 Confidential External Documentation Copyright © 2022 Meitrack Group All rights reserved.
-
Page 3: Table Of Contents
6.6.6 Authorizing an RFID Card – D10 ......................- 17 - 6.6.7 Authorizing RFID Cards in Batches – D11 ................... - 18 - 6.6.8 Locking or Unlocking the K211 – D82 ....................- 18 - 6.6.9 Selecting a Locking Method – D83 ..................... - 18 - 6.6.10 Setting the automatic authorization time of swiping the RFID card –... -
Page 4: Copyright And Disclaimer
This function is used for communication between the K211 and the T399G vehicle tracker. After the LoRa connection is successful, the K211 will send information such as lock status information and battery power to the T399G via LoRa. To establish LoRa communication between the K211 and the T399G, the two devices must be bound each other. For details about how to bind the T399G to the K211, see the section 6.5 "Binding or Unbinding the T399G."... -
Page 5: Locking Or Unlocking The K211
Communication diagram K211 Working Mode Status LoRa connected The GPS and GSM modules of the K211 enter the sleep mode, and its lock status information and alerts will be uploaded to the server through the T399G. LoRa Deep sleep mode (send heartbeat... -
Page 6: Dual Sim Cards
LVS LED indicator will be steady on, indicating that the K211 is unlocked. In this way, the last step for you is to pull out the lock rope. (To lock the K211, you only need to swipe the RFID card once. Then the buzzer will beep and the LVS LED indicator will be off, indicating that the K211 is locked.) -
Page 7: Magnetic Charging
MEITRACK K211 GPS Smart Lock User Guide 2.1.4 Magnetic Charging You can use the magnetic charging cable to charge the K211. The device supports 9V/2A power adapter, and it will take a total of 7.5–8 hours to charge the device fully. -
Page 8: Anti-Collision Soft Adhesive
Super password (the default is 666888) supports all SMS commands, but DB0 / D82 / D10 / D11 / D14 D15 / A21 / F22 commands can't use the original SMS password (the default is 0000), they can only use super password. When setting GPRS parameters through Meitrack Manager, you need to open the super password first before setting successfully: Copyright ©... -
Page 9: Product Functions
It is recommended to set a new super password first, because the super password is related to the security of unlocking; The default super password is 666888, which can be modified by Meitrack Manager and F22 command.Please make sure to remember the super password, and the super password cannot be quested and reset to the original value, once you forget the password, it will not be able to recover. -
Page 10: Other Functions
An alert will be generated when the K211 fails to be unlocked by swiping an authorized RFID card. Locking failure alert An alert will be generated when the K211 fails to be locked by swiping an authorized RFID card. 3.3 Other Functions... -
Page 11: Main Device And Accessories
MEITRACK K211 GPS Smart Lock User Guide band LTE-FDD:B1/B3/5/B7/B8/B20/B28 K211L-AUR GSM:850/900/1800/1900 LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66 K211E GSM:850/900/1800/1900 Cat M1/Cat NB2: LTE- FDD:B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B6 6/B71/B85 GPS antenna Built-in GPS antenna GPS sensitivity -161 dB Positioning accuracy 2.5 meters LoRa communication distance At most 20 meters (obtained from actual tests in trucks' containers) -
Page 12: First Use
MEITRACK K211 GPS Smart Lock User Guide 6 First Use 6.1 Installing a SIM Card Remove the four screws from the cover and take the cover out. Insert a SIM card into one of the card slots (SIM1: right; SIM2: left). -
Page 13: Led Indicator
Note: When using the device for the first time, you are advised to charge the battery fully. 6.3 LED Indicator LVS LED Indicator (Green) Steady off The K211 is locked or is not connected to the T399G. Steady on The K211 is unlocked. Blink fast (0.2 seconds on and 4.8 The K211 is connected to the T399G. -
Page 14: Configuring Device Parameters By Meitrack Manager
After the installation is finished, connect the K211 to the computer by USB cable. If Prolific USB-to-Serial Comm Port (COM3) is displayed on the Device Manager page, the driver is installed successfully. Note: Before connecting the K211 to the computer by USB cable, turn on the K211 first. Otherwise, it cannot be detected by Meitrack Manager. -
Page 15: Binding Or Unbinding The T399G
6.5 Binding or Unbinding the T399G 6.5.1 Binding the T399G To make the K211 and T399G communicate with each other via LoRa, bind the two devices. An IMEI number is the default binding information. Perform the following steps to bind the T399G: Go to the Peripheral page of Meitrack Manager. -
Page 16: Common Sms Commands
MEITRACK K211 GPS Smart Lock User Guide Note: The binding and unbinding functions are only available for the K211 with a LoRa module. 6.6 Common SMS Commands 6.6.1 Setting GPRS Parameters – A21 SMS Sending Password,A21,Connection mode,IP address,Port,APN,APN user name,APN password... -
Page 17: Setting The Maximum Working Time Of The Woken Gps Module - A83
MEITRACK K211 GPS Smart Lock User Guide SMS Sending 0000,A73,0 SMS Reply 353358017784062,A73,OK 6.6.3 Setting the Maximum Working Time of the Woken GPS Module – A83 SMS Sending Password,A83,X SMS Reply IMEI,A83,OK Description X: indicates the maximum working time of the GPS module woken up by heartbeat packet. -
Page 18: Authorizing Rfid Cards In Batches - D11
When X is 0, the K211 is locked automatically. Description When X is 1, the K211 is locked by swiping RFID cards. The auto locking method is selected by default. If the command does not contain the parameter X, the locking method will be read. -
Page 19: Setting The Automatic Authorization Time Of Swiping The Rfid Card - Db0
Visit http://ms03.trackingmate.com, enter the user name and password, and log in to the MS03. (Purchase the login account from your provider.) For more information about how to add a device, see the MEITRACK GPS Tracking System MS03 User Guide (chapter 4 "Getting Started"). -
Page 20: Authorizing Rfid Cards In Batches By Ms03
If only one RFID card needs to be authorized, the number of cards is 1. After the RFID cards are authorized successfully, you can swipe these cards to unlock and lock the K211 and record operator information. Copyright © 2022 Meitrack Group All rights reserved. -
Page 21: Device Installation
MEITRACK K211 GPS Smart Lock User Guide 8 Device Installation If you have any questions, do not hesitate to email us at info@meitrack.com. Copyright © 2022 Meitrack Group All rights reserved. - 21 -...
