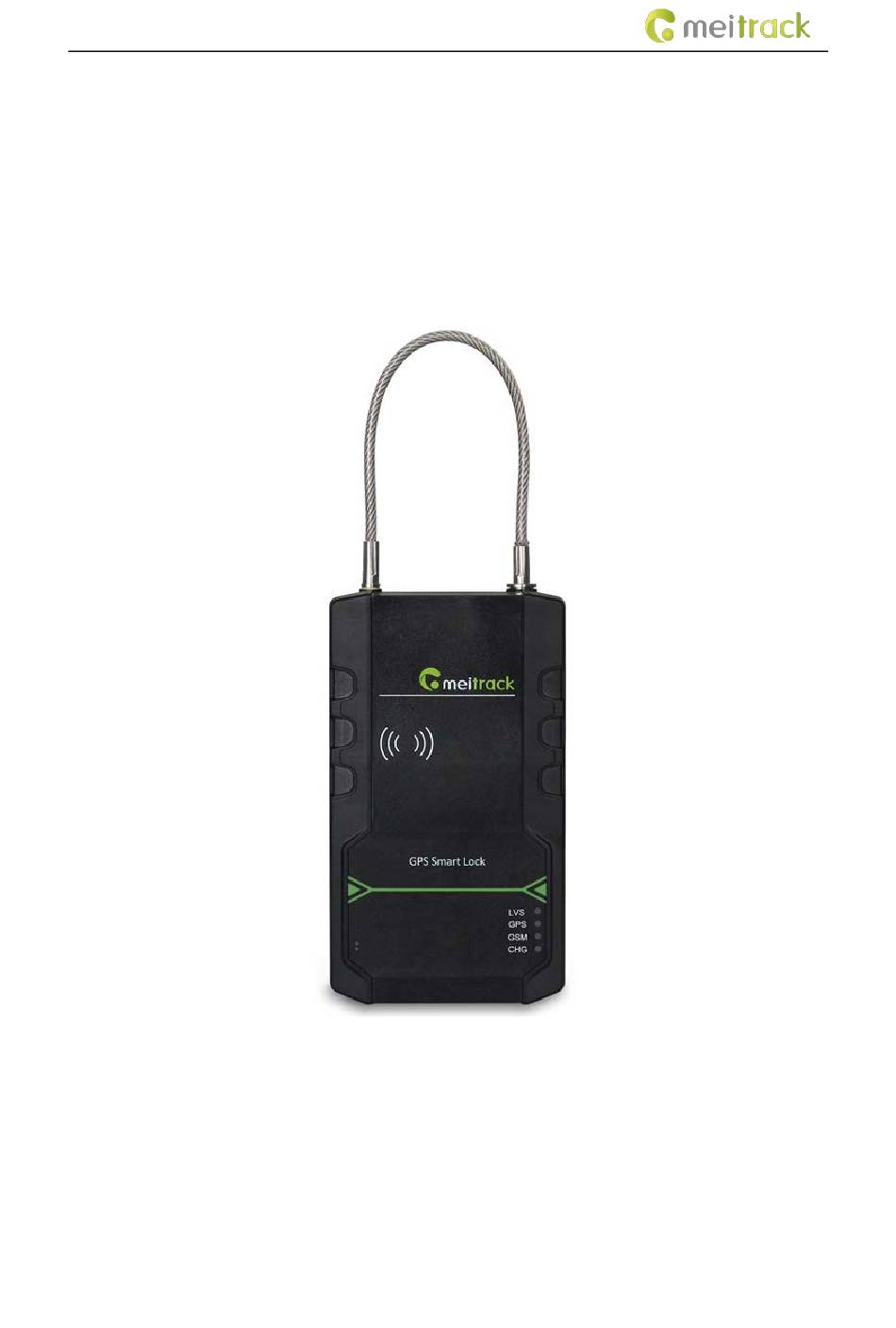

- Page 1 MEITRACK K211L GPS Smart Lock User Guide MEITRACK K211L GPS Smart Lock User Guide Applicable Model: K211L...
- Page 2 MEITRACK K211L GPS Smart Lock User Guide Change History File Name MEITRACK K211L GPS Smart Lock User Guide Project K211L Creation Date 2022-07-21 Update Date Subproject User Guide Total Pages Version V1.0 Confidential External Documentation Copyright © 2022 Meitrack Group All rights reserved.
-
Page 3: Table Of Contents
6.6.6 Authorizing an RFID Card – D10 ......................- 17 - 6.6.7 Authorizing RFID Cards in Batches – D11 ................... - 17 - 6.6.8 Locking or Unlocking the K211L – D82 ....................- 18 - 6.6.9 Selecting a Locking Method – D83 ..................... - 18 - 6.6.10 Setting the automatic authorization time of swiping the RFID card –... -
Page 4: Copyright And Disclaimer
LoRa. To establish LoRa communication between the K211L and the T399G, the two devices must be bound each other. For details about how to bind the T399G to the K211L, see the section 6.5 "Binding or Unbinding the T399G." LoRa connection process:... -
Page 5: Locking Or Unlocking The K211L
Super deep sleep mode (send After the K211L is started properly, if no event is triggered, heartbeat packets once every one the K211L will enter the deep sleep mode the GPS and GSM hour) module will stop) after five minutes (default time). The wakeup conditions include vibration, swiping RFID cards and sending heartbeat packets. -
Page 6: Dual Sim Cards
LVS LED indicator will be steady on, indicating that the K211L is unlocked. In this way, the last step for you is to pull out the lock rope. (To lock the K211L, you only need to swipe the RFID card once. -
Page 7: Magnetic Charging
MEITRACK K211L GPS Smart Lock User Guide 2.1.4 Magnetic Charging You can use the magnetic charging cable to charge the K211L. The device supports 9V/2A power adapter, and it will take a total of 7.5–8 hours to charge the device fully. -
Page 8: Anti-Collision Soft Adhesive
Super password (the default is 666888) supports all SMS commands, but DB0 / D82 / D10 / D11 / D14 D15 / A21 / F22 commands can't use the original SMS password (the default is 0000), they can only use super password. When setting GPRS parameters through Meitrack Manager, you need to open the super password first before setting successfully: Copyright ©... -
Page 9: Product Functions
It is recommended to set a new super password first, because the super password is related to the security of unlocking; The default super password is 666888, which can be modified by Meitrack Manager and F22 command.Please make sure to remember the super password, and the super password cannot be quested and reset to the original value, once you forget the password, it will not be able to recover. -
Page 10: Other Functions
An alert will be generated when you swipe an authorized RFID card to lock the K211L. Unlocking failure alert An alert will be generated when the K211L fails to be unlocked by swiping an authorized RFID card. Locking failure alert An alert will be generated when the K211L fails to be locked by swiping an authorized RFID card. -
Page 11: Main Device And Accessories
MEITRACK K211L GPS Smart Lock User Guide band LTE-FDD:B1/B3/5/B7/B8/B20/B28 K211E GSM:850\900\1800\1900 Cat M1/Cat NB2: LTE- FDD:B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B6 6/B71/B85 GPS antenna Built-in GPS antenna GPS sensitivity -161 dB Positioning accuracy 2.5 meters LoRa communication distance At most 20 meters (obtained from actual tests in trucks' containers) -
Page 12: Turning On The K211L
MEITRACK K211L GPS Smart Lock User Guide Insert a SIM card into one of the card slots (SIM1: right; SIM2: left). 6.2 Turning on the K211L Press the power button for 3 seconds. Then the GPS and GSM LED indicators will blink fast, indicating that the device is turned on. -
Page 13: Led Indicator
After the installation is finished, connect the K211L to the computer by USB cable. If Prolific USB-to-Serial Comm Port (COM3) is displayed on the Device Manager page, the driver is installed successfully. Note: Before connecting the K211L to the computer by USB cable, turn on the K211L first. Otherwise, it cannot be detected by Meitrack Manager. -
Page 14: Configuring Device Parameters By Meitrack Manager
Connect the device to a computer by using the USB cable. Run Meitrack Manager (6.0.0.9 version or later), then the following dialog box will appear: Turn on the device, then Meitrack Manager will automatically detect the device model and the parameter page will appear accordingly. -
Page 15: Binding Or Unbinding The T399G
6.5 Binding or Unbinding the T399G 6.5.1 Binding the T399G To make the K211L and T399G communicate with each other via LoRa, bind the two devices. An IMEI number is the default binding information. Perform the following steps to bind the T399G: Go to the Peripheral page of Meitrack Manager. -
Page 16: Common Sms Commands
MEITRACK K211L GPS Smart Lock User Guide 6.6 Common SMS Commands 6.6.1 Setting GPRS Parameters – A21 SMS Sending Password,A21,Connection mode,IP address,Port,APN,APN user name,APN password SMS Reply IMEI,A21,OK Description Connection mode = 0: function disabled. Connection mode = 1: function enabled; use the TCP/IP reporting mode. -
Page 17: Setting The Sms Time Zone - B35
MEITRACK K211L GPS Smart Lock User Guide and the GPS is invalid. Example SMS Sending 0000,A83,1 SMS Reply 353358017784062,A83,OK 6.6.4 Setting the SMS Time Zone – B35 SMS Sending Password,B35,SMS minute SMS Reply IMEI,B35,OK Description The default time zone of the device is GMT 0. You can run the B35 command to change the time zone of an SMS report to the local time zone. -
Page 18: Locking Or Unlocking The K211L - D82
When X is 0, the K211L is locked automatically. Description When X is 1, the K211L is locked by swiping RFID cards. The auto locking method is selected by default. If the command does not contain the parameter X, the locking method will be read. -
Page 19: Changing Super Password - F22
Visit http://ms03.trackingmate.com, enter the user name and password, and log in to the MS03. (Purchase the login account from your provider.) For more information about how to add a device, see the MEITRACK GPS Tracking System MS03 User Guide (chapter 4 "Getting Started"). - Page 20 If only one RFID card needs to be authorized, the number of cards is 1. After the RFID cards are authorized successfully, you can swipe these cards to unlock and lock the K211L and record operator information. Copyright © 2022 Meitrack Group All rights reserved.
-
Page 21: Device Installation
MEITRACK K211L GPS Smart Lock User Guide 8 Device Installation If you have any questions, do not hesitate to email us at info@meitrack.com. Copyright © 2022 Meitrack Group All rights reserved. - 21 -...
