Summary of Contents for WAVESYS WSRM-2602-2C

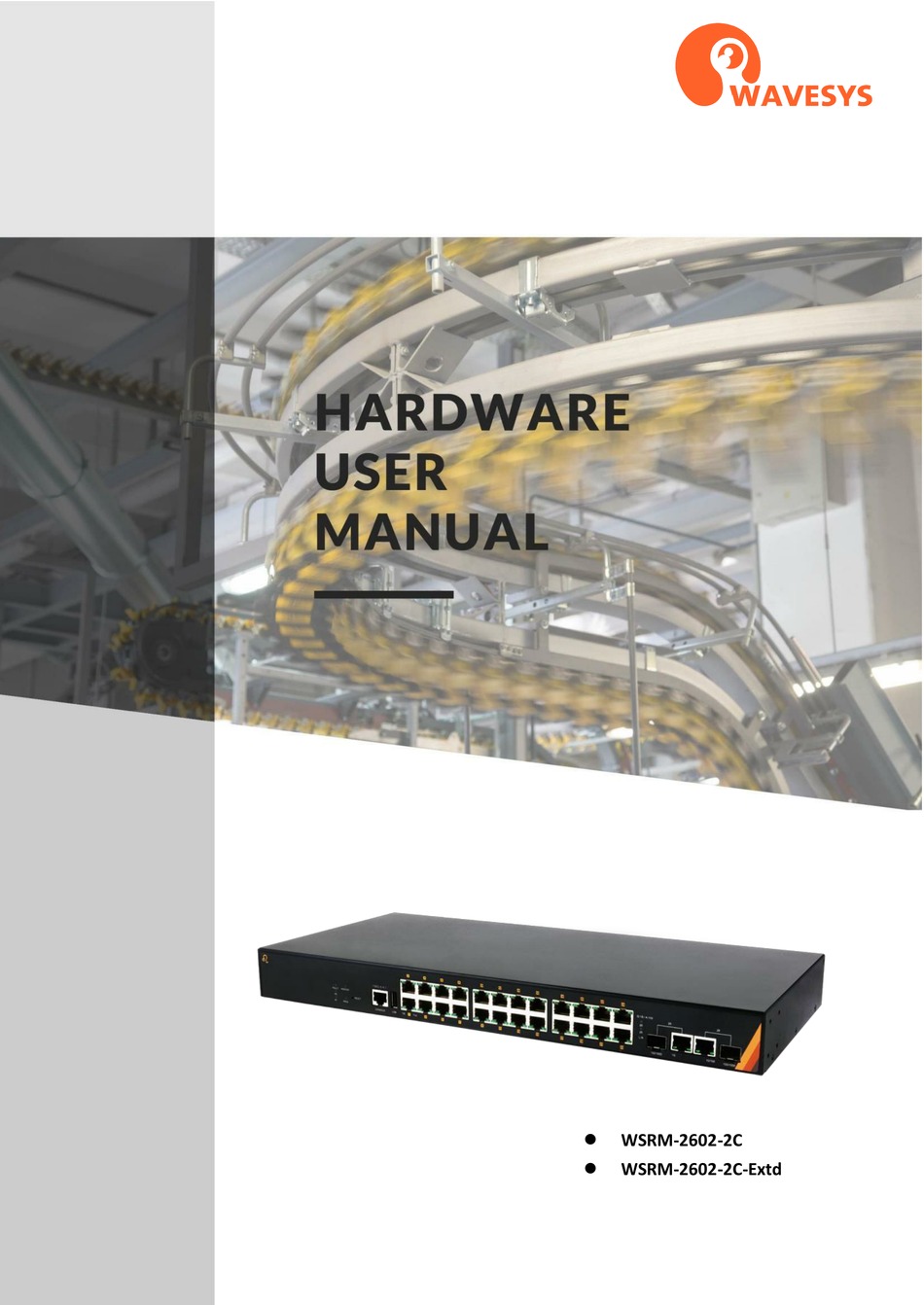

- Page 1 ⚫ WSRM-2602-2C ⚫ WSRM-2602-2C-Extd...
- Page 2 FCC Notice This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy.
-
Page 3: Table Of Contents
CONTENT OVERVIEW ........................... 1 Key Features ................................. 1 Package Contents ............................... 2 Safety Precaution ................................ 2 HARDWARE DESCRIPTION ...................... 3 Physical Dimensions ..............................3 Front Panel ..................................4 LED Indicators ................................5 Ethernet Ports ................................6 Cabling ................................... 7 Wiring the Power Inputs ............................9 Wiring the Fault Alarm Contact .......................... -
Page 4: Overview
OVERVIEW This series is rated IP40 and Rack-Mounting installation. Each unit of this industrial gigabit managed Ethernet switch series has 24*10/100/1000Tx with IEEE 802.3at compliant ports (30W/port) and 2 Gigabit combo ports (2*10/100/1000Tx RJ45 or 2*100/1000 SFP slots), suitable for applications that require high bandwidth and long-distance communication. -
Page 5: Package Contents
Package Contents ⚫ 1 – WSRM-2602-2C(-Extd) - Unit weight: 2.82kg (6.22 lb), Shipping weight: 3.54kg (7.80 lb) ⚫ 2 – Rack-mounting brackets and screws ⚫ 1 – Quick installation guide ⚫ 1 – RJ45 to DB9 Serial Console cable Safety Precaution Attention If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input. -
Page 6: Hardware Description
HARDWARE DESCRIPTION Physical Dimensions Figure 2.1, below, shows the physical dimensions of WSRM-2602-2C series. (W x H x D) is 440mm x 44mm x 200mm Figure 2.1: Physical Dimensions... -
Page 7: Front Panel
Figure 2.2: The Front Panel of WSRM-2602-2C Series Rear Panel Figure 2.3, below, shows the rear panel of the WSRM-2602-2C series switch that is equipped with one 8-pin redundant power inputs (48-55VDC) and one 2-pin terminal block for relay output. -
Page 8: Led Indicators
LED Indicators There are LED light indicators located on the front panel of the industrial switch that display the power status and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1. -
Page 9: Ethernet Ports
Ethernet Ports RJ-45 Ports (Auto MDI/MDIX) The RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX or 1000Base-T devices connections. Auto MDI/MDIX means that the switch can connect to another switch or workstation without changing the straight-through or crossover cabling. See the figures as below for straight-through and crossover cabling schematics. -
Page 10: Cabling
Cabling Use the four twisted-pair, category 5e, or the above cabling for RJ-45 port connections. The cable between the switch and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) long. The small form-factor pluggable (SFP) is a compact optical transceiver used in optical communications for both telecommunication and data communication applications. - Page 11 To remove the LC connector from the transceiver, please follow the steps shown below: Step 1 Press the upper side of the LC connector from the transceiver and pull it out to release as shown below in Figure 2.7 Figure 2.7: Remove LC Connector Step 2 Push down the metal clasp and pull the transceiver out by the plastic part as shown below in Figure 2.8...
-
Page 12: Wiring The Power Inputs
Wiring the Power Inputs Caution: Please follow the below steps to insert the power wire. Attention: Veuillez suivre les étapes ci-dessous pour insérer le câble d'alimentation. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts on the connectors as shown below in Figure 2.9. -
Page 13: Grounding Note
Attention: Le calibre des fils du bornier doit être compris entre 12 et 24 AWG. Grounding Note Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices. The grounding screw symbol is shown blow in Figure 2.11. -
Page 14: Mounting Installation
MOUNTING INSTALLATION Rack Mounting This switch can be mounted in a standard 19-inch rack with rack-mount kits. Please follow the instruction shown below in Figure 3.1 to install rack-mounting switch. Locate one plate to align with the holes on one side of the switch and secure it with the plate screws and then attach the remaining plate to the other side of the switch. -
Page 15: Hardware Installation
HARDWARE INSTALLATION Installation Steps This section will explain how to install WSRM-2602-2C series. Installation Steps Step 1. Unpack the industrial switch from the original packing box. Step 2. If the rack-mount bracket is not screwed on the industrial switch, please refer to the Rack Mounting section for installation. - Page 16 Caution: If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. Attention: Si l'équipement est utilisé d'une manière non spécifiée par le fabricant, la protection fournie par l'équipement peut être altérée. Caution: The installation that the safety to any system incorporating the equipment is the responsibility of the assembler of the system.
-
Page 17: Trouble Shooting
If the power indicator LED does not turn on when the power cord is plugged in, the user may have a problem with the power cord. Check for loose power connections, power losses or surges at the power outlet. Please contact Wavesys Global for technical support service, if the problem still cannot be resolved. ◆ ●...
