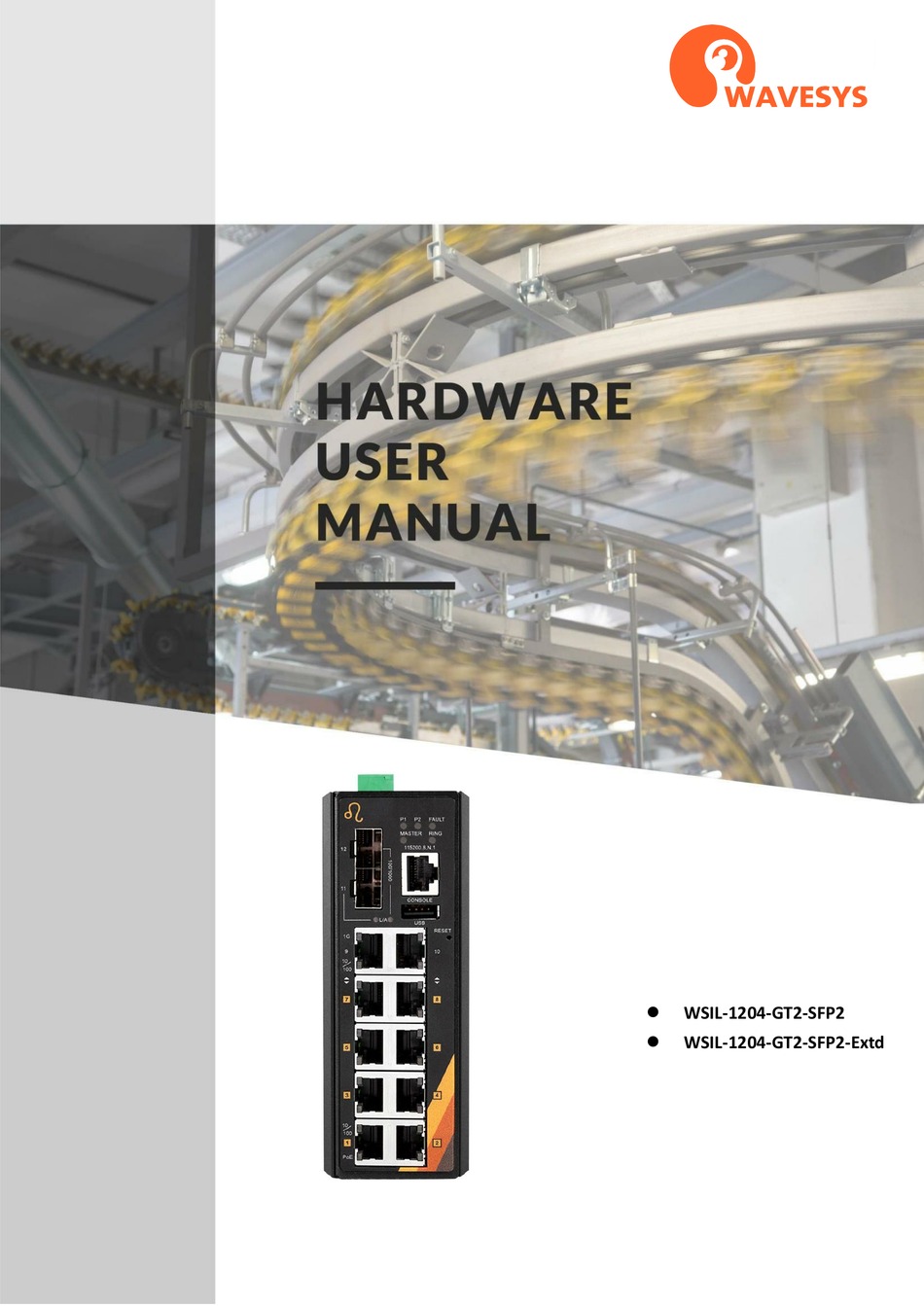

- Page 1 ⚫ WSIL-1204-GT2-SFP2 ⚫ WSIL-1204-GT2-SFP2-Extd...
- Page 2 FCC Notice This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy.
-
Page 3: Table Of Contents
Contents Overview ......................................1 Key Features ....................................1 Package Contents ..................................2 Safety Precaution ..................................2 Hardware Description ..................................3 Physical Dimensions ................................... 3 Front Panel ..................................... 4 Top View ......................................4 LED Indicators ....................................5 Ethernet Ports ....................................7 Cabling ...................................... -
Page 4: Overview
Overview This series is rated IP30 and installation by DIN Rail. Each unit of this industrial managed fast Ethernet switch series has 8*10/100Tx with 8*IEEE 802.3at compliant ports (30W/port) and 2*10/100/1000Tx RJ45 and 2*100/1000x SFP slots, suitable for applications that require high bandwidth and long distance communication. -
Page 5: Package Contents
Package Contents • 1 -WSIL-1204-GT2-SFP2(-Extd)x 1 • 2 - Wall mounting brackets and screws x 1 • 3 - Quick installation guide x 1 Safety Precaution Attention If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input. -
Page 6: Hardware Description
Hardware Description Physical Dimensions Figure 2.1, below, shows the physical dimensions ofWSIL-1204-GT2-SFP2 series. (W x H x D) is 54mm x 142mm x 99mm Figure 2.1:WSIL-1204-GT2-SFP2 Series Physical Dimensions... -
Page 7: Front Panel
Front Panel The front panel of theW S I L -1204-GT2-SFP2 series industrial PoE+ gigabit managed fast Ethernet switch is shown below in Figure 2.2. Figure 2.2: The Front Panel ofWSIL-1204-GT2-SFP2 Series Top View Figure 2.3, below, shows the top panel of theWSIL-1204-GT2-SFP2 series switch that is equipped with one 6-pin removal terminal block connector for dual DC power inputs (48-55VDC). -
Page 8: Led Indicators
LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet switch that display the power status and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1. Color Description Power input 1 is active... - Page 9 Not connected to network Connected to network with 10/100Mbps Green 10/100 Flashing Networking is active (LAN Port 1-8) Not connected to network Green Supplying power to the powered-device (LAN Port 1-8) Not connected to a Powered Device Table 2.1: LED Indictors forWSIL-1204-GT2-SFP2 Series Caution: "P1/P2"...
-
Page 10: Ethernet Ports
Ethernet Ports RJ-45 Ports (Auto MDI/MDIX) The RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX or 1000Base-T devices connections. Auto MDI/MDIX means that the switch can connect to another switch or workstation without changing the straight-through or crossover cabling. See the figures as below for straight-through and crossover cabling schematics. -
Page 11: Cabling
Cabling Use the four twisted-pair, category 5e, or the above cabling for RJ-45 port connections. The cable between the switch and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) long. The small form-factor pluggable (SFP) is a compact optical transceiver used in optical communications for both telecommunication and data communication applications. - Page 12 Step 2. Insert the fiber cable of the LC connector into the transceiver as shown below in Figure 2.6. Figure 2.6: LC Connector to the Transceiver To remove the LC connector from the transceiver, please follow the steps shown below: Step 1.
-
Page 13: Wiring The Power Inputs
Step 2. Push down the metal clasp and pull the transceiver out by the plastic part as shown below in Figure 2.8 Figure 2.8: Pull Out from the SFP Module Wiring the Power Inputs Please follow the below steps to insert the power wire. Step 1. -
Page 14: Wiring The Fault Alarm Contact
Note: Only use copper conductors, 125°C, tighten to 5 lbs. The wire gauge for the terminal block should range between 18~20 AWG. Wiring the Fault Alarm Contact The fault alarm contact is in the middle of the terminal block connector as the picture shows below in Figure 2.11. -
Page 15: Mounting Installation
Mounting Installation DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Media Converter from the factory. If the DIN-Rail is not on the industrial Media Converter, please see Figure 3.1 to learn how to install the DIN-Rail on the Media Converter. Figure 3.1: The Rear Side of the Media Converter and DIN-Rail Bracket Follow the steps below to learn how to hang the industrial Media Converter. - Page 16 Figure 3.2: Insert the Media Converter on the DIN-Rail Step 4. Lightly pull down the bracket on to the rail as shown below in Figure 3.3. Figure 3.3: Stable the Media Converter on DIN-Rail Step 5. Check if the bracket is mounted tightly on the rail. Step 6.
-
Page 17: Wall Mounting
Wall Mounting Follow the steps below to mount the industrial Media Converter using the wall mounting bracket as shown below in Figure 3.4. Step 1. Remove the DIN-Rail bracket from the industrial Media Converter by loosening the screws. Step 2. Place the wall mounting brackets on the top and bottom of the industrial Media Converter. - Page 18 Below, in Figure 3.5 are the dimensions of the wall mounting bracket. Figure 3.5: Wall Mounting Bracket Dimensions...
-
Page 19: Hardware Installation
Hardware Installation Installation Steps This section will explain how to installWSIL-1204-GT2-SFP2 series. Installation Steps Step 1. Unpack the industrial Media Converter from the original packing box. Step 2. Check if the DIN-Rail bracket is screwed on the industrial Media Converter. •... -
Page 20: Maintenance And Service
Maintenance and Service • If the device requires servicing of any kind, the user is required to disconnect and remove it from its mounting. The initial installation should be done in a way that makes this as convenient as possible. •... -
Page 21: Trouble Shooting
Trouble Shooting ● Verify you have the right power cord or adapter. Never use a power supply or adapter with a non-compliant DC output voltage or it will burn the equipment. ● Select the proper UTP or STP cable in order to construct the network. Use an unshielded twisted- pair (UTP) or shield twisted-pair (STP) cable for RJ-45 connections: 100Ω...
