Dorel Home Products 4374439N Manual

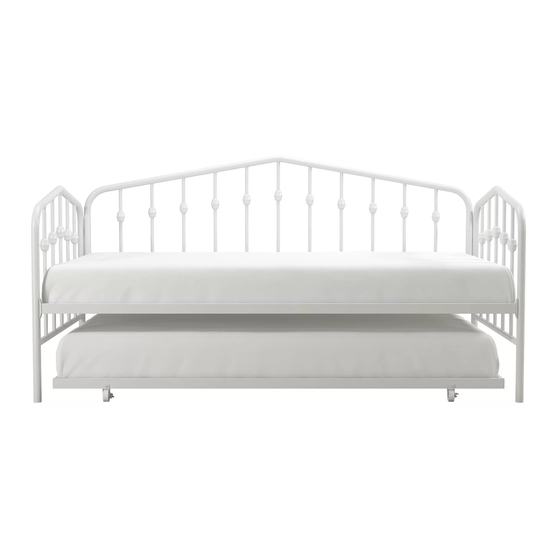

Metal daybed and trundle twin
Hide thumbs

Advertisement

Quick Links

Download this manual
Weight Limit:
Daybed: 400 Lb / 181 Kg
Trundle: 250 Lb / 113 Kg
Z.W. - 2019/3/25
2014 Dorel Home Products All Rights Reserved
Metal Daybed and Trundle
Thank you for purchasing from DHP!
DO NOT RETURN TO THE STORE !
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Visit www.dhpfurniture.com/eng/replacement-parts
or call Toll-Free 1-800-267-1739
Date of Purchase
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
4374439N
Lot Number
B344374439N00
Twin
Gray
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 4374439N and is the answer not in the manual?

Questions and answers

Related Manuals for Dorel Home Products 4374439N

Summary of Contents for Dorel Home Products 4374439N

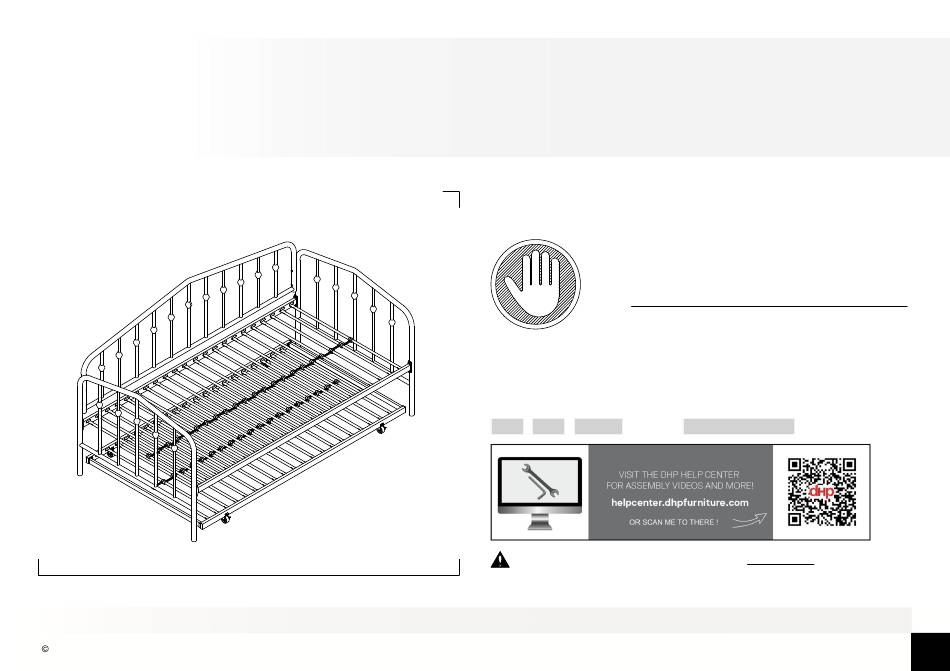

  • Page 1 Visit www.dhpfurniture.com/eng/replacement-parts or call Toll-Free 1-800-267-1739 Date of Purchase Lot Number THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. B344374439N00 Z.W. - 2019/3/25 2014 Dorel Home Products All Rights Reserved...

  • Page 2: Warranty Information

    Warranty Information Read Before Beginning Assembly DHP warrants this product to be free from defects in material and workmanship and Call our toll free number if you need assistance. agrees to remedy any such defect. This warranty covers one year from the date of Work in a spacious area and near where the unit will be used, preferably on a original purchase.
  • Page 3 Parts For Daybed Replacement Parts, visit www.dhpfurniture.com/eng/replacement-parts All in 1 big box! There are inner box(es) that include components required to complete this assembly. Before you throw the package, please use the Headboard Footboard Rear Guard Rail Side Rail Check Box to identify the parts and ensure that T974400 T974410 T974420...
  • Page 4 Parts For Trundle Replacement Parts, visit www.dhpfurniture.com/eng/replacement-parts All in 1 big box! There are inner box(es) that include components required to complete this assembly. Before you throw the package, please use the Side Rial End Rail Caster Slats Check Box to identify the parts and ensure that T974450 T974460 T949310...
  • Page 5 Hardware Pack For Daybed Hardware Pack #: T4374439N-00 5/16" 5/16" Spring Washer Metal Washer 5/16" X 1" 1/4" X 2 3/16" Please do not completely tighten all the hardware, until the entire assembly is complete, unless otherwise indicated in the step-by-step instructions.
  • Page 6 Hardware Pack For Trundle Hardware Pack #: T5585196-02 1/4" 1/4" X 5/8" 1/4" X 1 5/16" Wrench Please do not completely tighten all the hardware, until the entire assembly is complete, unless otherwise indicated in the step-by-step instructions. The screw(s), bolt(s) to be used at each step are shown in actual size in the lower right corner of the page.
  • Page 7 Step 1 The following instructions will illustrate how to assemble the Daybed from Step 1 to Step 4. Please use the Daybed Hardware Pack:T4374439N-00. Wide side of the slot should Attach J x 2 to T and T1 with be facing up !
  • Page 8 Step 2 Attach I to T and T1 with...
  • Page 9 Step 3 3.1 Insert O into J X 2 as illustrated. 3.2 Lock O into place with Y.
  • Page 10 Step 4 4.1 Press W onto O approximately in the middle of O as illustrated. 4.2 Attach Q to W alternating left and right as illustrated.
  • Page 11 Step 5 The following instructions will illustrate how to assemble the Trundle from Step 5 to Step 9. Please use the Trundle Hardware Pack:T5585196-02. Attach N x 2 to one E with The Lever "OFF" should be oriented on the same side of slat slots.
  • Page 12 Step 6 Attach N x 2 to the other E with Wide side of the slot should be facing up !
  • Page 13 Step 7 Attach M x 2 to E x 2 with...
  • Page 14 Step 8 8.1 Insert O into E X 2 as illustrated. 8.2 Lock O into place with Y.
  • Page 15 Step 9 9.1 Press W onto O approximately in the middle of O as illustrated. 9.2 Attach Q to W alternating left and right as illustrated.

  • Page 16: Helpful Hints

    Helpful Hints How to lock caster! How to unlock caster! To use Trundle: Pull out the trundle completely from underneath daybed. Once positioned, make sure casters are locked by pushing down the lever " " as illustrated "How to lock caster!".
  • Page 17 Helpful Hints Helpful Hints Weight Limit: Daybed: 400 Lb / 181 Kg Trundle: 250 Lb / 113 Kg Move your new furniture carefully, with two people lifting and carrying the unit to its new location. Your DHP furniture can be disassembled and reassembled to move.
  • Page 18 4374439N NO LO REGRESE A LA TIENDA ! Si le faltan piezas o las que se incluyen est n da adas, con Metal Daybed And Trundle mucho gusto le enviaremos sus piezas de reemplazo sin cargo extra. Individual Visite www.dhpfurniture.com/spa/replacement-parts...
  • Page 19 Partes Instrucciones Paso 1 Piezas de reemplazo, visite www.dhpfurniture.com/spa/replacement-parts Las instrucciones siguientes ilustrar n c mo ensamblar el Div n del Paso 1 al Paso 4. Utilice el paquete Daybed Hardware: T4374439N-00. Todo se incluye en 1 caja grande! , , . Una J x 2 con T y T1 con Paso 2 Hay 1 caja(s) interna(s) que incluyen los componentes necesarios para...
  • Page 20 L mites de peso: Cama: 400 Lb / 181 Kg Cama deslizable: 250 Lb / 113 Kg Consejos tiles Mueva sus muebles nuevos con cuidado, con dos personas levantando y llevando el aparato a su nueva ubicaci n. Sus muebles DHP se pueden desmontar y volver a ensamblar en caso de mudanza.

  • Page 21: Avant De Commencer L'assemblage

    4374439N NE RETOURNEZ PAS AU MAGASIN ! Si une pi ce est manquante ou endommag e, nous vous Metal Daybed And Trundle exp dierons avec plaisir vos pi ces de remplacement gratuitement. Lit une place Visitez www.dhpfurniture.com/fre/replacement-parts Gris ou appelez au 1-800-267-1739...
  • Page 22 Pi ces Instructions tape 1 Pi ces de rechange, visitez www.dhpfurniture/fre/replacement-parts Les instructions suivantes illustrent comment assembler la Mer dienne de l' tape 1 l' tape 6. s'il vous pla t utiliser le Pack M ridienne: T4374439N-00. Tout dans 1 grosse bo te! , , .

  • Page 23: Conseils Utiles

    Limite de Poids: Lit d'appoint: 400 Lb / 181 Kg Lit gigogne: 250 Lb / 113 Kg Conseils utiles D placez votre nouveau mobilier avec soin, nous recommandons deux personnes pour soulever et transporter le mobilier vers son nouvel emplacement. Votre mobilier DHP peut tre d mont et reassembl pour faciliter les d m nagements.
