Non-drainage
If you choose non-drainage when cooling, both the bottom and the back drain holes of the unit should be plugged with rubber
plugs. The condensed water will be sprayed to condenser, and will improve the cooling performance.
NOTE: When you choose non-drainage, the air conditioner will be perfect cooling efficiency, but big noise may be caused by spr-
aying the condensed water. Please do not choose it if you are sensitive to the noise.
Note on the product
•
The rated cooling performance is tested under non-drainage status.
•
Make sure that water will not leak from the surrounding area when rubber plug and joint were used. Please seal it in case
leakage is found.

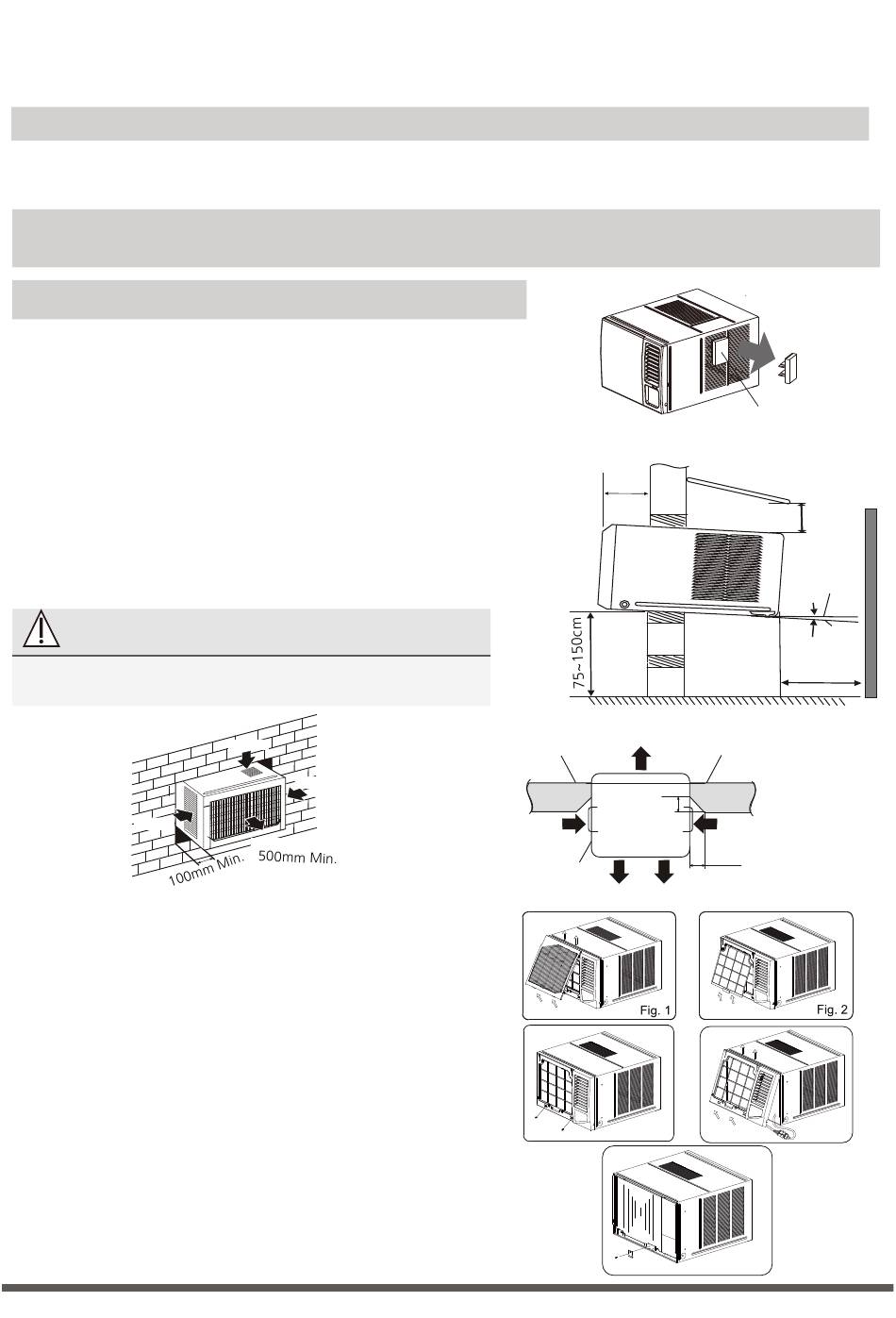

INSTALLATION INSTRUCTIONS
Prior to installation
CAUTION: Before installing, remove all packaging from
inside the carton, along with any inserts placed into the
side louvers.
Step 1: Select the best location
1. To avoid vibration and noise, make sure the unit is installed securely and firmly.
2. Install the unit where the sunlight does not shine directly on the unit. If the unit
receives direct unlight, build an awning to shade the cabinet.
3. There should be no obstacle, such as a fence or wall, within 50cm from the
back of the cabinet because it will prevent heat radiation of the condenser.
Restriction of outside air will greatly reduce the cooling and heating efficiency
of the air conditioner.
4. Install the unit a little obliquely downward to outside not to leak the condensed
water into the room (about 5~7mm).
5. Install the unit with its bottom portion 75~150cm above the floor level.
6. The power cord must be connected to an independent circuit. The yellow/
green wire must be grounded.
CAUTION
All side louvers of the cabinet must remain exposed
to the outside of the structure.
Option A
Air in
Step 2: Remove the front panel and air filter
1. Take out the air conditioner from it's packaging.
2. Hold the slot under the front panel, then uplift it outwards, and
remove the front panel( See Fig. 1)
3. Grip the tab on the end of the filter, lift it up, then pull it towards
yourself, pull the filter out(see Fig.2)
Step 3: Remove the frame
1. Remove two screws at the bottom of the frame.( See Fig. 3)
2. Disconnect the coupler plugs and make sure not to interfere with
the temperature sensor cable. Hold the left bottom side of the
frame, lift it up to unlatch the lower side, remove it toward you
( See Fig. 4)
NOTE:
For some units the front panel and frame do not install on the
machine placed at the back of the unit, step 2 and step 3 do not need.
Step 4: Remove the cabinet
NOTE: There are slight differences on removing the cabinet according
to the different models.
Model A:
1. Remove one screw securing the chassis fixing bracket, then take
down the chassis fixing bracket as shown in Fig.5A.
2. Grasp the handle on the chassis and carefully slide the air cond-
itioner out of the cabinet.(see Fig.6)
Air in
Air in
Air out
80mm or
more
Indoor
side
Option B
45 brick cut away
O
to clear louvers
Brick
wall
Air in
Louver
15
Remove inserts placed
into the side louvers
Wall
Awning
300mm or more
Outdoor
About 5~7mm
side
45 brick cut away
O
to clear louvers
Front
Brick
wall
100mm
Top View
Air in
100mm
Air out
Fig.3
Fig.5A-ModelA
Fence
Level
Unit
500mm or more
Fig.4
