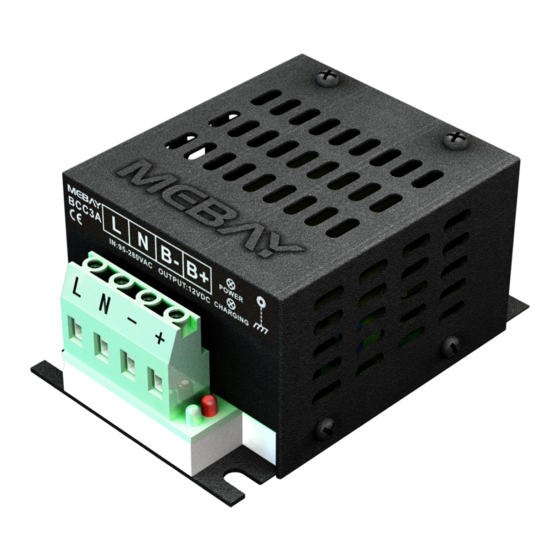

- Page 1 BCC3A BATTERY CHARGER USER MANUAL Software Version Date Note Version V1.0 2020-05-06 Original release.
- Page 2 BCC3A BATTERY CHARGER USER MANUAL Symbol Description Symbol Description Remind operators to operate correctly, otherwise it may cause the equipment not to work correctly. Note It is indicated that potential hazards can damage equipment without proper precautions. Be care It is indicated if appropriate preventive measures are not taken,...
- Page 3 BCC3A BATTERY CHARGER USER MANUAL Warning 1. The installation of this equipment must be carried out by professionals. 2. When installing and operating the Charger, please read the entire instruction manual first. 3. Any maintenance and commissioning of the equipment must be familiar with all the equipment, safety standards and precautions in advance, otherwise it may cause personal injury or damage to related equipment.
- Page 4 1. All rights reserved. No part of this duplication may be reproduced in any material form (including photocopying or storing in any medium by electronic means or others) without the written permission of the copyright holder. 2. MEBAY Technology reserves the rights to change the contents of this document without prior notice. Summary The charger is specially designed for the lead-acid battery used in the engine.
- Page 5 BCC3A BATTERY CHARGER USER MANUAL Max. Input Current Max. Efficiency Charging Current 3A (Error±5%) Output Max. Power No-load Voltage 13.8V, (Error ±1%) Between input and output, input and shell both Insulation Resistance are: DC500V 1min R >500MQ Insulation Between input and output, input and shell both...
- Page 6 BCC3A BATTERY CHARGER USER MANUAL Installation size as below: W44mm * H77mm 43.5 76.25 withstand and voltage test If you need to test the system voltage withstand, please disconnect all the charger terminals to avoid high voltage into the damaged charger.
