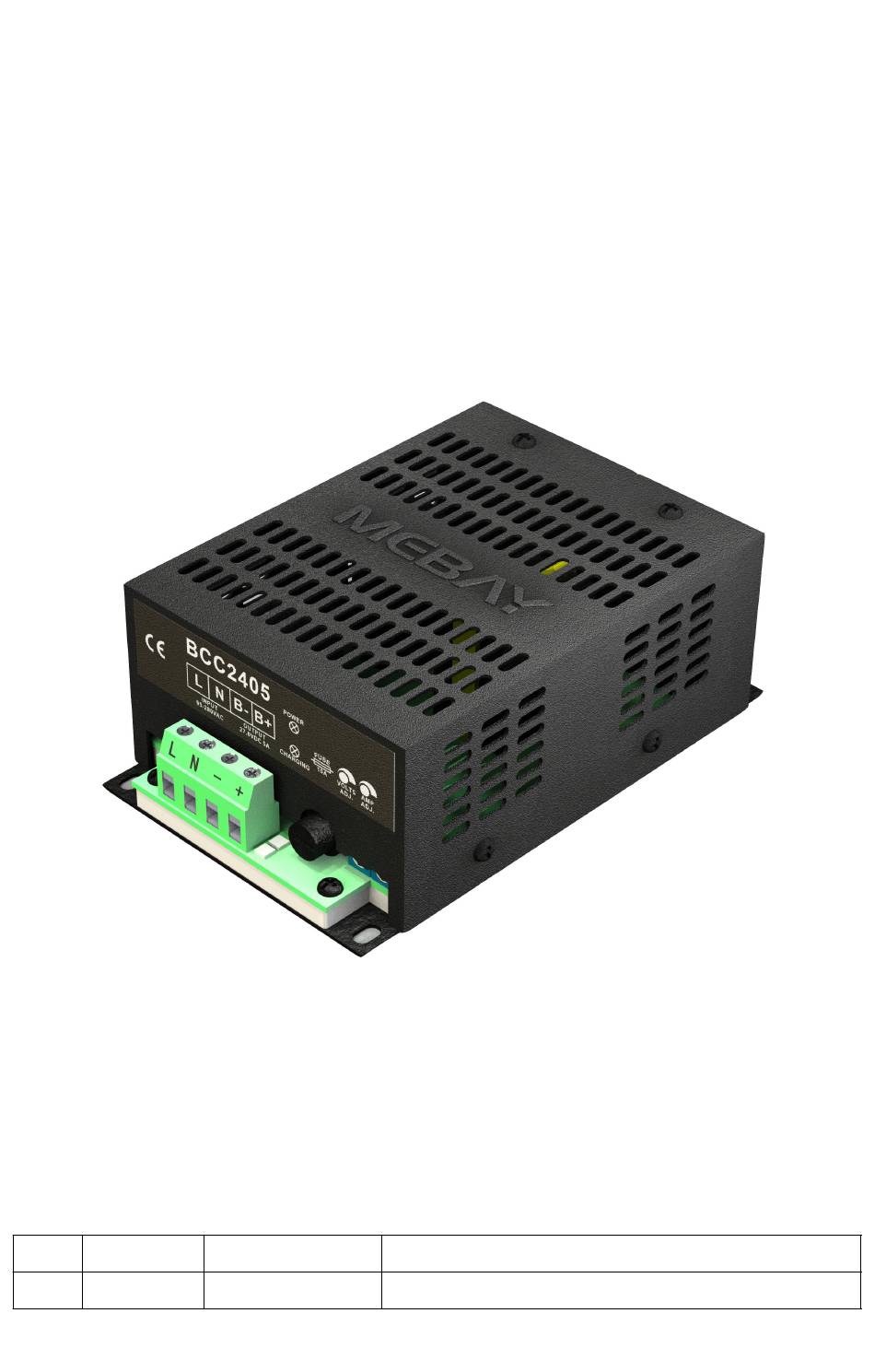

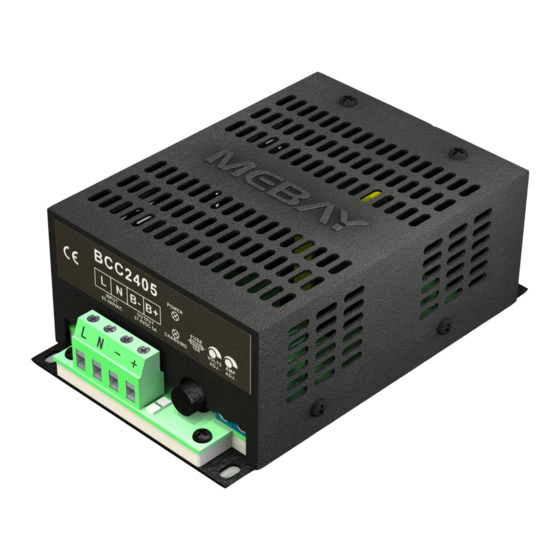

- Page 1 BCC2405 BATTERY CHARGER USER MANUAL Software Version Version Date Note V1.0 2019-12-01 Original release.
- Page 2 BCC2405 BATTERY CHARGER USER MANUAL Symbol Description Symbol Description Remind operators to operate correctly, otherwise it may cause the equipment not to work correctly. Note It is indicated that potential hazards can damage equipment without proper precautions. Be care It is indicated if appropriate preventive measures are not taken,...
- Page 3 BCC2405 BATTERY CHARGER USER MANUAL Warning 1. The installation of this equipment must be carried out by professionals. 2. When installing and operating the Charger, please read the entire instruction manual first. 3. Any maintenance and commissioning of the equipment must be familiar with all the equipment, safety standards and precautions in advance, otherwise it may cause personal injury or damage to related equipment.
- Page 4 1. All rights reserved. No part of this duplication may be reproduced in any material form (including photocopying or storing in any medium by electronic means or others) without the written permission of the copyright holder. 2. MEBAY Technology reserves the rights to change the contents of this document without prior notice.
- Page 5 BCC2405 BATTERY CHARGER USER MANUAL Summary The charger is specially designed for the lead-acid battery used in the engine. It adopts the three-stage intelligent control mode of constant current fast charging, current limiting and trickle floating charging. It can be charged for a long time without damage to the battery.
- Page 6 BCC2405 BATTERY CHARGER USER MANUAL Max. Input Power 165W Max. Input Current Max. Efficiency Rated output current 5A (Error ±2%) Output Max. Power 135W No-load Voltage 27.6V, (Error ±1%) Between input and output, input and shell both Insulation Resistance are: DC500V 1min R >500MQ...
- Page 7 BCC2405 BATTERY CHARGER USER MANUAL Descriptions of terminal connection Cable cross Function Description sectional area AC input L 1.0mm AC input, MAX AC95-280V. AC input N 1.0mm Battery B- 1.5mm Battery positive and negative Battery B+ 1.5mm Installation instruction ...
- Page 8 BCC2405 BATTERY CHARGER USER MANUAL POWER indicator function description Indicator Status Mani function Illuminated The charger works normally. Eliminated The charger is not energized or failed. CHARGING indicator function description Indicator Status Main function Illuminated The charger is in charging state, and the output current is >0.5A.
