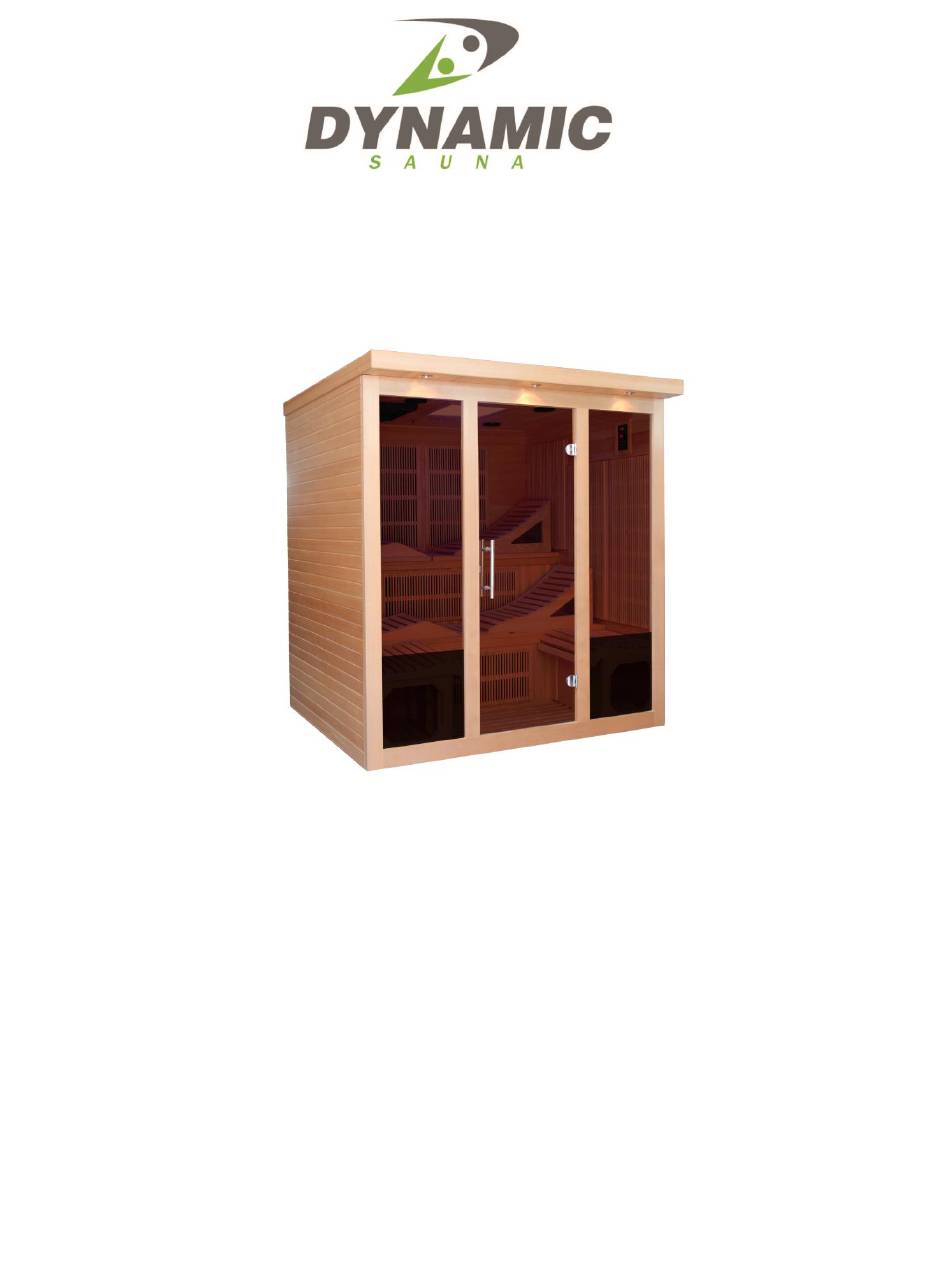

OWNER'S MANUAL

INFRARED CARBON MODEL SAUNA

FOR INDOOR USE ONLY

REQUIRES 2 SEPARATE DEDICATED 120V/20 AMP OUTLETS

Carefully and thoroughly read this Owner's Manual before using/operating the

sauna. We recommend keeping this Owner's Manual for regular review and future

reference.

Model DYN-6996-01 / DYN-6996-01 (HSF)

6 Person Sauna

Table of Contents

Need help?

Do you have a question about the DYN-6996-01 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dynamic DYN-6996-01

Page 1 Model DYN-6996-01 / DYN-6996-01 (HSF) 6 Person Sauna OWNER’S MANUAL INFRARED CARBON MODEL SAUNA FOR INDOOR USE ONLY REQUIRES 2 SEPARATE DEDICATED 120V/20 AMP OUTLETS Carefully and thoroughly read this Owner’s Manual before using/operating the sauna. We recommend keeping this Owner’s Manual for regular review and future...
Page 2: Table Of Contents
TABLE OF CONTENTS Packing List Visual Assembly Diagrams Parts Description Assembly Instructions Operating the Sauna Tips for Using Your Sauna Safety Instructions Safeguards for Your Sauna Troubleshooting Guide Warranty Warranty Card WARNING: Visually inspect all heaters before assembly to make sure they are not damaged.
Page 3 What Are Infrared Rays? Infrared is the band of light we perceive as heat. We cannot see this band of light with the naked eye, but we can feel this type of light in the form of heat. Our sun produces most of its energy output in the infrared segment of the spectrum.
Page 4 EMF Levels from Common Homes Sources After many years and numerous studies on EMF exposure, no government body including the Occupational Safety and Health Administration (OSHA) have established permissible exposure limits (PEL). Currently, there is no consensus on the potential health hazard from any exposure to EMF.
Page 5 HOW IT WORKS Infrared Saunas differ from traditional saunas in that they use infrared radiant energy to directly penetrate into the body's tissue to produce perspiration. Traditional saunas use steam to heat the air inside the sauna, which then heats your body until you begin to perspire.
Page 6: Visual Assembly Diagrams
*PLEASE READ INSTRUCTIONS B E F O R E ASSEMBLY* Visual Assembly Diagram DYN-6996-01 *The above assembly diagram is a quick reference visual guide only. All sauna models are not shown. Model types, parts, and accessories may vary.
Page 7 *PLEASE READ INSTRUCTIONS B E F O R E ASSEMBLY* Visual Interior Diagram DYN-6996-01 *The above assembly diagram is a quick reference visual guide only. All sauna models are not shown. Model types, parts, and accessories may vary.
Page 8: Parts Description
PARTS DESCRIPTION DYN-6996-01 NOTE: The pictures and diagrams shown within this owner’s manual are representations of this model. Actual model may vary. Design and Construction are subject to change. Backrests are sold separately.
Page 9 Highlights I. Power Supply (Control Box) The POWER SUPPLY is the control center of the sauna room. It is installed on the topside of the ROOF PANEL and has inputs/outputs connected to it. (see Figure 1) Figure 1 POWER IN - main power of the sauna room HT1, HT2, HT3, HT4, HT5, HT6 –...
Page 10 III. Component Labeling Power Cord – Main power cord connects the POWER SUPPLY to the dedicated wall outlet HT1, HT2, HT3, HT4, HT5, HT6 – Heater cords connect the heat emitters to the POWER SUPPLY at these ports (HT5 & HT6 are not used on most models) Lighting –...
Page 11 V. Panel Descriptions For easier installation, please understand and distinguish the differences between each panel. A. Floor Panel When the FLOOR PANEL faces upward, you will find (3) heat emitter panels in the center of the FLOOR PANEL and a power cord at the rear. (see Figure 4) Figure 4 B.
Page 12: Assembly Instructions
Assembly Instructions A. Choose a good location to install the sauna 1. The location must be dry, leveled, and away from any source of water 2. MAIN POWER cord must be easily accessible 3. Two adults are required for installation 4.
Page 13 Installing the LOWER BENCH HEATER PANEL and WOOD BRACE (fixed frame) 1. Insert the correct LOWER BENCH HEATER PANEL. Please note that the LOWER BENCH HEATER PANEL and and MIDDLE LEVEL BENCH HEATER PANEL are not the same. Proceed in inserting the WOOD BRACE (fixed frame).
Page 14 E. Installing the MIDDLE LEVEL BENCH HEATER PANEL 1. Insert the MIDDLE BENCH HEATER PANEL and connect the MIDDLE LEVEL BENCH HEATER into the rear wall outlet. (see Figure 10) Figure 10 F. Installing the CENTER BENCH GUIDES and BENCHES (large) 1.
Page 15 Figure 11 Figure 12 Figure 13...
Page 16 G. Installing the LOWER BENCH SUPPORTS and LOWER BENCHES 1. Place the LOWER BENCH SUPPORTS as seen in Figure 14. Do not screw in the LOWER BENCH SUPPORTS until after the FRONT WALL PANEL is installed. 2. Next, place the LOWER BENCHES onto the top of the LOWER BENCH SUPPORTS.
Page 17 H. Installing the FRONT WALL PANEL Place the FRONT WALL PANEL up against the FLOOR PANEL. Attach the FRONT WALL PANEL to the SIDE PANELS using the guide and guide inserts as seen in Figure 16. After the FRONT WALL PANEL is installed, the LOWER BENCH SUPPORTS can be screwed in.
Page 18 Figure 17 J. Connecting the plugs on the ROOF PANEL 1. Connect the plugs according to the respective labels. (see Figure 12 & 13) 2. Connect the CTRL connection from the power supply to the CTRL connection from the control panel. (see Figure 12 & 13) Before Connecting After Connecting Figure 12...
Page 19 K. Installing the TEMPERATURE SENSOR 1. Enter the sauna and remove the protective covering from the TEMPERATURE SENSOR. Situate the TEMPERATURE SENSOR so that it is vertical, pointing downward. (see Figure 22) Figure 22 Note: Some sauna models are shipped with a spare TEMPERATURE SENSOR in case the TEMPERATURE SENSOR is damaged in transit.
Page 20 Figure 23 Figure 24 Figure 25...
Page 21 Figure 26 M. Installing the Monitor (optional) 1. If the 15” Monitor is already installed, please proceed to Step L. 2. Locate the 15” Monitor. Open the Monitor up and locate the screw holes. You will need to mount the unit to the metal plate that is already attached to the ceiling using the provided screws.
Page 22 “DYN-6996-01 and GDI-6996-01 Monitor Interference Resolution” at the website link below: https://www.youtube.com/watch?v=qalKIZkm0_k Figure 27 N. Putting on the ROOF COVER 1. Place the ROOF COVER over the top of the sauna. Take care in pulling the power cord through the hole in the roof cover.
Page 23 O. Installing the FRONT GLASS DOOR HANDLE Next, the inner and outer door handles need to be mounted to the GLASS DOOR. Please see Figure 29 and Figure 30. The GLASS DOOR must sit between the (2) white washers. The screws are inserted from the inside of the GLASS DOOR and screwed into the outer handle.
Page 24: Operating The Sauna
Figure 32 Assembly Completed! Operating the Sauna NOTE: Before the sauna is turned on, remove plastic protective covering from the CONTROL PANELS. Please check and confirm that the connections to the POWER SUPPLY, HEAT EMITTERS, CD/RADIO, and TEMPERATURE SENSOR are connected properly.
Page 25 CONTROL PANEL Power : Press to control the main power of the sauna (also turns the DVD player ON/OFF) TFT Power ON/OFF: Press to turn ON/OFF the DVD display screen Power Indicator: Indicates the status of the sauna’s main power Work Start/Stop: Press to control the working functions of the sauna Work Indicator: Indicate the working status of the sauna Heat Indicator: Indicate the status of heating function...
Page 26 TEMPERATURE DISPLAY to adjust the temperature setting. Once you have set these adjustments to the desired settings, press the START/WORK button. If you don’t press the button for 5 seconds, the control panel will stop flashing and the set-up values will be memorized. The WORK and HEAT lights will now be on and the emitters will now be generating heat.
Page 27 Chromotherapy/Color Therapy Lighting (optional) can be operated as follows. First, you will need to install the battery. Once the battery has been inserted into the remote, you are ready to operate the chromotherapy/color therapy lighting system. Press the READING LIGHT button on the sauna control panel.
Page 28: Tips For Using Your Sauna
off as the sauna room will never achieve 151 degrees F / 66 degrees C. After 3 hours of continuous use, the sauna needs to be shut down for one hour. Use 2 towels during your sauna session. Fold the first towel several times and place it on the bench.
Page 29: Safety Instructions
9. To utilize the sauna’s heat therapy effect, put oil and treatment into your hair and wrap it with a towel. After your sauna session is over, rinse your hair thoroughly. 10. The peaceful and relaxed state rendered by a sauna session may help you to sleep easier and deeper.
Page 30 the sauna. Some medications may induce drowsiness while other may affect the heart rate, blood pressure, and/or blood circulation. 10. Use care when exercising before and after sauna use. 11. Never sleep inside the sauna 12. Do not use any type of cleaning agents on the interior of the sauna. Only wipe down the sauna room with water and a damp cloth.
Page 31: Safeguards For Your Sauna
Safeguards For Your Sauna 1. Do not install the sauna near water, near a bathtub (if water will splash on the sauna), near a shower (if water will splash on the sauna), in a wet basement, or near a swimming pool (if water will splash on the sauna). 2.
Page 32 that the heat emitter cords are properly connected snug and tight. If the issue continues, then the particular heat emitter may be damaged. Do not continue to operate. Contact the manufacturer for replacement parts. Solution: If the heat emitters are not working and there is a “-L” for the temperature reading, then the temperature sensor may not be plugged in properly or it may be damaged or the power supply may be defective.
Page 33 Before contacting Customer Service, remove the wood frame holding the control panel in place to gain access to the “CTRL” connection behind the control panel. Once you remove the control panel from the wall panel, you can disconnect and reconnect the connection making sure it is snug and tight.
Page 34 4. The individual watching the control panel can let you know if the "-L" ever changed. If the "-L" is still displayed on the control panel, then we need to rule out a control panel issue. Please proceed to Step B. Step B: 1.
Page 35 6. Bluetooth Solution: Please note that you can only have a single device connected to the Bluetooth at any given time. You must unpair your device before connecting with another device. To do a master reset of the Bluetooth, you will need to unplug the sauna power cord from the wall outlet for 15 minutes.
Page 36 10. Lower Heat Emitters Solution: With regards to the lower heat emitters under the bench and on the floor, these heat emitters operate a bit different than the wall heat emitters. As the bench heat emitter and floor heat emitter (200W/125W each) are of much less wattage than the wall heat emitters (300W each), they will not get nearly as hot as the wall heat emitter panels.
Page 37 is fitting together like a puzzle as one wall panel fits into the other. Work your way down from top to bottom. 12. Too Much Perspiration On The Floor Heater Solution: Use 2 towels during your sauna session. Fold the first towel several times and place it on the bench.
Page 38 Extent of Warranty: This limited warranty applies to products manufactured or distributed by Golden Designs, Inc. under the Dynamic brand name, delivered in the continental United States or Canada and extends to the original purchaser at the original site of installation only.
Page 39: Warranty
approved surfaces  Outdoor applications  Normal wear and tear or weathering  Use of product not in accordance with instructions  Worn out receptacle Surface cracks are not considered defects in material or workmanship, as they are normal characteristics of all woods. This includes minor cracks due to wood expansion and contraction.
Page 40 PAGE INTENTIONALLY LEFT BLANK...
Page 41 WARRANTY CARD Congratulations on your purchase of an Infrared Sauna from Golden Designs, Inc. Please take the time to complete the following Warranty Card and mail it back to: Golden Designs, Inc. 3550 Jurupa Street, Unit B Ontario, CA 91761 Please include a copy of your sales receipt showing date of purchase as this will serve as proof of purchase.
