Page 1 60W-E Wood Operation Manual 匯出日期：2023-02-19 修改日期：2020-11-24...
Page 2 机床产品/Machine Tool Products – 60W-E Wood Operation Manual Manual Hardware 60W-E ( Serial-bus controller )
Page 3: Software Spec
机床产品/Machine Tool Products – 60W-E Wood Operation Manual 1 Software Spec. Item...
Page 4 机床产品/Machine Tool Products – 60W-E Wood Operation Manual 2 Manual Objective Machine This Operation Manual is suitable for Syntec SCD-60WA and FC-60WA controller.
Page 5: Main Screen
机床产品/Machine Tool Products – 60W-E Wood Operation Manual 3 Fenu and System Introduction 3.1 Main Screen...
Page 6 机床产品/Machine Tool Products – 60W-E Wood Operation Manual 3.2 Function key Tree 3.3 Operator Panel (MainFenu: F1)
Page 7 机床产品/Machine Tool Products – 60W-E Wood Operation Manual Part Item G-code State/Coordinate...
Page 8 机床产品/Machine Tool Products – 60W-E Wood Operation Manual Adjust selected item be later...
Page 9 机床产品/Machine Tool Products – 60W-E Wood Operation Manual 3.3.3 Operator Panel-F3: File Manage •...
Page 10 机床产品/Machine Tool Products – 60W-E Wood Operation Manual Reset List Before After...
Page 11 – 60W-E Wood Operation Manual 3.3.5 Operator Panel-NEXT-F1: Back to Break Point •...
Page 12 机床产品/Machine Tool Products – 60W-E Wood Operation Manual • When a unexpected event happen that cause a break to the processing file and you don't wanna do the whole process again •...
Page 13 机床产品/Machine Tool Products – 60W-E Wood Operation Manual • The items in the folder will show on workinglist •...
Page 14 – 60W-E Wood Operation Manual Set Repeat Times for the Same File •...
Page 15 机床产品/Machine Tool Products – 60W-E Wood Operation Manual 3.4.1 NCfile Extension Name Setting •...
Page 16 机床产品/Machine Tool Products – 60W-E Wood Operation Manual Setting Ways • There are 3 ways provided to set the double sort function.
Page 17 机床产品/Machine Tool Products – 60W-E Wood Operation Manual Test Example Sort Result •...
Page 18 机床产品/Machine Tool Products – 60W-E Wood Operation Manual Test Example Sort Result •...
Page 19 机床产品/Machine Tool Products – 60W-E Wood Operation Manual 3.4.6 Workinglist Q&A Question...
Page 20: Delete Line
– 60W-E Wood Operation Manual With 【Page Up】【Page Down】to switch the pages.
Page 21 机床产品/Machine Tool Products – 60W-E Wood Operation Manual • Quick search for every occurrence of a specific word or phrase and automatically replace text.
Page 22 机床产品/Machine Tool Products – 60W-E Wood Operation Manual 3.5.4 Can Cycle •...
Page 23: Block Copy
机床产品/Machine Tool Products – 60W-E Wood Operation Manual • Function • Edit the current cycle.
Page 24 机床产品/Machine Tool Products – 60W-E Wood Operation Manual End Line • Command •...
Page 25 机床产品/Machine Tool Products – 60W-E Wood Operation Manual 3.5.6 Teach • Command •...
Page 26 机床产品/Machine Tool Products – 60W-E Wood Operation Manual Arc Cut Teach •...
Page 27 机床产品/Machine Tool Products – 60W-E Wood Operation Manual 3.5.7 Simulation • Command •...
Page 28 机床产品/Machine Tool Products – 60W-E Wood Operation Manual • 8 Buttons type: F2 Program→F7 Simulation→F2 Continue •...
Page 29 机床产品/Machine Tool Products – 60W-E Wood Operation Manual • Command • 5 buttons type: F2 Program→F5 Simulation→F5 Simu. Setting •...
Page 30: File Manager
机床产品/Machine Tool Products – 60W-E Wood Operation Manual • Vertical • Horizontal Scope •...
Page 31: Delete File
机床产品/Machine Tool Products – 60W-E Wood Operation Manual New File • Command •...
Page 32 机床产品/Machine Tool Products – 60W-E Wood Operation Manual File Import • Command •...
Page 33 机床产品/Machine Tool Products – 60W-E Wood Operation Manual • Device Change: Change outer device selection.
Page 34 机床产品/Machine Tool Products – 60W-E Wood Operation Manual • Offset/Setting function setup are under this fenubar group •...
Page 35 机床产品/Machine Tool Products – 60W-E Wood Operation Manual Not able to modify：...
Page 36 机床产品/Machine Tool Products – 60W-E Wood Operation Manual • 5 key, 8 key：F3 Offset/Setting→F1 Workpiece Coord.→F3 Aux. Coord. Teach •...
Page 37 机床产品/Machine Tool Products – 60W-E Wood Operation Manual Input the teaching value Press "Mach.
Page 38 – 60W-E Wood Operation Manual For controller software versions above 10.116.34(included), first move cursor to "Workpiece Coord.
Page 39 机床产品/Machine Tool Products – 60W-E Wood Operation Manual 3.6.3 Single-axis tool table (default): •...
Page 40 机床产品/Machine Tool Products – 60W-E Wood Operation Manual • Press【A】and press【Enter】 •...
Page 41 机床产品/Machine Tool Products – 60W-E Wood Operation Manual 3.6.4 Multi Z-axis tool table: •...
Page 42 机床产品/Machine Tool Products – 60W-E Wood Operation Manual • Press【A】and press【Enter】 •...
Page 43: User Parameter Setting
机床产品/Machine Tool Products – 60W-E Wood Operation Manual 3.6.6 User Parameter Setting •...
Page 44 机床产品/Machine Tool Products – 60W-E Wood Operation Manual F3：MDI Input Explanation：Edit MDI program under MDI state.
Page 45 机床产品/Machine Tool Products – 60W-E Wood Operation Manual • F6：Start MPG Shift Function：Enable the MPG Shift function...
Page 46 机床产品/Machine Tool Products – 60W-E Wood Operation Manual 3.7.1 Monitor Area of Machining Information Machine Status Monitor •...
Page 47 机床产品/Machine Tool Products – 60W-E Wood Operation Manual • Total machining process time Percentage ratio •...
Page 48: Parameter Set
机床产品/Machine Tool Products – 60W-E Wood Operation Manual • Required part •...
Page 49 机床产品/Machine Tool Products – 60W-E Wood Operation Manual • 10+8 key: G4 Monitor → F4 Param. Set •...
Page 50: History Alarm
机床产品/Machine Tool Products – 60W-E Wood Operation Manual • This function page displays system alarms, network settings, fast diagnosis, PLC parameter settings, and controller software information.
Page 51 机床产品/Machine Tool Products – 60W-E Wood Operation Manual • Descriptions Alarm Analysis page has two parts: ...
Page 52 – 60W-E Wood Operation Manual 5 key, 8 key: F5 Maintain → F1 Alarm → F4 Analyze All •...
Page 53 机床产品/Machine Tool Products – 60W-E Wood Operation Manual • Enter the applicable IP address in the domain Subnet Mask •...
Page 54 – 60W-E Wood Operation Manual F5 Maintain → F2 Set Kernel Server → F5 Set Kernel Server → F1 Start Server •...
Page 55 机床产品/Machine Tool Products – 60W-E Wood Operation Manual • Doing a network test according to the IP address, and display the test result on the screen •...
Page 56 机床产品/Machine Tool Products – 60W-E Wood Operation Manual • Appendix2 : Version...
Page 57 机床产品/Machine Tool Products – 60W-E Wood Operation Manual • All setting changes take effect after reboot.
Page 58: System Data
机床产品/Machine Tool Products – 60W-E Wood Operation Manual System Data • Path 5 key, 8 key: F5 Maintain →...
Page 59 机床产品/Machine Tool Products – 60W-E Wood Operation Manual Axes Data • Path 5 key, 8 key: F5 Maintain →...
Page 60: Plc Parameter
机床产品/Machine Tool Products – 60W-E Wood Operation Manual 3.8.4 PLC Parameter •...
Page 61: System Setting
机床产品/Machine Tool Products – 60W-E Wood Operation Manual 3.8.5 System Setting •...
Page 62 机床产品/Machine Tool Products – 60W-E Wood Operation Manual Set MMIConfig • Path 5 key, 8 key: F5 Maintain →...
Page 63 机床产品/Machine Tool Products – 60W-E Wood Operation Manual • The setting only takes effect after reboot My Favor •...
Page 64: Backup System
机床产品/Machine Tool Products – 60W-E Wood Operation Manual 3.8.6 Backup System •...
Page 65 机床产品/Machine Tool Products – 60W-E Wood Operation Manual 3.8.7 System Permissions •...
Page 66 机床产品/Machine Tool Products – 60W-E Wood Operation Manual • 5 keys: F5 Maintain → Next → F3 Use Time Setting •...
Page 67: Forget Password
机床产品/Machine Tool Products – 60W-E Wood Operation Manual • Enter user account and password to login the system.
Page 68: User Authority
机床产品/Machine Tool Products – 60W-E Wood Operation Manual User Authority • Path 5 key: F5 Maintain →...
Page 69 机床产品/Machine Tool Products – 60W-E Wood Operation Manual Normal Axis Information Normal Axis •...
Page 70 机床产品/Machine Tool Products – 60W-E Wood Operation Manual • Displays invalid content as N/A.
Page 71 机床产品/Machine Tool Products – 60W-E Wood Operation Manual • Explanation • Display information of SPLCA axis.
Page 72 – 60W-E Wood Operation Manual 8 key: F5 Maintain → Next → F8 About → F2 Normal Axis Information → F4 ATC •...
Page 73: Fitting Information
机床产品/Machine Tool Products – 60W-E Wood Operation Manual • Displays invalid content as N/A.
Page 74 机床产品/Machine Tool Products – 60W-E Wood Operation Manual • Displays invalid content as N/A.
Page 75 机床产品/Machine Tool Products – 60W-E Wood Operation Manual • Editing authority management of machine builder information •...
Page 76 机床产品/Machine Tool Products – 60W-E Wood Operation Manual Product Registration(Warranty) • Path 5 key: F5 Maintain →...
Page 77 机床产品/Machine Tool Products – 60W-E Wood Operation Manual • Enter the page and wait for the controller to create 2D bar code.
Page 78 机床产品/Machine Tool Products – 60W-E Wood Operation Manual Delivery Backup • Path 5 key: F5 Maintain →...
Page 79 机床产品/Machine Tool Products – 60W-E Wood Operation Manual Online Service •...
Page 80 – 60W-E Wood Operation Manual 5 key: F5 Maintain → Next → Next → Next → F5 About → F6 Online Service •...
Page 81 机床产品/Machine Tool Products – 60W-E Wood Operation Manual View changes • Add SYNTEC Wechat official account (can be skipped if you already have our official account) •...
Page 82 机床产品/Machine Tool Products – 60W-E Wood Operation Manual • Scan 2D bar code Please select "客户专区"...
Page 83 机床产品/Machine Tool Products – 60W-E Wood Operation Manual • For Common user •...
Page 84 – 60W-E Wood Operation Manual Prepare an app with 2D bar code scanning function. (The apps showed on the controller screen are recommended.
Page 85 机床产品/Machine Tool Products – 60W-E Wood Operation Manual Option Setting • Path 5 key: F5 Maintain →...
Page 86 机床产品/Machine Tool Products – 60W-E Wood Operation Manual SynFactory Device Binding •...
Page 87 机床产品/Machine Tool Products – 60W-E Wood Operation Manual • From 10.118.32O, 10.118.40Q, 10.118.41Q, 10.118.48B, 10.118.49(included) 3.8.14 Alarm...
Page 88 机床产品/Machine Tool Products – 60W-E Wood Operation Manual • Attention • Some alarm types will not be recorded here, ex: MACRO alarm Save Alarm •...
Page 89 机床产品/Machine Tool Products – 60W-E Wood Operation Manual • Descriptions Alarm Analysis page has two parts: ...
Page 90: Network Setting
机床产品/Machine Tool Products – 60W-E Wood Operation Manual 3.8.15 Network Setting •...
Page 91 机床产品/Machine Tool Products – 60W-E Wood Operation Manual Set Kernel Server •...
Page 92 机床产品/Machine Tool Products – 60W-E Wood Operation Manual CloudAgent Setting • Path 5 key：F5 Maintain →...
Page 93 机床产品/Machine Tool Products – 60W-E Wood Operation Manual • Appendix1 : Version...
Page 94 机床产品/Machine Tool Products – 60W-E Wood Operation Manual Version Supplemental instruction From 10.118.44J, 10.118.46J, 10.118.48U,...
Page 95 机床产品/Machine Tool Products – 60W-E Wood Operation Manual • Require at least 20MB of memory space to start up OPCUA server.
Page 96 机床产品/Machine Tool Products – 60W-E Wood Operation Manual System Data • Path 5 key, 8 key: F5 Maintain →...
Page 97 机床产品/Machine Tool Products – 60W-E Wood Operation Manual Axes Data • Path 5 key, 8 key: F5 Maintain →...
Page 98 机床产品/Machine Tool Products – 60W-E Wood Operation Manual 3.8.17 PLC Param Setting •...
Page 99 机床产品/Machine Tool Products – 60W-E Wood Operation Manual 3.8.18 System Setting •...
Page 100 机床产品/Machine Tool Products – 60W-E Wood Operation Manual Set MMIConfig • Path 5 key, 8 key: F5 Maintain →...
Page 101 机床产品/Machine Tool Products – 60W-E Wood Operation Manual • The setting only takes effect after reboot My Favor •...
Page 102 机床产品/Machine Tool Products – 60W-E Wood Operation Manual 3.8.19 Backup System •...
Page 103 机床产品/Machine Tool Products – 60W-E Wood Operation Manual 3.8.20 About •...
Page 104 机床产品/Machine Tool Products – 60W-E Wood Operation Manual • F8 Maintain -> F8 About •...
Page 105 机床产品/Machine Tool Products – 60W-E Wood Operation Manual Key Selections: F1：PLC Status...
Page 106 – 60W-E Wood Operation Manual • Function: Display the component states of PLC and state of staircase chart.
Page 107 – 60W-E Wood Operation Manual • Function：Display current system data (refer to application manual for each corresponding meaning of the serial number.)
Page 108 机床产品/Machine Tool Products – 60W-E Wood Operation Manual 3.11 Sys. Admin (MainFenu: F8) F1：Install Software ...
Page 109: System Status
– 60W-E Wood Operation Manual 4 How to Operate 60 Series Controller 4.1 System Status...
Page 110: Machine Preparation
机床产品/Machine Tool Products – 60W-E Wood Operation Manual Conditions: • Executing M00 under "Busy" statue.
Page 111: Machining Process
机床产品/Machine Tool Products – 60W-E Wood Operation Manual • Condition: • System is on "Ready" state •...
Page 112: Workpiece Preparation
机床产品/Machine Tool Products – 60W-E Wood Operation Manual • Operation: Press 「CYCLE START」 button •...
Page 113 – 60W-E Wood Operation Manual Path: F3 Offset/Setting → F1 Workpiece Coord.
Page 114 机床产品/Machine Tool Products – 60W-E Wood Operation Manual • Length compensate +length wear = real G43/G44 compensate.
Page 115 机床产品/Machine Tool Products – 60W-E Wood Operation Manual Auto Tool Function •...
Page 116 机床产品/Machine Tool Products – 60W-E Wood Operation Manual • One Tool One Workpiece •...
Page 117 机床产品/Machine Tool Products – 60W-E Wood Operation Manual • One Tool One Workpiece is finished •...
Page 118 机床产品/Machine Tool Products – 60W-E Wood Operation Manual Z Delta set table •...
Page 119 机床产品/Machine Tool Products – 60W-E Wood Operation Manual Tool No. Setting This Chapter will describe how to set the tool No.
Page 120 – 60W-E Wood Operation Manual customer need to use this function, please contact to machine maker. ...
Page 121 机床产品/Machine Tool Products – 60W-E Wood Operation Manual • Maximum lifetime of tool.
Page 122 – 60W-E Wood Operation Manual F2( Continue ): Simulate the machining process F3( Zoom ): To zoom in/out the simulation.
Page 123 – 60W-E Wood Operation Manual Rotate the MPG and the value will be shown in the MPG shift window •...
Page 124: Alarm Processing
机床产品/Machine Tool Products – 60W-E Wood Operation Manual Required Part Count •...
Page 125 机床产品/Machine Tool Products – 60W-E Wood Operation Manual 4.4.6 Network Setting •...
Page 126 机床产品/Machine Tool Products – 60W-E Wood Operation Manual Set Kernel Server •...
Page 127 机床产品/Machine Tool Products – 60W-E Wood Operation Manual CloudAgent Setting • Path 5 key：F5 Maintain →...
Page 128 机床产品/Machine Tool Products – 60W-E Wood Operation Manual • Appendix1 : Version...
Page 129 机床产品/Machine Tool Products – 60W-E Wood Operation Manual Version Supplemental instruction From 10.118.44J, 10.118.46J, 10.118.48U,...
Page 130 机床产品/Machine Tool Products – 60W-E Wood Operation Manual • Require at least 20MB of memory space to start up OPCUA server.
Page 131 机床产品/Machine Tool Products – 60W-E Wood Operation Manual 4.4.7 PC Setting XP OS Guest account setting Log in as an Administrator and select "start"->...
Page 132 – 60W-E Wood Operation Manual 3. Click "OK" to confirm sharing setting; Select "Share this folder on the network", and "Allow network users to change my files".
Page 133 机床产品/Machine Tool Products – 60W-E Wood Operation Manual Setting PC name and workgroup "Start"->...
Page 134 – 60W-E Wood Operation Manual remember these setting contents to use later on when setting controller.
Page 135 机床产品/Machine Tool Products – 60W-E Wood Operation Manual • Jumper cable (without HUB), select "use the following IP address" and enter IP address (the forth number is different from controller setting) and Subnet mask (same with controller setting) •...
Page 136 机床产品/Machine Tool Products – 60W-E Wood Operation Manual VISTA OS Guest account setting Log in as Administrator and select "Start"...
Page 137 机床产品/Machine Tool Products – 60W-E Wood Operation Manual Click on "share this folder"...
Page 138 机床产品/Machine Tool Products – 60W-E Wood Operation Manual group permissions to maximum.
Page 139 – 60W-E Wood Operation Manual "Start" -> "control panel" -> "Network and Internet"->"Network and Sharing Center" ->...
Page 140 – 60W-E Wood Operation Manual • Network cable (with HUB), select "Obtain an IP address automatically"...
Page 141 机床产品/Machine Tool Products – 60W-E Wood Operation Manual Win 7 OS Sharing resource setting •...
Page 142 – 60W-E Wood Operation Manual • Left-click on "advanced sharing" and select "share this folder" to everyone.
Page 143 机床产品/Machine Tool Products – 60W-E Wood Operation Manual • Select "permission" and select "full control" "only read" and "change"...
Page 144 机床产品/Machine Tool Products – 60W-E Wood Operation Manual How to Operate 60 Series Controller – 144...
Page 145 机床产品/Machine Tool Products – 60W-E Wood Operation Manual 2. Setting PC name and workgroup "Start"->...
Page 146 – 60W-E Wood Operation Manual "Workgroup", remember these setting contents to use later on when setting controller.
Page 147: File Transfer
机床产品/Machine Tool Products – 60W-E Wood Operation Manual • Network cable(with HUB), select "Obtain an IP address automatically"...
Page 148: File Export
– 60W-E Wood Operation Manual After complete file transfer, press "Exit" or ESC to leave this window 4.5.2 File Export...
Page 149 – 60W-E Wood Operation Manual • While user try to enter a unconnected external device, the warning window shows as below.
Page 150 机床产品/Machine Tool Products – 60W-E Wood Operation Manual 5 Appendix 5.1 Contact Window...

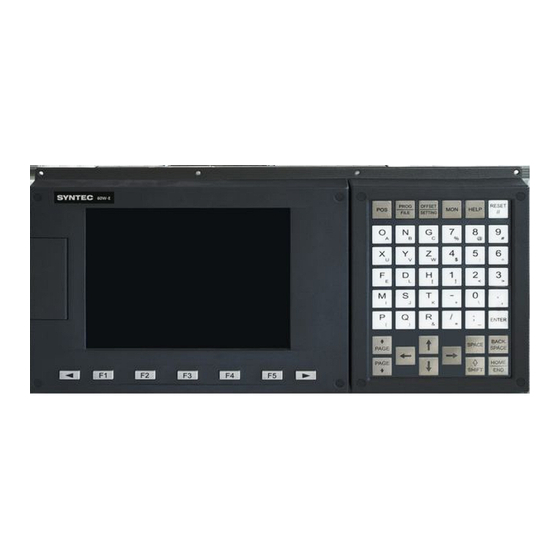

Syntec 60W-E Operation Manual
