Sunset Furniture DLU-TPD-4242-CB Assembly Instruction

1 Turn the under side of the Table Top over
and place it on a clean and smooth surface
such as rug or carpet to avoid the Table Top from
being scratched .
01
Remove the strip before start Assembly .
4 Fix the Pedestal with Flat Washer,Spring Washer & Hex Nut
using the Spanner to tighten it.
d
c
b
a
03
Pls Check to make sure you have all parts
* *
otherwise contact local retailer or Sunset
Trading customer service
at 877-364-8464''
Fix the Footing to the Pedestal with
2
the Flat Washer,Spring Washer And Hex Nut
using the Spanner to tighten it.
Remove the plastic
cover from the
Pedestal and Footings.
03 03
Mouting Plate
01
Thank You for purchasing this Quality product. It has
been engineered for easy assembly yet constructed for
durability.Please take the time to read and follow the
instruction while assembling.
Repeat the same step for the other three Footing .
3
a
03
b
c
02
d
03
02
01

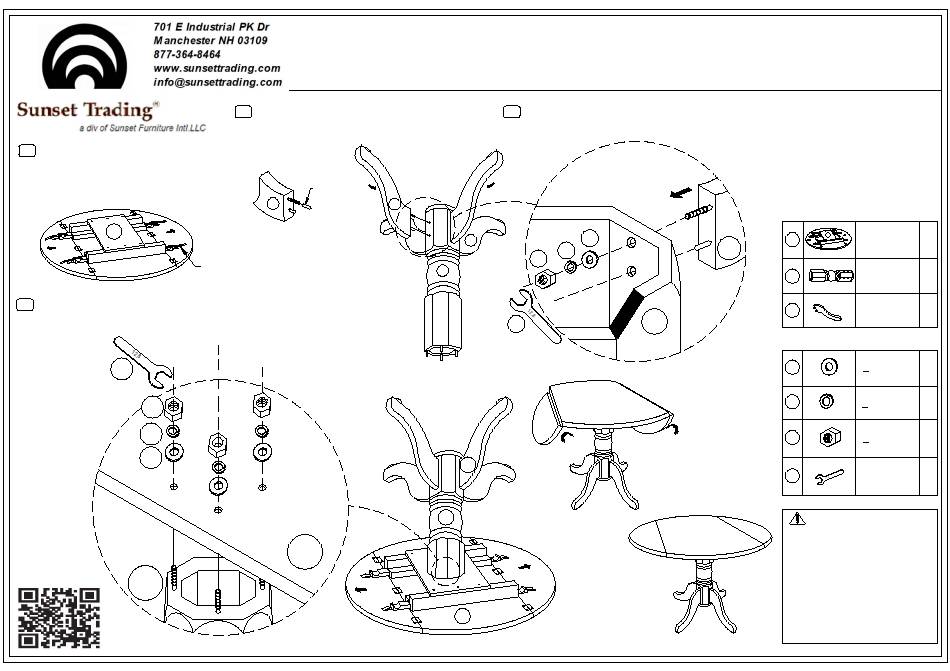

ASSEMBLY INSTRUCTION

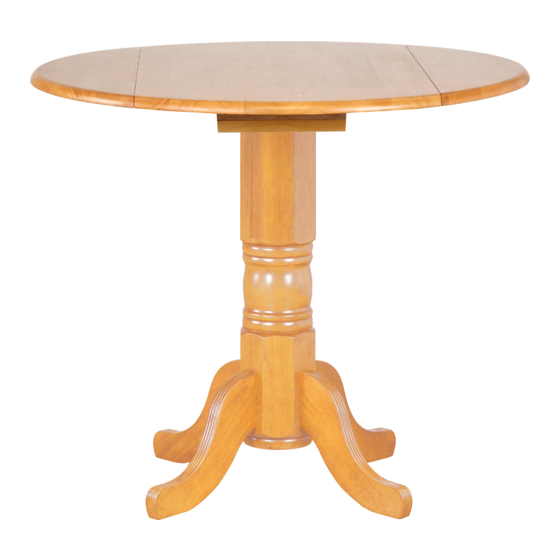

Round Drof Leaf Dining & Pub Table
Ø 42" x ( 2-9'' Drop Leaf ) x 30'' & 36'' H
Model : DLU-TPD-4242-B (TSD-0915)
Model : DLU-TPD-4242-CB (PTSD-0915)
List of Part For 1 Set
01
03
02
03
02

List of hardware For 1 Set

a
b
c
d

Important Notes

Keep all hardware parts out of reach of
*
children.
Must tighten screws periodically.With
*
use screws will become loose.Check tightness of
all screws every 6-8 weeks.
Don't attempt to repair or modify parts that are
*
broken or defective.Please contact the store
immediatedly.
Do not tighten all screw / bolt until all completly
*
assembled
Assembly Completed !!..
Table Top
1
01
Pedestal
1
Table Leg
4
With Leveler
Flat Washer
12
5
" x 22mm
16
Spring Washer
12
5
"
16
Hexagon Nut
12
5
" x 7mm
16
Spanner
1
12.8mm
MADE IN MALAYSIA
