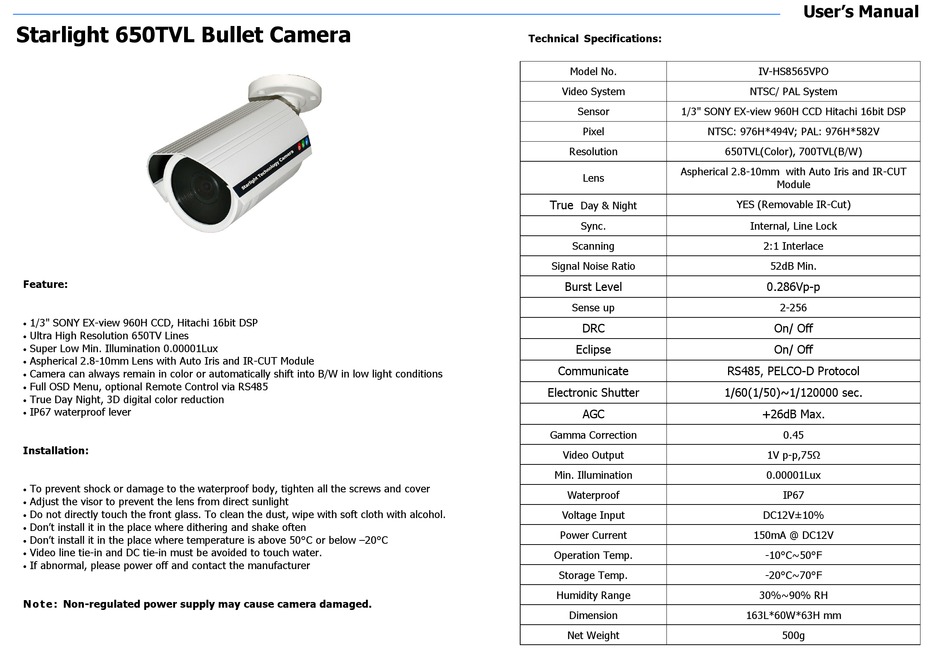

iVision Starlight 650TVL User Manual

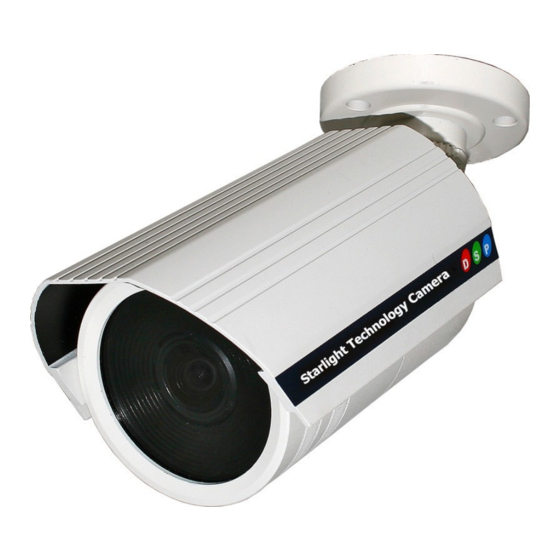

Starlight 650TVL Bullet Camera

Feature:

1/3" SONY EX-view 960H CCD, Hitachi 16bit DSP

Ultra High Resolution 650TV Lines

Super Low Min. Illumination 0.00001Lux

Aspherical 2.8-10mm Lens with Auto Iris and IR-CUT Module

Camera can always remain in color or automatically shift into B/W in low light conditions

Full OSD Menu, optional Remote Control via RS485

True Day Night, 3D digital color reduction

IP67 waterproof lever


Installation:

To prevent shock or damage to the waterproof body, tighten all the screws and cover

Adjust the visor to prevent the lens from direct sunlight

Do not directly touch the front glass. To clean the dust, wipe with soft cloth with alcohol.

Don't install it in the place where dithering and shake often

Don't install it in the place where temperature is above 50°C or below –20°C

Video line tie-in and DC tie-in must be avoided to touch water.

If abnormal, please power off and contact the manufacturer

N o t e : Non-regulated power supply may cause camera damaged.

Technical Specifications:

Model No.
Video System
Sensor 1/3" SONY EX-view 960H CCD Hitachi 16bit DSP
Pixel NTSC: 976H*494V; PAL: 976H*582V
Resolution
Aspherical 2.8-10mm with Auto Iris and IR-CUT
Lens
True
Day & Night
Sync.
Scanning
Signal Noise Ratio
Burst Level
Sense up
DRC
Eclipse
Communicate
Electronic Shutter
AGC
Gamma Correction
Video Output
Min. Illumination
Waterproof
Voltage Input
Power Current
Operation Temp.
Storage Temp.
Humidity Range
Dimension
Net Weight
User's Manual
IV-HS8565VPO
NTSC/ PAL System
650TVL(Color), 700TVL(B/W)
Module
YES (Removable IR-Cut)
Internal, Line Lock
2:1 Interlace
52dB Min.
0.286Vp-p
2-256
On/ Off
On/ Off
RS485, PELCO-D Protocol
1/60(1/50)~1/120000 sec.
+26dB Max.
0.45
1V p-p,75Ω
0.00001Lux
IP67
DC12V± 10%
150mA @ DC12V
-10°C~50°F
-20°C~70°F
30%~90% RH
163L*60W*63H mm
500g
