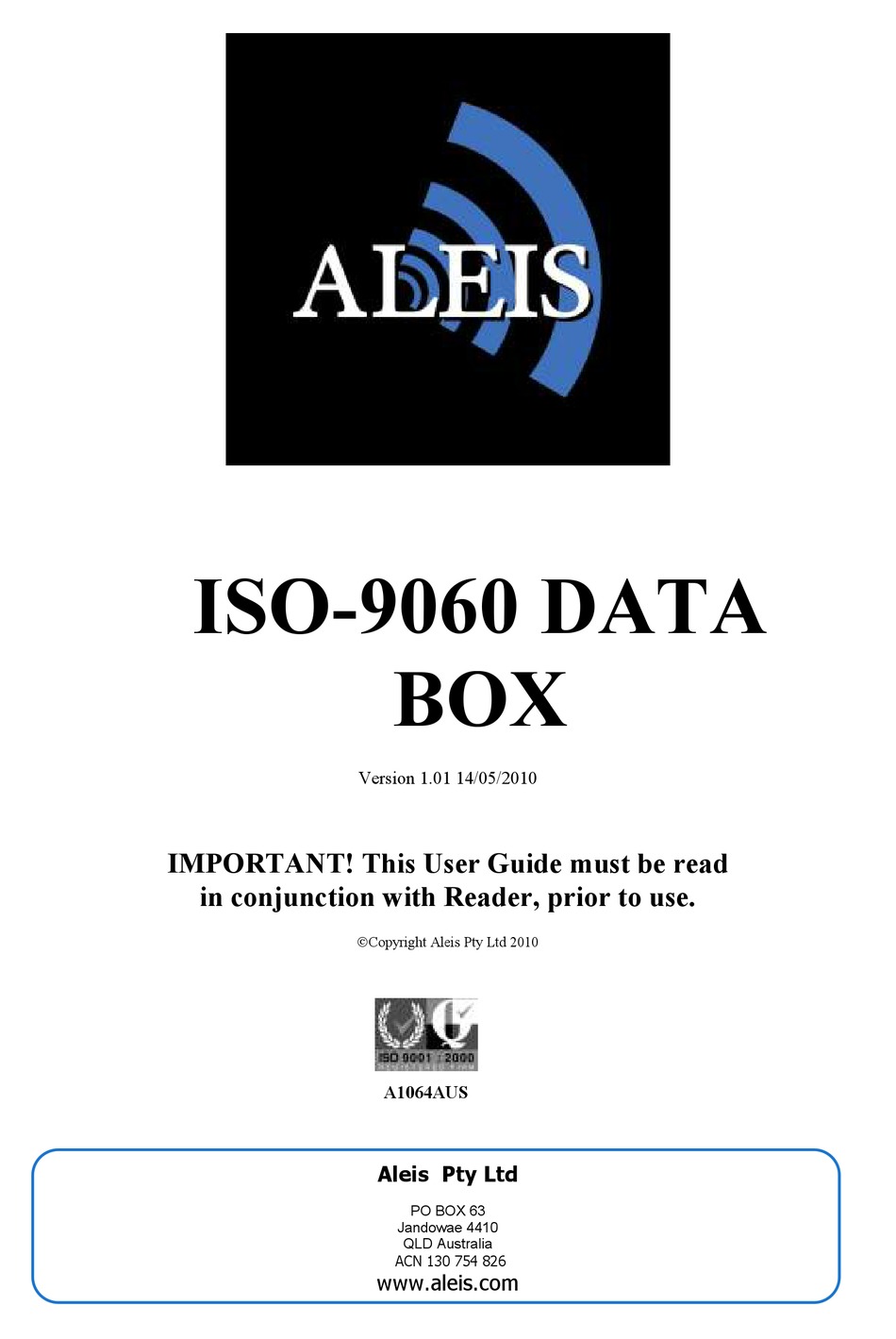

- Page 1 ISO-9060 DATA Version 1.01 14/05/2010 IMPORTANT! This User Guide must be read in conjunction with Reader, prior to use. Copyright Aleis Pty Ltd 2010 A1064AUS Aleis Pty Ltd PO BOX 63 Jandowae 4410 QLD Australia ACN 130 754 826 www.aleis.com...
- Page 2 Aleis ISO9060 Data Box Operational Manual Aleis ISO9060 Series Page 2 of 28...
-
Page 3: Table Of Contents
Aleis ISO9060 Data Box Operational Manual 9060 Reader Instructions Regularity Notices and Conformity ..........................4 Important User Instructions ............................5 1.0 The Qwerty Keypad ..............................6 9060 Series Reader Methods of Use ........................7 2.1 Record RFID No’s only (no data entry) ......................7 2.2 Quick Data Entry –... -
Page 4: Regularity Notices And Conformity
Consult the dealer or an experienced radio/TV technician for help Modification warning (FCC Part 15.21) Warning: Any changes or modifications not expressively approved by Aleis could void the user's authority to operate this equipment. Canada This Class B digital apparatus complies with Canadian ICES-003. -
Page 5: Important User Instructions
Non-conformance to the handling and operating instructions will immediately void all warranties for the antenna/reader and software. 1. WARNING: All Aleis Warranties will be immediately voided if this reader is used in any way with HyperTerminal 2. Up to 1,000 sessions, with maximum of 4,000 RFID numbers per session or 40,000 total records. -
Page 6: The Qwerty Keypad
Aleis ISO9060 Data Box Operational Manual 1.0 The Qwerty Keypad Data Entry Keys Function Keys Directional Keys Menu Keys Aleis ISO9060 Series Page 6 of 28... -
Page 7: 9060 Series Reader Methods Of Use
Aleis ISO9060 Data Box Operational Manual 9060 Series Reader Methods of Use There are four general methods of reading and recording data. Please read each method and follow instructions covering the method you choose with your 9060 series system. 2.1 Record RFID No’s only (no data entry) Turn Reader ON. - Page 8 Aleis ISO9060 Data Box Operational Manual A table heading will appear. Field Default Data When setting up template there is no need to have a date field as this will record automatically and print with the report. There are four data fields available per template.
-
Page 9: Templates
Aleis ISO9060 Data Box Operational Manual Session will be highlighted, press OK. will be highlighted, press OK. Follow same instructions from beginning. If same fields are required, select Same Fields instead of Blank (as in step 5) 2.3 Templates Setup New Template... - Page 10 Aleis ISO9060 Data Box Operational Manual Field Default Data River When finished, press C (located to the left of MENU button) to return to the session screen. Lock Template From press down arrow to select Session Data Entry Locking. Press OK.
- Page 11 Aleis ISO9060 Data Box Operational Manual Type in template name. When finished press OK. Message appears Template Saved, press OK. Press C three times to return to main reading screen. Reader is ready to read first group of animals. This process can be carried out well before using the reader.
-
Page 12: Data Entry Using Function Keys For A Pre Made Template
Aleis ISO9060 Data Box Operational Manual 2.4 Data Entry using Function Keys for a pre made Template 9060 Series Function Keys 9060 series Function Keys are designed to make entering data into reader simple and quick. The function of each key is explained to the right of that key, as an example, the F1 key is used to start a new session. -
Page 13: How To: Upload Rfids Into The Reader
2. A working COM port – you can check this by turning your 9060 reader on, and then opening Aleis DataLink. Down the bottom right corner of the Aleis DataLink screen, you should see that the software has connected to a particular unit. -
Page 14: How To: Compare Rfids In The Reader
DataLink screen (there is a big yellow manilla folder on the button). 3. Find the file that you created, and click on the open button. 4. You will see that file name listed in the main screen of Aleis DataLink where the session names and numbers are normally displayed. -
Page 15: Formatting The File System
Aleis ISO9060 Data Box Operational Manual 2.7 Formatting the File System Formatting of the file system is very important to keep your reader operating at its maximum performance. Once the reader has read and stored a lot of tags eg 40000+ you may notice a slow down in its performance when storing and recalling data. -
Page 16: Iso 9060 Series Menu Tree
ISO 9060 Series Menu Tree The readers menu has 5 main menu and several sub menu items 1. Session 2. Read Setup 3. System Setup 4. Reader Information 5. Memory Status 3.1 Session Menu... -
Page 17: Read Setup Menu
Aleis ISO-9060 Series Operational Manual 3.2 Read Setup Menu Page 17 of 28... -
Page 18: System Setup Menu
Aleis ISO-9060 Series Operational Manual 3.3 System Setup Menu Page 18 of 28... -
Page 19: Reader Information Menu
Aleis ISO-9060 Series Operational Manual 3.4 Reader Information Menu 3.5 Memory Status Menu Page 19 of 28... -
Page 21: Menu
Aleis ISO9060 Series Operational Manual 5.0 Menu 5.1 Sesssion 5.11 Starts a New Session 5.12 Data Entry Setup - Sets up Data Entry Fields 5.13 Data Entry Locking - Sets up Data Entry Locking Fields 5.14 Templates Session Template Save Template Default Template 5.15... -
Page 22: Storage
Aleis ISO-9060 Series Operational Manual Duration Sets the Alert Duration. There are 4 options 2 Seconds 5 Seconds 10 Seconds Until Keypress Message – Sets up Message 5.24 Storage Sets the store Condition when a RFID is read There are 5 options... -
Page 23: Display
Aleis ISO-9060 Series Operational Manual 5.32 Display Backlight Threshold (Select required lighting Eg 1 = always bright. 16 = will come on when very dark. Subject to Backlight Mode selection below) Backlight Mode Sets the condition when the Backlight comes on. -
Page 24: Reader Information
Aleis ISO-9060 Series Operational Manual Ant Tune Mode Selects Auto or manual antenna tuing. Auto Tuning Maunual Tuning Manual Tune Settings When Manual tune is selected above you can change the tuning value to suit the read requirement, either for a maximum voltage (maximum range) or detune for a smaller read distance. -
Page 25: The Clock
To reset or change the date and time on the clock, simply plug the 9060 Data Box into your computer, turn the reader on, and then open Aleis DataLink. (This is the default setting in DataLink Setup). After 30 seconds, the reader will automatically be updated with the date and time that is on your computer. -
Page 26: Aleis Conditions Of Sale
Aleis Conditions of Sale In these conditions: `Vendor' means Aleis Pty Ltd ACN 130 754 826 of the Cnr Old Rosevale & Jandowae/Kingaroy Rds, Jandowae, Queensland, 4410 which is the seller of the goods ‘Factory’ means the Vendor’s principal place of business at the Cnr Old Rosevale & Jandowae /Kingaroy Rds, Jandowae, Queensland 4410. - Page 27 Aleis ISO9060 Data Box Operational Manual Vendor shall not be liable for and purchaser releases vendor from any claims in respect of faulty or defective design of any goods supplied unless such design has been wholly prepared by vendor and the responsibility for any claim has been specifically accepted by vendor in writing and in any event vendor's liability hereunder shall be strictly limited to the replacement of defective parts in accordance with para 11(1) of these conditions.
- Page 28 Aleis ISO9060 Data Box Operational Manual If the Vendor has not paid for any goods on the due date specified in this Agreement, without prejudice to any other right or remedy, all outstanding money shall bear interest on daily balances until paid at the rate of 1.5% per month and such money together with all interest shall be recoverable forthwith from the Purchaser.
