- Page 1 21” RV Drop-in Grill Model: FGLPSA1SA-SS FGLPSA1SA-SS-AM User Manual FGLPPA1SA-SS FGLPPA1SA-SS-AM FGLPSA1SA-SS FGLPPA1SA-SS FGLPSA1SA-SS-AM FGLPPA1SA-SS-AM Conforms to ANSI STD Z21.58-2018 Certified to CSA STD 1.6-2018 Outdoor Cooking Gas Appliances 5014612...
-
Page 2: Table Of Contents
Thank you for purchasing this Furrion® product. Before operating your new appliance, please read these instructions carefully. This user manual contains information for safe use, installation and maintenance of the appliance. Please keep this user manual in a safe place for future reference. This will ensure safe use and reduce the risk of injury. Be sure to pass on this manual to new owners of this appliance. -
Page 3: Explanation Of Symbols
Explanation of Symbols This manual has safety information and instructions to help WARNING you eliminate or reduce the risk of accidents and injuries. Always respect all safety warnings identified with these Indicates a potentially hazardous situation which, if not symbols. A signal word will identify safety messages and avoided, could result in death or serious injury. -
Page 4: Important Instructions For Cleaning Your Grill

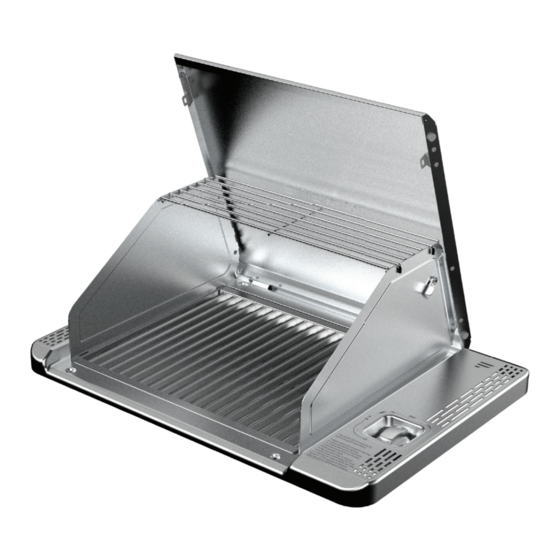

● Clean the appliance regularly to keep all parts free of openings and surfaces near these openings, warming grease that could catch fire. rack and lid. Product Overview FGLPPA1SA-SS / FGLPPA1SA-SS-AM (with lid) FGLPSA1SA-SS / FGLPSA1SA-SS-AM (without lid) Grate Warming Rack Flame Flame... -
Page 5: Installation
● Grate ● Firebox Side Facing Installation ● Drip Tray ● 5/8”-18UNF Quick Connector ● User Manual ● Warranty Manual FGLPSA1SA-SS / FGLPSA1SA-SS-AM ● Grate ● Firebox ● Drip Tray ● 5/8”-18UNF Quick Connector ● User Manual ● Warranty Manual Cut Out Dimensions &... -
Page 6: Install The Grill
Front Facing Installation When in use, the bottom of the grill must be free and clear from all combustibles. The grill must only be installed in a pull-out drawer. Combustible wall and overhead clearances must be maintained. A safety shut off valve must be installed for easy accessibility to turn off the gas to the grill. - Page 7 c. Pull back the grill to the left until the limit bracket hits 5. Rotate the splash guard holder first, then release the the cabinet cutout (Fig. C). splash guards and rotate them to the appropriate position, push down the front corners into the slots. Limit bracket 6.
-
Page 8: Gas Connection
Gas Connection Close the Drawer After Use 1. This product is for LP gas use only. Connect the gas WARNING supply hose with a ⅜” female flare fitting with a 5/8”-18UNF thread connection to the grill. Tighten the gas supply hose Allow grill to cool to touch before moving or storing. -
Page 9: Ventilation Requirements
Ventilation Requirements WARNING The appliance should not be installed with a ventilation CAUTION system that blows air downward toward the grill since this type of the ventilation system may cause ignition and Your grill requires proper ventilation. combustion problems with the gas cooking appliance resulting in personal injury or unintended operation. -
Page 10: The Burner Flame
The Burner Flame A good flame should be blue with a yellow tip. Some yellow tips on flames up to 1” (25.4mm) in length are acceptable as long as no carbon or soot deposits appear. Flames should appear similar to the good flame shown in If flames are excessively yellow and irregular, the oil residue diagram below. -
Page 11: General Cleaning Guide
General Cleaning Guide CAUTION Before cleaning, ensure the grill is turned off and completely cooled prior to removing any components and/or cleaning. Types of Cleaners Consider the possibility of scratching and the potential for post-cleaning corrosion caused by incompletely removed cleaners. - Page 12 The contents of this manual are proprietary and copyright protected by Lippert. Lippert prohibits the copying or dissemination of portions of this manual unless prior written consent for an authorized Lippert representation has been provided. Any unauthorized use shall void any applicable warranty. The information contained in this manual is subject to change without notice and at the sole discretion of Lippert.
