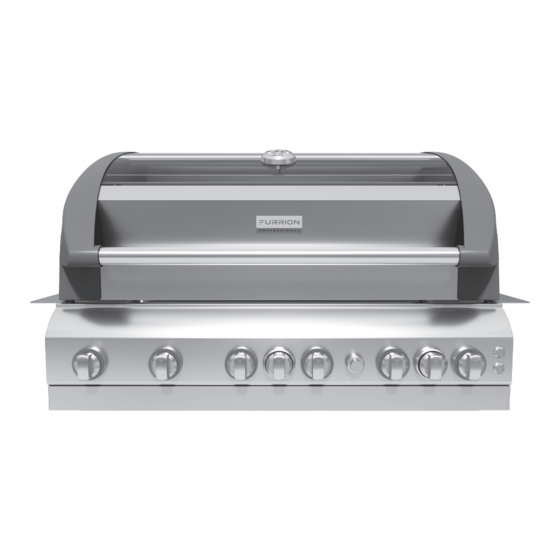

- Page 1 BBQ Built-in Instruction Manual * Picture shown here is for reference only. Model: FGL3328R-SS FGL335BR-SS...
-
Page 2: Table Of Contents
Please keep this instruction manual in a safe place for future reference. Be sure to pass on this manual to any new owners of this product. The manufacturer does not accept responsibility for any damages due to not observing these instructions. If you have any questions regarding our products, please contact us at: support@furrion.com Contents Welcome ........................ 1 Contents ........................ -
Page 3: Important Safety Instructions
Important Safety Instructions Introduction This product has many features for making its use more pleasant and enjoyable. Safety, high performance and reliability have been given top priority in the design of this product making it easy to maintain and operate. This product is only intended for use outdoors. -
Page 4: Important Safety Information
Important Safety Instructions Important Safety Information Please read and understand this manual fully before assembly and use. ● The Manufacturer’s Warranty may be voided by the incorrect use of this product. ● The Manufacturer or their Agents shall accept no liability for the unsuitability of, or any damage to, food that is cooked on this appliance. - Page 5 Refer to the warranty supplied with this BBQ. Should any part fail due to defective workmanship or faulty materials within the specified period from the date of purchase, Furrion will replace or repair the defective part free of charge. Refer to the warranty for details.
-
Page 6: What's In The Box
What's in the Box BBQ Built-in for 4 burners CCD-0005862 Rev. 02.27.2023... - Page 7 What's in the Box Part Name Part Name Back outer board for lid Knob Back inner board for lid Fire box panel welding assembly Temperature gauge Grease box insulation Logo Grease box left bracket Glass for lid Grease box right bracket Press board for glass Grease box Left board for lid...
-
Page 8: Bbq Built-In For 6 Burners
What's in the Box BBQ Built-in for 6 burners CCD-0005862 Rev. 02.27.2023... - Page 9 What's in the Box Part Name Part Name Back outer board for lid Grease box insulation Back inner board for lid Grease box left bracket Temperature gauge Grease box right bracket Logo Grease box Glass for lid Grease panel Press board for glass Lid handle Left board for lid R shape pin...
-
Page 10: Before Installation
Before Installation Assembly 4. Install the right body bracket, then tighten the screws M4 x 12mm. (Fig. 4) When you prepare to assemble the BBQ appliance, please Panel is aligned with oven after installation open the carton and unpack all the components of the appliance and lay them on the floor or flat surface. - Page 11 Before Installation Ignition Assembly on the BBQ Body Rotisserie Assembly (Optional) ● 9. Locate the ignition assembly as shown and tighten one If need rotisserie, remove the warming rack at first; next, half tooth screw M6 x 20mm, then hang up the ignition locate the rotisserie, and insert the motor into motor assembly on the screw head.
- Page 12 Before Installation Jacket Assembly (Optional) NOTE: Jacket is not included, it is sold separately as accessory. If you don’t want to install a jacket for your BBQ, please skip this step. 15. Assemble rear plate and bottom plate as shown, then tighten the 3pcs screws M6×10mm with nuts.
-
Page 13: Installation
Installation Location This barbecue is for outdoor use only and should be placed in a well-ventilated area. Take care to ensure that the minimum clearances guidelines are followed: Minimum clearances: From sides: 36"(915mm) ; From back: 36"(915mm) 30 percent or more in total Open side at From above (vertical): 36"(915mm) of the remaining wall area is... - Page 14 Installation For BBQ without Jacket (Fig. 28) For BBQ without a Jacket Put BBQ into the cabinet as shown, make sure the front edge of body bracket is aligned with the front cabinet. (Fig. 31) vertical alignment Fig. 28 NOTE: This side need to keep open and NOTE: This side need to keep open and ventilated, not to closed with wall or door.
- Page 15 Installation Portable ULPG Cylinder Other Precautions The most flexible arrangement is a portable ULPG gas Do not obstruct any of the ventilation openings in the cylinder attached by a special hose and regulator to your barbecue body. Should you need to change the gas barbecue.
-
Page 16: Inbuilt Installation
Installation Inbuilt Installation WARNING ● Prior to starting any construction, check with your local council for any building codes regulating the installation of outdoor barbecue appliances. Outdoor installations must conform to the local codes or, in the absence of local codes, refer to the Australian Gas Standard: AS 4557-2004 (Amdt2) ●... -
Page 17: Operation
Operation Most Likely Leak Areas WARNING Valve Stem ● Before proceeding, be certain you have understood Main Connection safety information contained in this manual. ● This barbecue is not designed to be used with more than 66% of the cooking area as a solid plate. Full coverage of plates will cause excessive build-up of heat and damage the Gas Hose barbecue. - Page 18 Operation Grill Cooking 6. Turn on the rotisserie motor to begin rotisserie cooking. The hood has been designed so that it may be closed The burners heat up the flame tamers underneath the grill during rotisserie cooking. which in turn heats the food on the grill. The natural juices Always cook foods on the lowest flame setting to avoid produced during cooking fall onto the flame tamers below burning or overcooking.
- Page 19 Furrion agent. If your BBQ rear burner does not barbecue. light at all while the lighting procedures have been followed...
-
Page 20: Troubleshooting
If a replacement is necessary, please contact either thereby damaging the grill and making it unsafe to operate. our Furrion Customer Service Department or your local dealer. Before Calling for Service ●... -
Page 21: Care And Maintenance
Care and Maintenance ● Regularly clean your barbecue between uses and final rinse with clean water and a dry wipe will complete especially after extended periods of storage. Ensure the process and eliminate the possibility of water stains. the barbecue and its components are sufficiently cool Household Cleaners before cleaning. - Page 22 Care and Maintenance Cast Iron Cooking Surfaces Electrode Testing (Fig. 37) ● Before cooking with the grill, flat plate or deep dish (if supplied with your BBQ) clean these with hot soapy Remove wind shield to adjust water to remove any oil or residue from the packaging or manufacturing process.
-
Page 23: Warranty
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. No Furrion reseller, agent, or employee is authorized to make any modification, extension, or addition to this warranty. FURRION IS NOT RESPONSIBLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES... - Page 24 The contents of this manual are proprietary and copyright protected by Lippert. Lippert prohibits the copying or dissemination of portions of this manual unless prior written consent for an authorized Lippert representation has been provided. Any unauthorized use shall void any applicable warranty. The information contained in this manual is subject to change without notice and at the sole discretion of Lippert.
