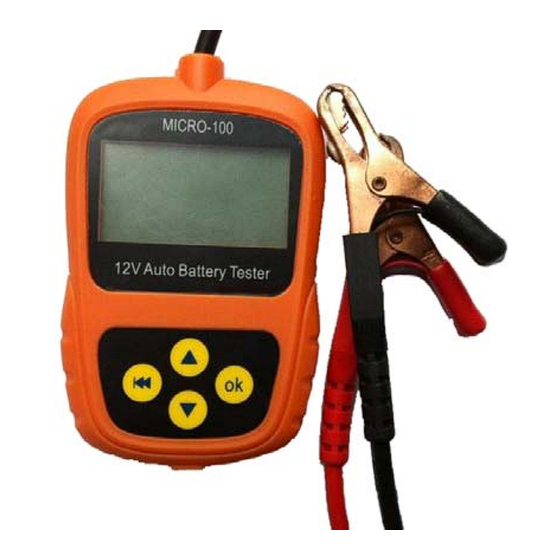

Lancol MICRO-100 User Manual

Battery system tester
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LANCOL
NOTES：
Carefully read the user manual before using, and keep it well for future
reference.
Carefully check the device parts list before using. For any doubt, contact
Lancol distributor immediately.
Due to the product upgrade, tiny difference between the user manual and
the device will not be further noticed. Take the device as standard.
MICRO-100 Battery System Tester User Manual

Advertisement

Table of Contents
loading

Related Manuals for Lancol MICRO-100

Summary of Contents for Lancol MICRO-100

  • Page 1 LANCOL MICRO-100 Battery System Tester User Manual NOTES： Carefully read the user manual before using, and keep it well for future  reference.  Carefully check the device parts list before using. For any doubt, contact Lancol distributor immediately. ...
  • Page 2 LANCOL MICRO-100 Battery System Tester User Manual Lancol Copyright reserved! Without written agreement from Tech Co., Ltd (Hereinafter refer to " Lancol "), any company or person is not allowed to copy and duplicate this user manual in any format (electronic, mechanical, video, record or Lancol other formats).The user manual is designed only for...

  • Page 3: Table Of Contents

    LANCOL MICRO-100 Battery System Tester User Manual Table of Contents Chapter 1 Product Summary ................1 1.1 Product Profile ..................1 1.2 Product Function .................. 1 1.3 Technical Parameters ................2 1.4 Working Environment Requirement ............. 3 Chapter 2 Tester Structure................... 4 Chapter 3 Operation ....................

  • Page 4: Chapter 1 Product Summary

    Russian, Spanish, French, Italian, German, etc. Other languages can also be customized according to user's need. 1.2 Product Function Main functions of MICRO-100 battery tester include: battery test, cranking test, charging test and other additional functions. Battery test is mainly targeted to analyze the battery healthy status to...

  • Page 5: Technical Parameters

    LANCOL MICRO-100 Battery System Tester User Manual the actual required cranking current and cranking voltage of the starting motor, it can find out whether the starting motor works fine. There are several reasons why the starting motor is abnormal: lubricating system fault causing the starting loaded torque increasing or rotor friction of the starting motor causing the increasing friction of the starting motor itself.

  • Page 6: Working Environment Requirement

    LANCOL MICRO-100 Battery System Tester User Manual 2. Voltage Measure Range: 8-30VDC 1.4 Working Environment Requirement Working Environment Temp.: -20°C-60°C It is applicable for automotive manufacturers, automotive maintenance and repair workshops, automotive battery factories, automotive battery distributors, and educational organizations, etc.

  • Page 7: Chapter 2 Tester Structure

    LANCOL MICRO-100 Battery System Tester User Manual Chapter 2 Tester Structure MICRO-100 mainly consists of battery tester main unit and testing cables. MICRO-100 Battery Tester main unit cover is made of ABS acid-resistant plastic.

  • Page 8: Chapter 3 Operation

    LANCOL MICRO-100 Battery System Tester User Manual Chapter 3 Operation 3.1 Pre-Test 3.1.1 Connect Tester Shake the clamps back and forth to make sure they are well connected. Tester requires the two clamps are well connected with the battery poles, otherwise, the test cannot go on. When enter the battery test program, screen prompts "Check Connection", do clean...

  • Page 9: Tester Startup

    MICRO-100 Battery System Tester User Manual 3.2 Tester Startup Tester automatically starts up after the clamps are correctly connected, and displays the Lancol startup interface (Default voltmeter is ON) refer to figure 1. Figure 1, Startup Interface with Voltmeter on At the middle bottom of the startup interface, it displays the voltmeter value, which can be used as DC voltmeter.

  • Page 10: In-Vehicle Or Out-Of-Vehicle

    LANCOL MICRO-100 Battery System Tester User Manual Figure 3, Interface with tester model and version Tester will display the following contents in a sequence, select accordingly. 3.4.1 IN-VEHICLE or OUT-OF-VEHICLE Press UP/DOWN key to select the battery location, in vehicle or out of vehicle, then press OK key to confirm.

  • Page 11: Select Battery Charge State

    LANCOL MICRO-100 Battery System Tester User Manual Now the tester detects the surface charge has been eliminated, turn lights off as prompted, then press OK key. The tester will recover automatic test OUT-OF-VEHICLE means battery is not connected with any of the vehicle loaded, i.e.
  • Page 12 LANCOL MICRO-100 Battery System Tester User Manual When it's IN-VEHICLE test, battery installation way shall also be selected, e.g. TOP, SIDE or REMOTE (This selection is no need for OUT-OF-VEHICLE), then press OK key to confirm. REMOTE is adopted for some in vehicle battery which is too tightly installed to...

  • Page 13: Battery System Standard And Rating

    "OUT-OF-VEHICLE" to re-test. 3.4.4 Battery System Standard and Rating MICRO-100 battery tester will test each battery according to the selected system and rating. Use UP/DOWN key to select according to the actual system standard and rating marked on the battery.
  • Page 14 LANCOL MICRO-100 Battery System Tester User Manual IEC： Internal Electro technical Commission Standard EN： European Automobile Industry Association Standard SAE: Society of Automotive Engineers Standard GB： China National Standard Rating range as following: Measure Standard Measure Range 100-800 100-800 100-800 100-800 26A17—130E41L...

  • Page 15: Battery Test Result

    LANCOL MICRO-100 Battery System Tester User Manual It takes around 3 seconds to display the battery test result. 3.4.5 Battery Test Result Battery test result includes 5 types as following: 1) Good Battery SOH:96% SOC:98% 12.64V 490A Rating 500A GOOD BATTERY...
  • Page 16 LANCOL MICRO-100 Battery System Tester User Manual Good battery but low current, recharge before using. 3) Replace SOH:46% SOC:80% 12.68V 340A Rating 500A REPLACE The battery is near to or already reached the end of the using life, replace battery, otherwise, bigger danger will be followed.

  • Page 17: Cranking Test

    LANCOL MICRO-100 Battery System Tester User Manual Unstable battery shall be recharged and retested to avoid error. If same test result appears after recharge and retest, the battery is regarded as damaged, replace the battery. Attention: If "Replace" resulted from IN-VEHICLE mode, it might be the reason that vehicle cable is not well connected with the battery.

  • Page 18: Charging System And Rectifier Diode Test

    LANCOL MICRO-100 Battery System Tester User Manual When cranking test is abnormal, battery test result will also be displayed at the same time. This is for the convenience of the maintenance personnel to quickly know the whole state of the starting system according to the data.
  • Page 19 LANCOL MICRO-100 Battery System Tester User Manual For ripple test, tester will display the real time ripple and meanwhile, shows ripple volt and charging volt values at the bottom line. It takes approx. 6 seconds for the ripple test. After the ripple test, tester will automatically start the loaded voltage test.
  • Page 20 LANCOL MICRO-100 Battery System Tester User Manual NOTE: If no increase rev detected, it shall be the fault of generator regulator or connection with battery failed. Tester will try 3 times to further detect, if still failed, it will skip the increase rev detect and the test result displays "No Volt Output".
  • Page 21 LANCOL MICRO-100 Battery System Tester User Manual 4) No Volt Output: No generator volt output is detected. Check the generator connection cable and the belt whether they are normal. 5) Diode Test: Through the test of charging current ripple, tester will find out whether the diode is normal or not.

  • Page 22: Chapter 4 Daily Maintenance

    LANCOL MICRO-100 Battery System Tester User Manual Chapter 4 Daily Maintenance 4.1 Eliminate Common Fault 4.1.1 Screen Not Light  Check connection with the battery whether it's well or reverse connected.  Check the test cable whether break off or drop down.
  • Page 23 Compensation for the auto instrument damage due to the device defect is limited to repair or replacement, Lancol is not responsible for any indirect or accidental loss. Lancol will clarify the device damage according to the specified test method. Any distributor, employee and business representative of Lancol are not entitled to do any confirmation, presentation or promise related to Lancol products.
  • Page 24 Receiver: Customer Service Center Postcode: 610039. Lancol Website: http://www. Lancol.com Statement: Lancol reserves the rights to make any change to product designs and specifications without notice. The actual object may differ a little from the descriptions in the manual in physical appearance, color and configuration. We...
