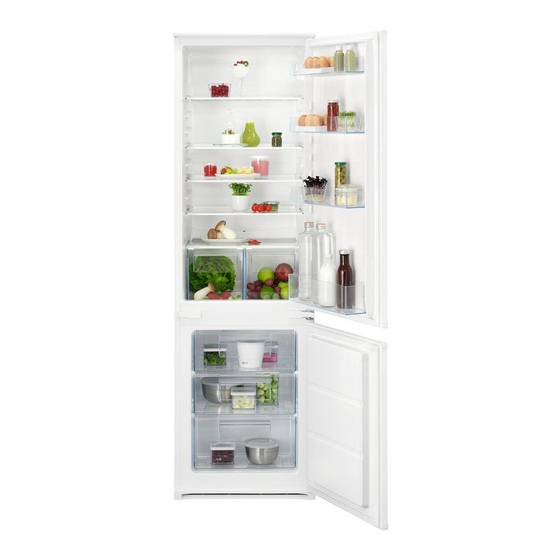

- Page 1 OSC5S181ES User Manual Fridge Freezer USER MANUAL...
-
Page 2: Table Of Contents
12. ENVIRONMENTAL CONCERNS..............20 FOR PERFECT RESULTS Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it. - Page 3 ENGLISH of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference. 1.1 Children and vulnerable people safety This appliance can be used by children aged from 8 • years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a...
-
Page 4: Safety Instructions
– with food and accessible drainage systems; store raw meat and fish in suitable containers in the – refrigerator, so that it is not in contact with or drip onto other food. - Page 5 ENGLISH • At first installation or after reversing • The mains cable must stay below the the door wait at least 4 hours before level of the mains plug. connecting the appliance to the power • Connect the mains plug to the mains supply.
-
Page 6: Installation
• Wrap the food in any food contact • Please note that self-repair or non- material before putting it in the freezer professional repair can have safety compartment. consequences and might void the guarantee. 2.4 Internal lighting • The following spare parts will be... - Page 7 ENGLISH WARNING! WARNING! Refer to installation Fix the appliance in instruction document to accordance with installation install your appliance. instruction document to avoid a risk of instability of the appliance. 3.1 Dimensions Overall dimensions ¹ Space required in use ² 1772 1780 ¹...
- Page 8 Overall space required in use ³ • The appliance must be earthed. The power supply cable plug is provided H3 (A+B) 1816 with a contact for this purpose. If the domestic power supply socket is not...
-
Page 9: Control Panel
ENGLISH 4. CONTROL PANEL 4.4 Frostmatic function Temperature indicator LED The Frostmatic function is used to Alarm light perform pre-freezing and fast freezing in Frostmatic indicator sequence in the freezer compartment. This function accelerates the freezing of Frostmatic button fresh food and, at the same time, Temperature regulator protects food products already stored in ON/OFF button... -
Page 10: Daily Use
4.6 High temperature alarm The alarm light continues to flash until the normal conditions are restored. When there is a temperature increase in If you do not press any button, the sound the freezer compartment (for example switches off automatically after around due to an earlier power failure), the alarm one hour to avoid disturbing. - Page 11 ENGLISH The position of the humidity control When the freezing process is complete, depends on the type and on the amount the appliance automatically returns to the of fruits and vegetables: previous temperature setting (see "Frostmatic function"). • Slots closed: recommended when there is a small amount of fruits and In this condition, the vegetables.
-
Page 12: Hints And Tips
5.9 Ice-cube production 1. Fill these trays with water. 2. Put the ice trays in the freezer This appliance is equipped with one or compartment. more trays for the production of ice- cubes. Do not use metallic instruments to remove the trays from the freezer. - Page 13 ENGLISH • The whole freezer compartment is deteriorated. If the package is swollen suitable for storage of frozen food or wet, it might have not been stored products. in the optimal conditions and • Leave enough space around the food defrosting may have already started.
-
Page 14: Care And Cleaning
6.6 Hints for fresh food • Meat (all types): wrap in a suitable packaging and place it on the glass refrigeration shelf above the vegetable drawer. Store meat for at most 1-2 days. • Good temperature setting that • Fruit and vegetables: clean thoroughly... - Page 15 ENGLISH 7.3 Defrosting of the A certain amount of frost will always form on the freezer shelves and around the refrigerator top compartment. Frost is automatically eliminated from the Defrost the freezer when the frost layer evaporator of the refrigerator reaches a thickness of about 3-5 mm.
-
Page 16: Troubleshooting
8. TROUBLESHOOTING WARNING! Refer to Safety chapters. 8.1 What to do if... Problem Possible cause Solution The appliance does not op‐ The appliance is switched Switch on the appliance. erate. off. The mains plug is not con‐ Connect the mains plug to nected to the mains socket the mains socket correctly. - Page 17 ENGLISH Problem Possible cause Solution The compressor does not The compressor starts after This is normal, no error has start immediately after a period of time. occurred. pressing the "Frostmatic", or after changing the tempera‐ ture. Door is misaligned or inter‐ The appliance is not level‐...
- Page 18 Problem Possible cause Solution Water flows inside the refrig‐ Food products prevent the Make sure that food prod‐ erator. water from flowing into the ucts do not touch the rear water collector. plate. The water outlet is clogged. Clean the water outlet.
-
Page 19: Noises
ENGLISH 8.3 Closing the door If the advice does not lead to the desired result, call the 1. Clean the door gaskets. nearest Authorized Service 2. If necessary, adjust the door. Refer Centre. to installation instructions. 3. If necessary, replace the defective 8.2 Replacing the lamp door gaskets. -
Page 20: Information For Test Institutes
See the link detailed information about the energy label. 11. INFORMATION FOR TEST INSTITUTES Installation and preparation of the clearances shall be as stated in this User appliance for any EcoDesign verification Manual at Chapter 3. Please contact the shall be compliant with EN 62552. - Page 24 www.aeg.com/shop...
