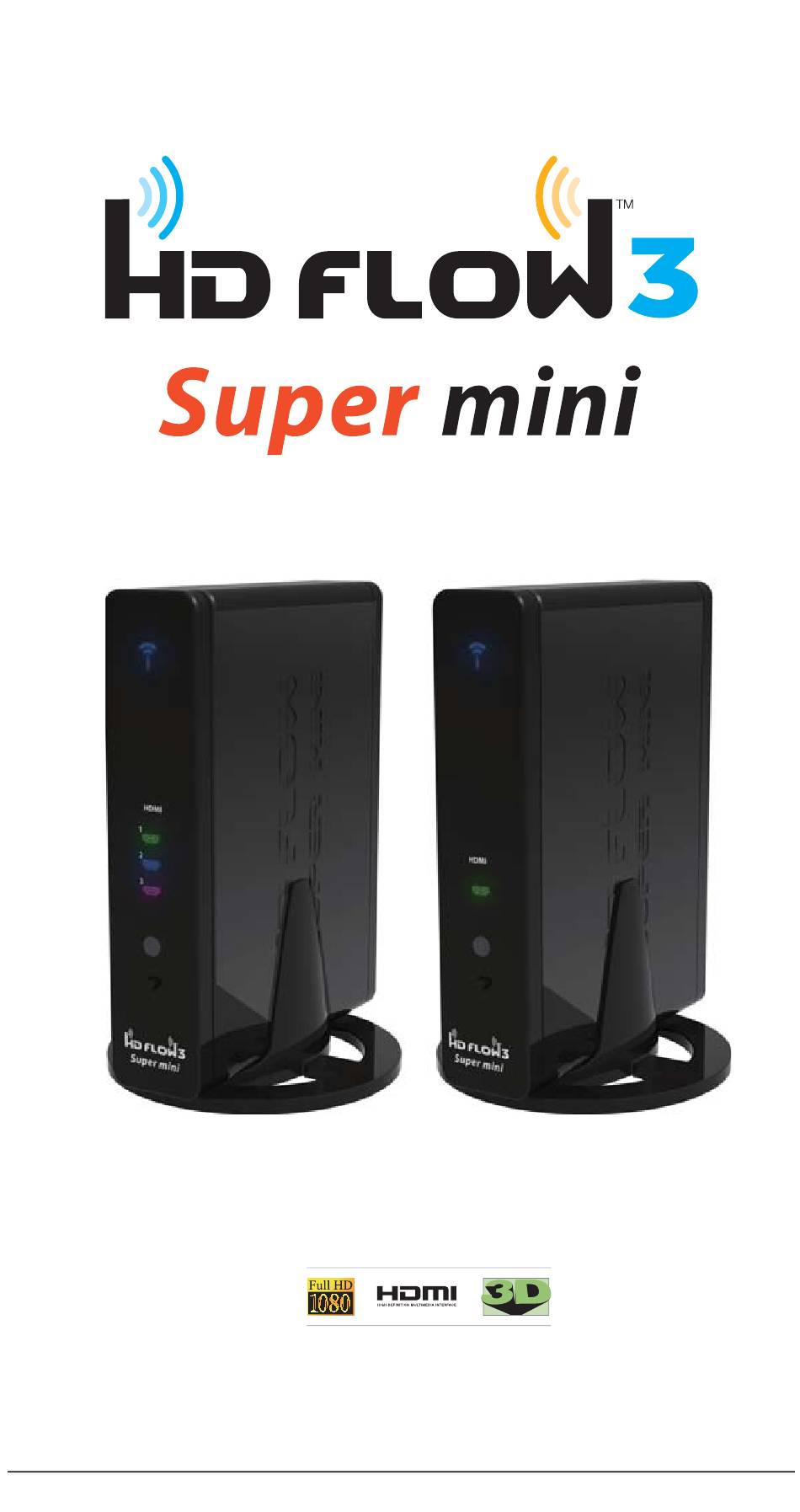

- Page 1 User Manual and Installation Guide Wireless Full HD Sender Receiver HDM-W300R ® R E ADY www.hdflow.co.kr ver 1.0...
-
Page 2: Table Of Contents
(Setting Up IR Remote Control Capabilities for Source Devices) IR Extender Installation (Optional) ................10 Connecting The Receiver To The Display Device ............10 Powering-Up HD FLOW3 Super mini Wireless AV Multi Display System .....10 Input And Output Selection ...................10 Multicast Mode - Pairing Additional Receiver(s) With The Transmitter ......11... -
Page 3: Safety Precautions
SAFETY PRECAUTIONS Keep the product away from Keep the product out of reach of external heat sources such as children. heaters or stoves. If there is any unusual sound, Keep the battery of remote control smoke or odor coming from the out of reach of children. -
Page 4: Introduction
Blu-ray™ player and connecting the Receiver to a display device, instant high definition digital audio and video can be placed into in any commercial or residential setting. HD FLOW3 Super mini Wireless AV Multi Display System transmits through walls and floors to allow the compo- nents to be neatly tucked away in an AV rack or media cabinet, and is the ideal solution for quick and easy installation where running cable is cost prohibitive or simply not an option. -
Page 5: Product Specifications
PRODUCT SPECIFICATIONS HDM-W300R 3x HDMI up to 1080p60 Video Input 1x HDMI pass-thru output (pass-thru port mirrors HDMI 1) (Transmitter) Video Output 1x HDMI up to 1080p60 (Receiver) H.264 Baseline Profile Encoding H.264 Baseline, Main, High Profile Decoding IEEE 802.11n Wireless Connection 2 CH PCM, 48kHz, 16 Bit Audio... -
Page 6: Transmitter Front
Transmitter Front Power/Link Indicator Light • Blinking indicator light - Establishing link between the Transmitter and the Receiver. • Solid indicator light - Link between the Transmitter and Receiver has been established and is ready for signal transmission. HDMI 1 •... -
Page 7: Receiver Front
Receiver Front Power/Link Indicator Light • Blinking indicator light - Establishing link between the Transmitter and the Receiver. • Solid indicator light - Link between the Transmitter and Receiver has been established and is ready for signal transmission. HDMI • The HDMI indicator light will be illuminated when the HDMI port is selected for video output. -
Page 8: Remote Control
Remote Control POWER ON Button - Turns the Transmitter and Receiver power ON POWER POWER POWER OFF Button - Turns the Transmitter and Receiver power OFF INFO/OK*- Displays the following information on the screen: SCAN • Transmitter - WiFi IP and Source MENU / BACK Resolution. -
Page 9: Installation And Operation
Before starting the installation, please ensure that all source components (Blu-ray player, cable box, etc.) and the display equipment (TV, display, projector, etc.) are turned off. For initial setup of your HD FLOW3 Super mini system complete steps A, B, C, D, E and F in order. -
Page 10: Ir Extender Installation (Optional)
Link/Output Selection Button for one second on the unit and release. At this time the output Indicator Light will become solid and the HD FLOW3 Super mini logo will appear on the display device if there is no source providing content. The HD FLOW3 Super mini logo is only displayed when the receiver is working with the display, but no content is coming from the transmitter. -
Page 11: Multicast Mode - Pairing Additional Receiver(S) With The Transmitter
If the above tip does not assist, please reference the Factory Reset section of this manual. If the connection has been established and the HD FLOW3 Super mini logo can be seen on the display device, but content is not playing when initiated: Ensure that source cables are properly connected. -
Page 12: Factory Reset
Notes: 1600 x 1200p60 is a reduced format. HD FLOW3 Super mini simply relays the input format of the video from the Transmitter to the Receiver. HD FLOW3 Super mini does not change the video format. If you want to change the output resolution, you should change the format on the external device which is connected to the Transmitter. -
Page 13: Compliance Statements
COMPLIANCE STATEMENTS FCC Compliance This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. -
Page 14: Warranty
WARRANTY 1 YEAR LIMITED WARRANTY The HD FLOW3 offers the highest quality components and technology available. The product is warranted to be free from defects in material and workmanship, given normal use and care, for 1 Year from the original purchase date with proof of purchase. - Page 15 Wireless Full HD Sender Receiver www.hdflow.co.kr I DO IT Co., Ltd. #637, Smart-Hub Industry-University Convergence Center, 237 Sangidaehak-ro, Siheung-si, Gyeonggi-do, Korea Tel : +82 (0)31 8041 1500 Fax : +82 (0)31 8041 1550 E-mail : sales@hdflow.com I DO IT France 6-8 Rue de la Closerie ZAC Du Clos Aux Pois 91090 LISSES Cedex FRANCE Tel : +33 (0)1 64 97 52 28 Fax : +33 (0)1 64 97 52 35...
