Summary of Contents for Telefunken B32F545A

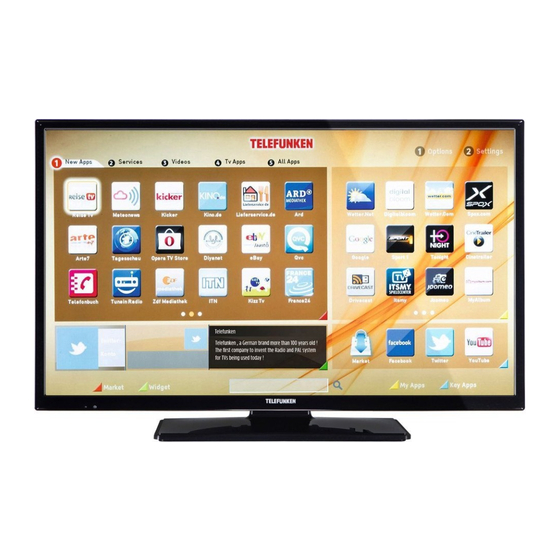

- Page 1 LCD TV B32F545A BEDIENUNGSANLEITUNG INSTRUCTION MANUAL MODE D'EMPLOI ISTRUZIONI PER L'USO...
-
Page 2: Table Of Contents
Contents Safety Information ..........37 Markings on the Product........37 Environmental Information........38 Features ...............39 Accessories Included..........39 Standby Notifications ..........39 TV Control Switch & Operation......39 Inserting the Batteries into the Remote ....40 Connect Power ............40 Antenna Connection ..........40 Notification ............40 Specification ............41 Remote Control ............42 Connections............43 Switching On/Off ...........44 First Time Installation..........44... -
Page 3: Safety Information
• Do not place any heat sources such as electric Safety Information heaters, radiators, etc. near the TV set. • Do not place the TV on the floor and inclined CAUTION surfaces. • To avoid danger of suffocation, keep plastic bags RISK OF ELECTRIC SHOCK DO NOT OPEN out of the reach of the babies, children and domestic... -
Page 4: Environmental Information
WARNING WALL MOUNTING WARNINGS Do not ingest the battery, Chemical Burn Hazard This product or the accessories supplied with the • Read the instructions before mounting your TV product may contain a coin/button cell battery. If the on the wall. coin/button cell battery is swallowed, it can cause •... -
Page 5: Features
any button on the remote or on the TV to turn the Standby Notifications screen on again. If the TV does not receive any input signal (e.g. from Note: Screen Off option is not available if the Mode is set an aerial or HDMI source) for 5 minutes, it will go to Game. -
Page 6: Inserting The Batteries Into The Remote
to select a menu tab and press OK to enter. Use the License Notification directional buttons again to select or set an item. Press The terms HDMI and High-Definition Multimedia Return/Back or Menu button to quit a menu screen. Interface, and the HDMI Logo are trademarks Input Selection or registered trademarks of HDMI Licensing Once you have connected external systems to your... -
Page 7: Specification
Wireless LAN Transmitter Specifications Specification PAL BG/DK/II’ Max Output Frequency Ranges TV Broadcasting Power SECAM BG/DK 2400 - 2483,5 MHz (CH1-CH13) < 100 mW VHF (BAND I/III) - UHF Receiving Channels (BAND U) - HYPERBAND 5150 - 5250 MHz (CH36 - CH48) <... -
Page 8: Remote Control
Remote Control Source: Shows all available broadcast and content sources Netflix: Launches the Netflix application. YouTube: Launches the YouTube application. Play: Starts to play selected media No Function Rapid reverse: Moves frames backwards in media such as movies Language: Switches between sound modes (analogue TV), displays and changes audio/subtitle language (digital TV, where available) Red button... -
Page 9: Connections
Connections NOTE: When connecting a device via the YPbPr or Side Connector Type Cables Device AV input, you must use the Scart connection cables to enable Connection connection. See the illustrations (back) on the left side. | You can use YPbPr to VGA cable to enable YPbPr signal via VGA input. -
Page 10: Switching On/Off
Direct, Single Satellite Cable or DiSEqC switch by Switching On/Off using “ ” or “ ” buttons. To Switch the TV On • Direct: If you have a single receiver and a direct Connect the power cord to a power source such as a satellite dish, select this antenna type. -
Page 11: Media Playback Via Usb Input
(*) LCN is the Logical Channel Number system that organizes FollowMe TV (if available) available broadcasts in accordance with a recognizable With your mobile device you can stream the current channel number sequence (if available). broadcast from your smart TV using the FollowMe Note: Do not turn off the TV while initializing first time TV feature. -
Page 12: E-Manual (If Available)
Note: The audio device should support System Audio Control feature and CEC option should be set as Enabled. E-Manual (if available) You can find instructions for your TV’s features in the E-Manual. To use E-Manual, press to the Info button while main menu is displayed on the screen or press Quick Menu button, select Information Booklet and press OK. -
Page 13: Tv Menu Contents
TV Menu Contents System - Picture Menu Contents You can change the picture mode to suit your preference or requirements. Picture mode can Mode be set to one of these options: Cinema, Game(optional), Sports, Dynamic and Natural. Contrast Adjusts the light and dark values on the screen. Brightness Adjusts the brightness values on the screen. - Page 14 System - Sound Menu Contents Volume Adjusts the volume level. Equalizer Selects the equalizer mode. Custom settings can be made only when in User mode. Balance Adjusts whether the sound comes from the left or right speaker. Sets headphone volume. Headphone Please ensure before using headphones that the headphone volume is set to a low level, to prevent damage to your hearing.
- Page 15 System - Settings Menu Contents Conditional Access Controls conditional access modules when available. Language You may set a different language depending on the broadcaster and the country. Enter correct password to change parental settings. You can easily adjust Menu Lock, Maturity Lock, Child Lock or Guidance in this menu. You can also set a new PIN or change the Default CICAM PIN using the related options.
- Page 16 With this setting you can enable and disable CEC functionality completely. Press Left or Right button to enable or disable the feature. CEC Auto Power This function allows the connected HDMI-CEC compatible device to turn on the TV and switch to its input source automatically.
-
Page 17: General Tv Operation
Child Lock: If this option is set to ON, the TV can only General TV Operation be controlled by the remote control. In this case the Using the Channel List control buttons on the TV will not work. The TV sorts all stored stations in the Channel List. Internet Lock: If this option is set to ON, the open You can edit this channel list, set favourites or set browser application in the portal will be disabled. -
Page 18: Teletext Services
Options (OK button): Displays event options. Note: Do not unplug the power cord while led is blinking during the reboot process. If the TV fails to come on after the Now/Next Schedule upgrade, unplug, wait for two minutes then plug it back in. Navigate (Directional buttons): Press the Troubleshooting &... -
Page 19: Pc Input Typical Display Modes
PC Input Typical Display Modes AV and HDMI Signal Compatibility The following table is an illustration of some of the Source Supported Signals Available typical video display modes. Your TV may not support all resolutions. SECAM Index Resolution Frequency NTSC4.43 640x350 85Hz (SCART) -
Page 20: Supported Video File Formats For Usb Mode
Supported Video File Formats for USB Mode Extension Video Codec SPEC (Resolution) & Bit Rate .dat, vob MPEG1/2 1080P@30fps - 40 Mbps MPEG1/2, .mpg, .mpeg MPEG4 MPEG1/2, H.264, H.264: 1080Px2@30fps - 62.5 Mbps, 1080P@60fps - 62.5 Mbps MVC: .ts, .trp, .tp AVS, MVC 1080P@30fps - 62.5 Mbps Other: 1080P@30fps - 40Mbps .mp4, .mov,... -
Page 21: Supported Audio File Formats For Usb Mode
Supported Audio File Formats for USB Mode Extension Audio Codec Bit Rate Sample rate MPEG1/2 Layer1 32Kbps ~ 448Kbps .mp3, MPEG1/2 Layer2 8Kbps ~ 384Kbps 16KHz ~ 48KHz MPEG1/2 Layer3 8Kbps ~ 320Kbps MPEG1/2 Layer1 32Kbps ~ 448Kbps MPEG1/2 Layer2 8Kbps ~ 384Kbps 16KHz ~ 48KHz MPEG1/2 Layer3... -
Page 22: Supported Subtitle File Formats For Usb Mode
Extension Audio Codec Bit Rate Sample rate MPEG1/2 Layer1 32Kbps ~ 448Kbps MPEG1/2 Layer2 8Kbps ~ 384Kbps 16KHz ~ 48KHz MPEG1/2 Layer3 8Kbps ~ 320Kbps .wav LPCM 64Kbps ~ 1.5Mbps 8KHz ~ 48KHz IMA-ADPCM, 384Kbps 8KHz ~ 48KHz MS-ADPCM G711 A/mu-law 64Kbps ~ 128Kbps 8KHz MPEG1/2 Layer3... -
Page 23: Supported Dvi Resolutions
Supported DVI Resolutions When connecting devices to your TV’s connectors by using DVI converter cable(DVI to HDMI cable - not supplied), you can refer to the following resolution information. 56Hz 60Hz 66Hz 70Hz 72Hz 75Hz 640x400 þ 640x480 þ þ þ... -
Page 24: Connectivity
and display the result when complete. Connectivity Advanced Settings Highlight Advanced Settings and press the OK Wired Connectivity button. On the next screen you can change the IP To Connect to a Wired Network and DNS settings of the TV. Highlight the desired one •... -
Page 25: Wireless Display
• The location where the transmission is most effective • If the connection is established correctly, you will be differs depending on the usage environment. able to access the shared files from your mobile device via the Media Browser of your TV. •... -
Page 26: Using Audio Video Sharing Network Service
Connection is Slow information about the installation, please refer to the “Nero Media Home Installation” section. See the instruction book of your wireless modem to 2. Connect to a Wired or Wireless Network get information on the internal service area, connection speed, signal quality and other settings. -
Page 27: Nero Mediahome Installation
Internet Portal Nero MediaHome Installation HINT: A broadband internet connection is required To install Nero MediaHome, please proceed as for high quality viewing. You must set the country follows: option accordingly in the First Time Installation Note: The Audio Video Sharing feature cannot be used if for proper operation of the internet portal. -
Page 28: Internet Browser
All sites on the internet might not be supportted. Internet Browser According to the site; content problems may occur. To use the internet browser, enter the portal first. Then In some circumstances video contents might not be launch the Internet application on the portal. able to be played. -
Page 29: Hbbtv System
HBBTV System HbbTV (Hybrid Broadcast Broadband TV) is a new industry standard that seamlessly combines TV services delivered via broadcast with services delivered via broadband and also enables access to Internet only services for consumers using connected TVs and set-top boxes. Services delivered through HbbTV include traditional broadcast TV channels, catch-up services, video-on-demand, EPG, interactive advertising,... -
Page 30: Smart Center
PORTAL: This tab displays the Portal applications in Smart Center scrollable view. Unless FollowMeTV (if available) is Smart Center is a mobile application running on iOS active, the selected application will be displayed on and Android platforms. With your tablet or phone, your TV screen. - Page 31 FollowMe TV Feature (if available) 4. Smart Center app.(to be found on online application stores based on Android and iOS Tap on the FOLLOW ME TV widget located at the platforms) bottom left of the screen of your mobile device to 5.
- Page 32 50388387 TELEFUNKEN Markenlizenz: TELEFUNKEN licensed by: TELEFUNKEN Licenses GmbH TELEFUNKEN Licenses GmbH Vertrieb: Vestel Germany GmbH, Imported by: Vestel Germany GmbH, D-85748 Garching bei München D-85748 Garching/Munich Die Marke TELEFUNKEN ist eine eingetragene Marke der TELEFUNKEN Licenses GmbH.
