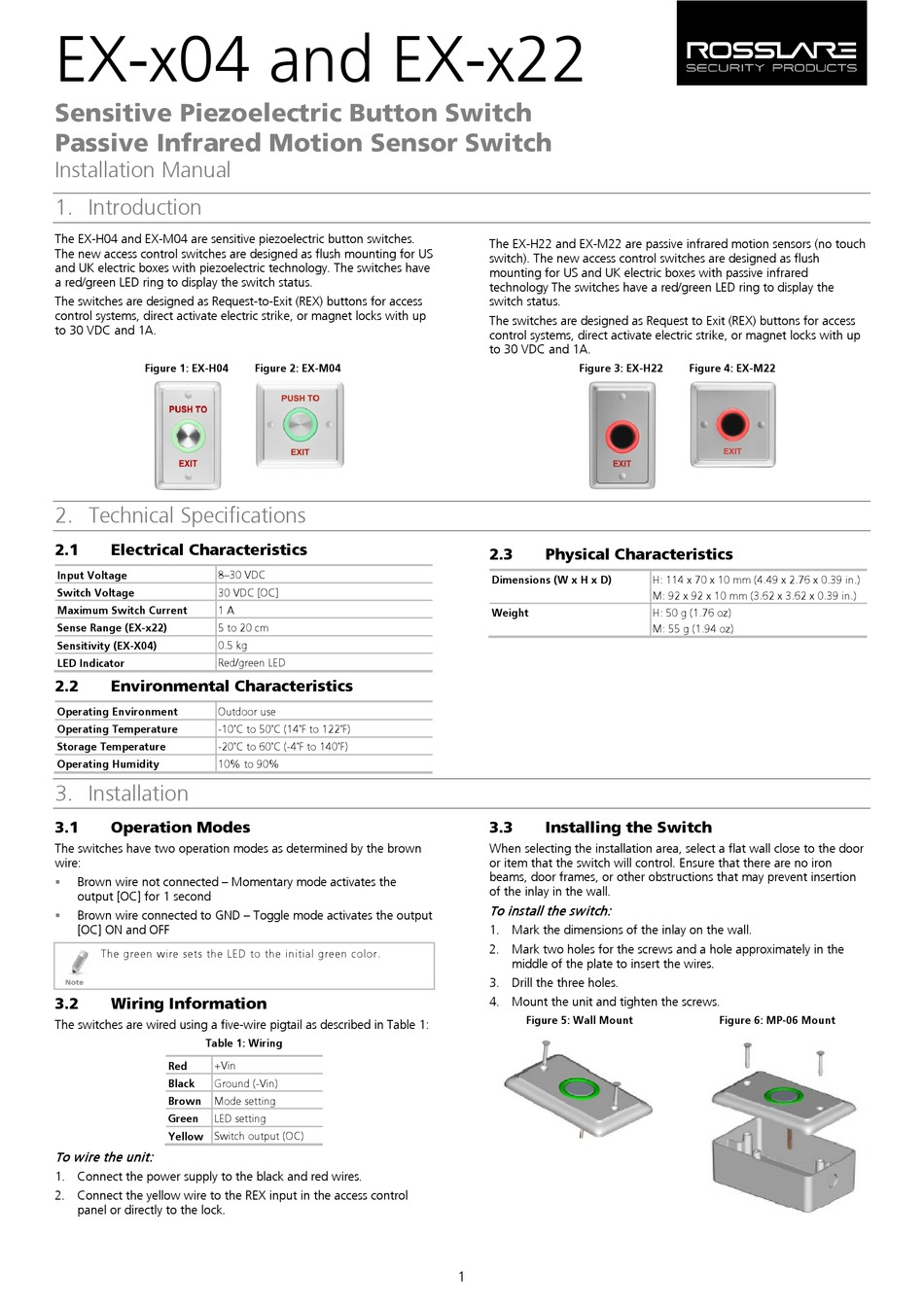

Rosslare EX-04 Series Installation Manual

EX-x04 and EX-x22
Sensitive Piezoelectric Button Switch
Passive Infrared Motion Sensor Switch
Installation Manual
1. Introduction

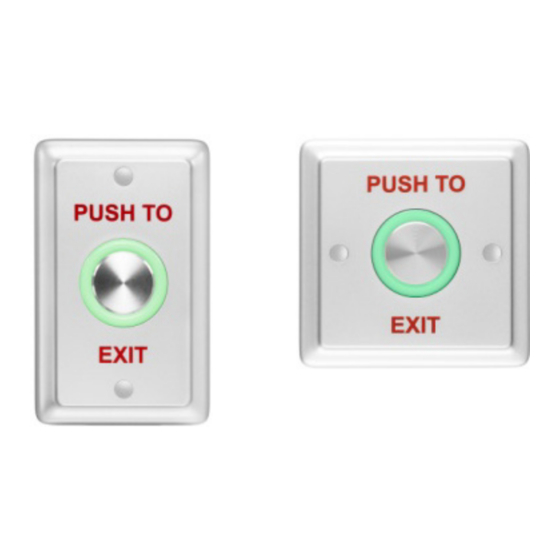

The EX-H04 and EX-M04 are sensitive piezoelectric button switches.
The new access control switches are designed as flush mounting for US
and UK electric boxes with piezoelectric technology. The switches have
a red/green LED ring to display the switch status.
The switches are designed as Request-to-Exit (REX) buttons for access
control systems, direct activate electric strike, or magnet locks with up
to 30 VDC and 1A.
Figure 1: EX-H04
2. Technical Specifications
2.1 Electrical Characteristics
Input Voltage 8–30 VDC
Switch Voltage 30 VDC [OC]
Maximum Switch Current
1 A
Sense Range (EX-x22)
5 to 20 cm
Sensitivity (EX-X04)
0.5 kg
LED Indicator
Red/green LED
2.2 Environmental Characteristics
Operating Environment
Outdoor use
Operating Temperature
-10˚C to 50˚C (14˚F to 122˚F)
Storage Temperature
-20˚C to 60˚C (-4˚F to 140˚F)
Operating Humidity
10% to 90%
3. I nstallation
2 B
3.1 O peration Modes
6 B
The switches have two operation modes as determined by the brown
wire:
Brown wire not connected – Momentary mode activates the

output [OC] for 1 second
 Brown wire connected to GND – Toggle mode activates the output
[OC] ON and OFF
The green wire sets the LED to the initial green color.
3.2 W iring Information
7 B
The switches are wired using a five-wire pigtail as described in Table 1:
Table 1: Wiring
Red
+Vin
Black
Ground (-Vin)
Brown
Mode setting
Green
LED setting
Yellow Switch output (OC)
To wire the unit:
1. Connect the power supply to the black and red wires.
2. Connect the yellow wire to the REX input in the access control
panel or directly to the lock.
Figure 2: EX-M04
The EX-H22 and EX-M22 are passive infrared motion sensors (no touch
switch). The new access control switches are designed as flush
mounting for US and UK electric boxes with passive infrared
technology The switches have a red/green LED ring to display the
switch status.
The switches are designed as Request to Exit (REX) buttons for access
control systems, direct activate electric strike, or magnet locks with up
to 30 VDC and 1A.
Figure 3: EX-H22
2.3 P hysical Characteristics
5 B
Dimensions (W x H x D)
Weight
3.3 I nstalling the Switch
8 B
When selecting the installation area, select a flat wall close to the door
or item that the switch will control. Ensure that there are no iron
beams, door frames, or other obstructions that may prevent insertion
of the inlay in the wall.
To install the switch:
1. Mark the dimensions of the inlay on the wall.
2. Mark two holes for the screws and a hole approximately in the
middle of the plate to insert the wires.
3. Drill the three holes.
4. Mount the unit and tighten the screws.
Figure 5: Wall Mount
1
Figure 4: EX-M22
H: 114 x 70 x 10 mm (4.49 x 2.76 x 0.39 in.)
M: 92 x 92 x 10 mm (3.62 x 3.62 x 0.39 in.)
H: 50 g (1.76 oz)
M: 55 g (1.94 oz)
Figure 6: MP-06 Mount
