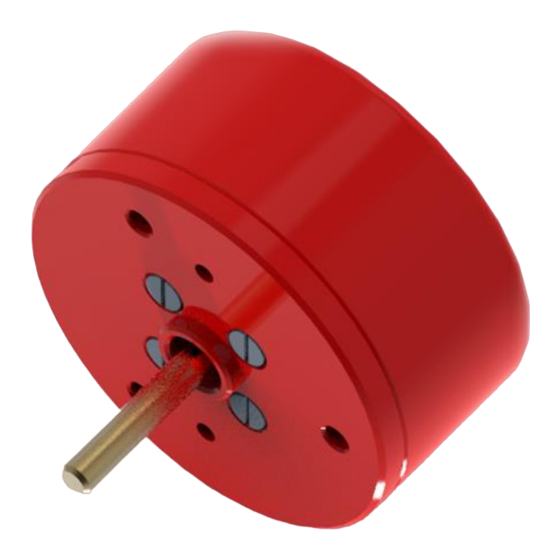

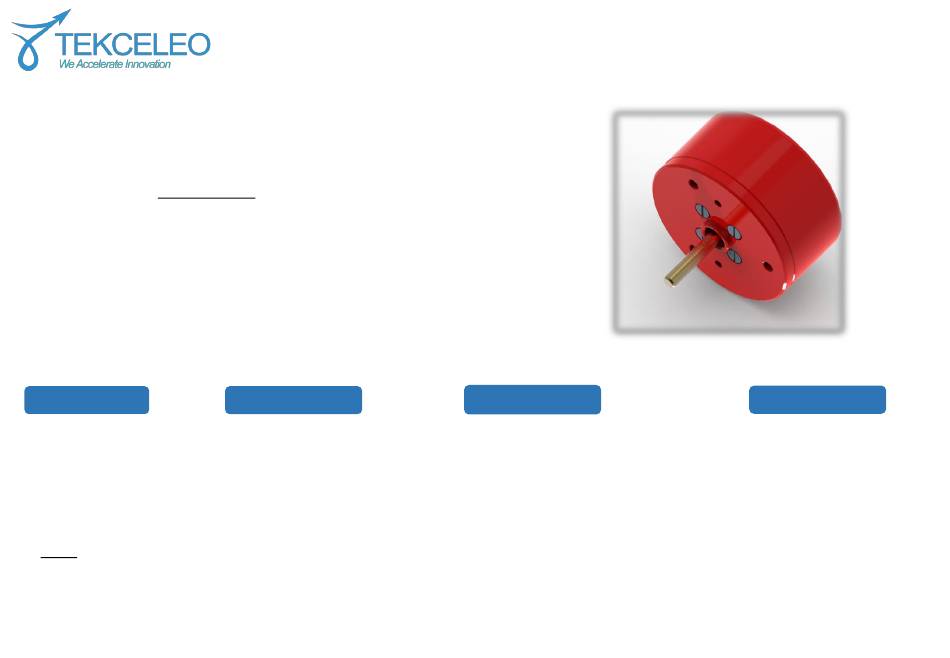

TEKCELEO WLG-20-R Getting Started

Thank you for trusting Tekceleo and buying this piezoelectric motor.
Please follow the instructions below before using this WLG-20-R motor
Inside the box
•
WLG-20-R with 30cm cable
•
WLG-20 ECU
•
US adapter plug
•
9V 2A Power Supply
Power Up
Connect the power supply into an In order to turn on/ turn off the motor,
electrical outlet. activate the on/off Switch (ON/OFF).
To change the direction of the rotation,
activate the CW/CCW Switch (DIRECTION)
(See page 6).
Note : Additional cable length can be purchased.
Available length : 1 meter and 5 meters.
WLG-20-R with embedded encoder
Getting started
Motor Control Speed Control
In order to control the speed and turn on the motor,
connect the ground pin 2 and the speed pin 1 to a
voltage generator (See page 6). If the speed pin is not
connected, the motor will not rotate.
1
Jumper Settings
In order to control the motor via the manual
switches, place the jumpers in the Switch
Control position (See page 6).
In order to control the motor via pin 3 and 4,
place the jumpers in the External Control on
pins 3 and 4 position (See page 6).
