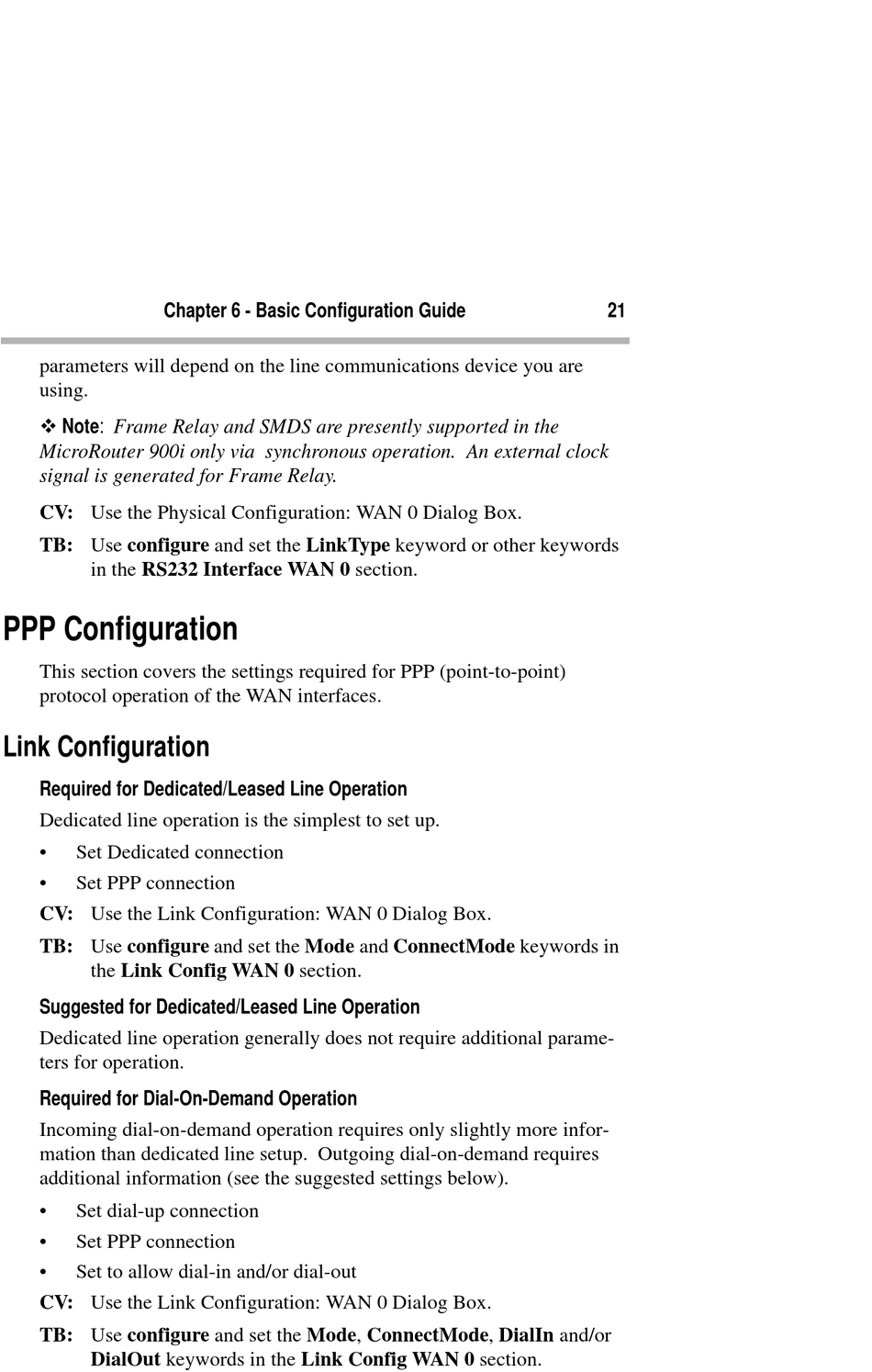

Chapter 6 - Basic Configuration Guide
parameters will depend on the line communications device you are
using.
v Note: Frame Relay and SMDS are presently supported in the
MicroRouter 900i only via synchronous operation. An external clock
signal is generated for Frame Relay.
CV: Use the Physical Configuration: WAN 0 Dialog Box.
TB: Use configure and set the LinkType keyword or other keywords
in the RS232 Interface WAN 0 section.
PPP Configuration
This section covers the settings required for PPP (point-to-point)
protocol operation of the WAN interfaces.
Link Configuration
Required for Dedicated/Leased Line Operation
Dedicated line operation is the simplest to set up.
•
Set Dedicated connection
•
Set PPP connection
CV: Use the Link Configuration: WAN 0 Dialog Box.
TB: Use configure and set the Mode and ConnectMode keywords in
the Link Config WAN 0 section.
Suggested for Dedicated/Leased Line Operation
Dedicated line operation generally does not require additional parame-
ters for operation.
Required for Dial-On-Demand Operation
Incoming dial-on-demand operation requires only slightly more infor-
mation than dedicated line setup. Outgoing dial-on-demand requires
additional information (see the suggested settings below).
•
Set dial-up connection
•
Set PPP connection
•
Set to allow dial-in and/or dial-out
CV: Use the Link Configuration: WAN 0 Dialog Box.
TB: Use configure and set the Mode, ConnectMode, DialIn and/or
DialOut keywords in the Link Config WAN 0 section.
21
