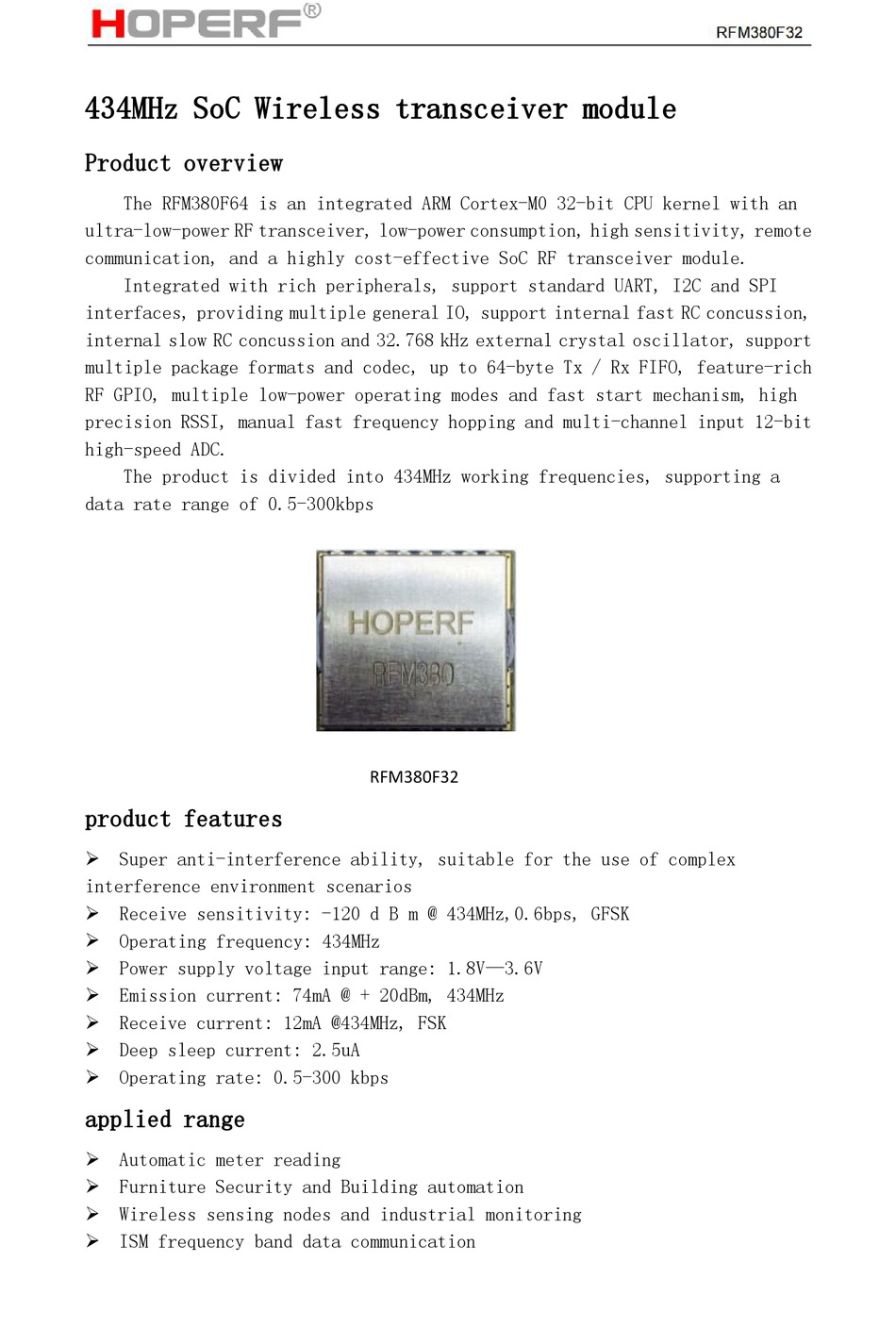

434MHz SoC Wireless transceiver module
Product overview
The RFM380F64 is an integrated ARM Cortex-M0 32-bit CPU kernel with an
ultra-low-power RF transceiver, low-power consumption, high sensitivity, remote
communication, and a highly cost-effective SoC RF transceiver module.
Integrated with rich peripherals, support standard UART, I2C and SPI
interfaces, providing multiple general IO, support internal fast RC concussion,
internal slow RC concussion and 32.768 kHz external crystal oscillator, support
multiple package formats and codec, up to 64-byte Tx / Rx FIFO, feature-rich
RF GPIO, multiple low-power operating modes and fast start mechanism, high
precision RSSI, manual fast frequency hopping and multi-channel input 12-bit
high-speed ADC.
The product is divided into 434MHz working frequencies, supporting a
data rate range of 0.5-300kbps
product features
 Super anti-interference ability, suitable for the use of complex
interference environment scenarios
 Receive sensitivity: -120 d B m @ 434MHz,0.6bps, GFSK
 Operating frequency: 434MHz
 Power supply voltage input range: 1.8V—3.6V
 Emission current: 74mA @ + 20dBm, 434MHz
 Receive current: 12mA @434MHz, FSK
 Deep sleep current: 2.5uA
 Operating rate: 0.5-300 kbps
applied range
 Automatic meter reading
 Furniture Security and Building automation
 Wireless sensing nodes and industrial monitoring
 ISM frequency band data communication

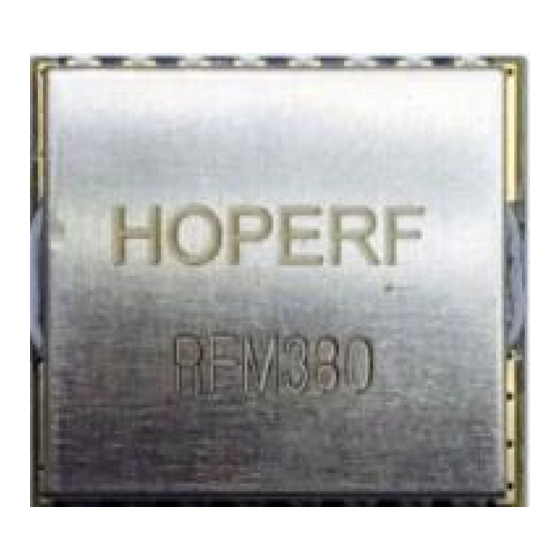

RFM380F32

Advertisement

loading
Need help?

Need help?

Do you have a question about the RFM380F64 and is the answer not in the manual?

Questions and answers

Summary of Contents for HopeRF RFM380F64

  • Page 1 434MHz SoC Wireless transceiver module Product overview The RFM380F64 is an integrated ARM Cortex-M0 32-bit CPU kernel with an ultra-low-power RF transceiver, low-power consumption, high sensitivity, remote communication, and a highly cost-effective SoC RF transceiver module. Integrated with rich peripherals, support standard UART, I2C and SPI interfaces, providing multiple general IO, support internal fast RC concussion, internal slow RC concussion and 32.768 kHz external crystal oscillator, support...
  • Page 2 Product foot position Figure 1: RFM380F32 Face View...
  • Page 3 Table 1, the foot-bit definition of the RFM380F32 foot name describe Configuration function MCU and so on UART1_RXD、 TIM6_CHA、 UART0_RXD、 PCA_CH4、 TIM5_CHA、 spi_mosi、i2c_scl、AIN6/VC6/AVREF MCU and so on UART0_TXD,TIM0_GATE、TIM4_CHB、 SPI_MISO,I2C_SDA, AIN5/VC5,UART1 TXD RESET Hard reset pin ------------------- MCU and so on UART2_RXD、pca_ch1、tim5_chb、PCA_ECI、UART1_RXD、...
  • Page 4: Electrical Parameters

    Electrical parameters Test conditions, power supply 3.3V, temperature 25℃ Table 2, a list of electrical parameters parameter symbol status least representa crest value unit value tive value service frequency RFM380F32-433S2 mode receiving 434MHz1 Kbps -120 sensitivity data rate Kbps Receive bandwidth working voltage Receiveworking...
  • Page 5 Module outline dimension drawing Figure 2, the module size diagram...
  • Page 6 FCC Statement FCC standards: FCC CFR Title 47 Part 15 Subpart C Section 15.231 Trace antenna with antenna gain 3.555dBi This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 7 —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
  • Page 8 Directional spring antenna specification Below is ntenna specification You can see antenna size from below specification And PCB Pad size for spring antenna just follow the below chart. Spring antenna location on PCB are J2, and the Empty Area except spring antenna should be see just follow the below two charts.
  • Page 9 RF433 module The RF line L1——15nH,0603; R1——0Ω,0603; C9,no use...
