Systembuild Evolution 7532196COM Manual page 11

STEP 5
Quick
Assembly
Tip
LOCK
13
1 ×10 ×6
Proper orientation of CAM LOCK

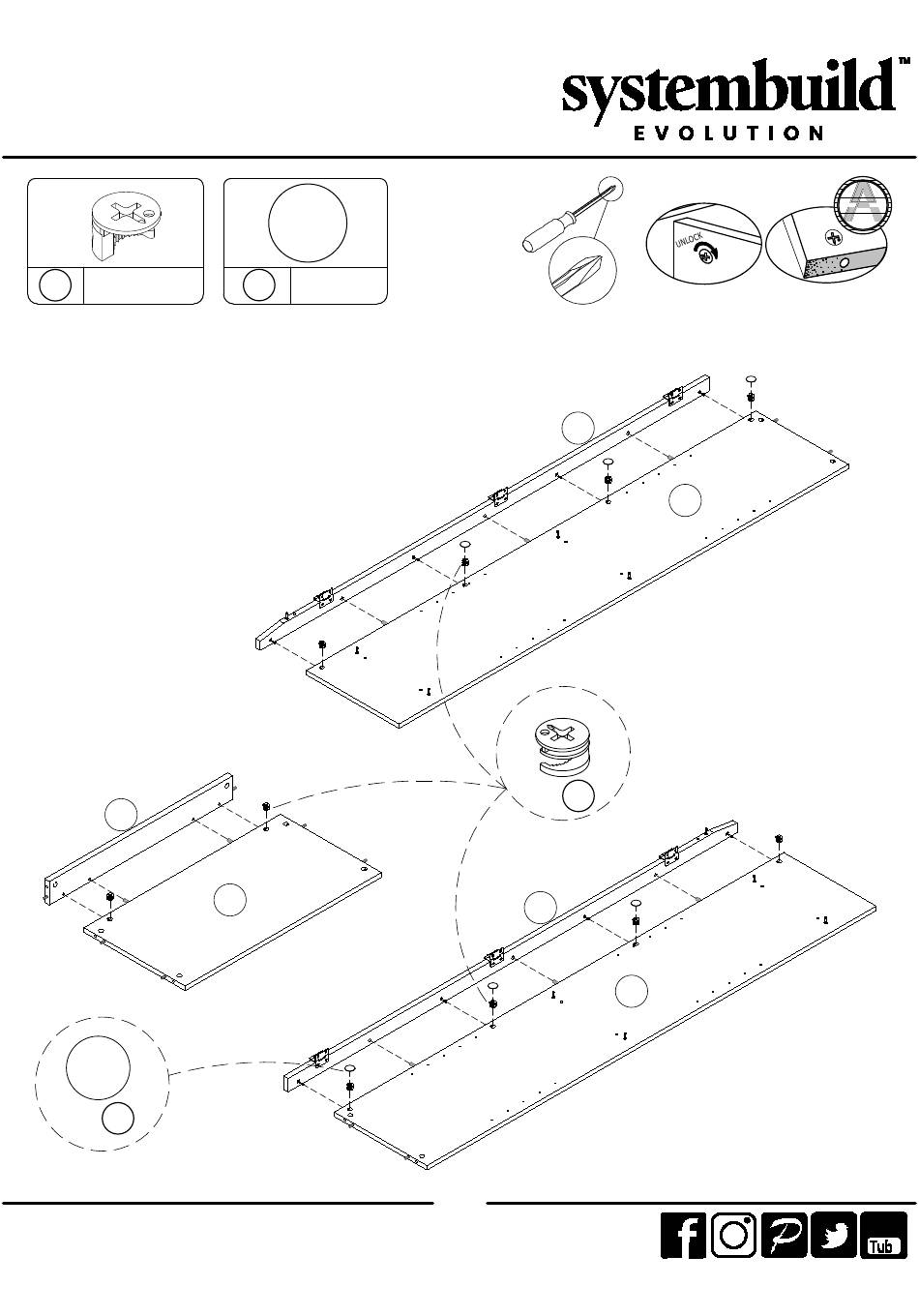

5.1 Attach (L) to (B) with (1) as illustrated.
5.2 Attach (M) to (C) with (1) as illustrated.
5.3 Attach (H) to (F) with (1) as illustrated.
5.4 Use (13) to cover cam lock hole as illustrated.
L
B
1
H
F
M
C
13
11
