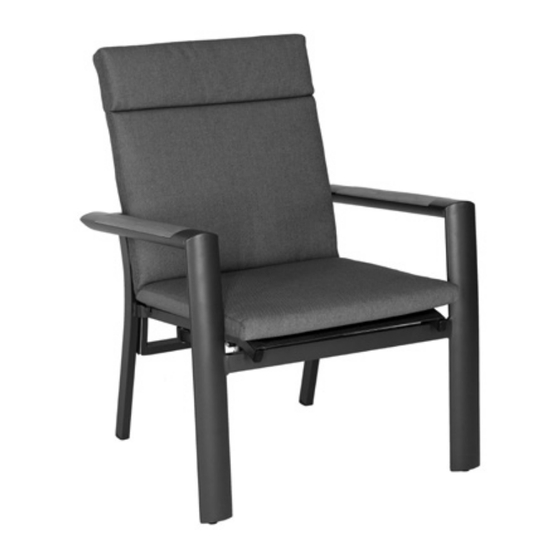

- Page 1 Assembly Instructions Surf Active Lounge chair A20013-0200 IMPORTANT PLEASE KEEP THIS BOOKLET FOR FUTURE REFERENCE. THIS IS IMPORTANT INFORMATION REGARDING THE USE AND CARE OF YOUR GARDEN FURNITURE. ASSEMBLY PERSONS TIME REQUIRED Nov 2022...
-
Page 2: Parts List
Parts List 1 Seat Frame 2 Back Frame 3 Cushion A Bolt M6x40 B Bolt M8x50 C Washer ø8.5 x ø16 x 1.5mm D Nut M8 E Spring Washer M6 F Bolt Head Cap G Nut Cap H Washer I Washer ø20 x ø10 x 2mm ø12 x ø6 x 1.5mm J Alen Key... - Page 3 6. Do not use any other tools other than those recommended to build this product. 7. Please do not use substitute parts. Use only additional or replacement parts supplied by Kettler. 8. In the unlikely event that this product has missing or damaged parts, please visit our website www.kettler.co.uk...
- Page 4 Assembly Ensure the chair is protected during assembly to avoid damage to the surface. Finished.
-
Page 5: Care And Maintenance Instructions
• Kettler cushions are not suitable for dry cleaning and are not machine washable. Sponge clean only. We recommend the use of the Kettler fabric care kit to clean and protect your cushions. This is available to purchase form the Kettler website. -
Page 6: For Your Safety
• Damaged components may endanger your safety or shorten the life of the product. Replace all damaged parts immediately. Use only spare parts manufactured by Kettler. Should you wish to purchase spare parts, they can be ordered directly from: www.kettler.co.uk/shop •...
