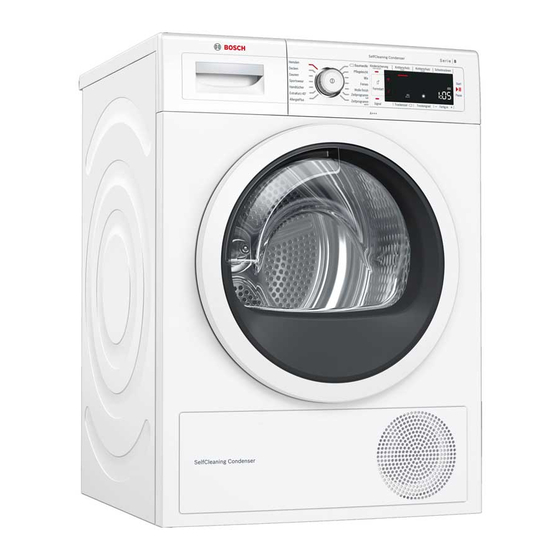

- Page 1 Tumble dryer WTB86201ID [en] User manual and installation instructions...
-
Page 2: Table Of Contents
Futher information and explanations are available online: Table of contents 1 Safety ........... 4 9 Programmes ...... 22 1.1 General information.... 4 9.1 Automatic programmes... 22 1.2 Intended use...... 4 9.2 Timed programmes .... 23 1.3 Restriction on user group.. 4 10 Accessories...... 25 1.4 Safe installation ...... - Page 3 15 Cleaning and servicing ... 32 15.1 Tips on cleaning and care .. 32 15.2 Base unit ....... 32 15.3 Moisture sensor..... 34 16 Troubleshooting...... 36 17 Transportation, storage and disposal ........ 40 17.1 Preparing the appliance for transportation ...... 40 17.2 Disposing of old appliance ... 40 18 Customer Service.... 41 18.1 Product number (E-Nr.) and production number (FD)..
-
Page 4: Safety
en Safety 1 Safety Observe the following safety instructions. 1.1 General information ¡ Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit. 1.2 Intended use Only use this appliance: ¡... -
Page 5: Safe Installation
Safety en 1.4 Safe installation WARNING ‒ Risk of electric shock! Incorrect installation is dangerous. ▶ Connect and operate the appliance only in accordance with the specifications on the rating plate. ▶ Connect the appliance to a power supply with alternating cur- rent only via a properly installed socket with earthing. ▶... - Page 6 en Safety ▶ If the power cord is too short and a longer one is not available, please contact an electrician to have the domestic installation adapted. WARNING ‒ Risk of injury! The high weight of the appliance may result in injury when lifted. ▶...
-
Page 7: Safe Use
Safety en CAUTION ‒ Risk of cutting! Touching sharp edges on the appliance may lead to cuts. ▶ Do not touch the sharp edges on the appliance. ▶ Wear protective gloves when installing and transporting the ap- pliance. 1.5 Safe use WARNING ‒ Risk of electric shock! If the appliance or the power cord is damaged, this is dangerous. - Page 8 en Safety WARNING ‒ Risk of explosion! If there is coal dust or flour in the air around the appliance, this may cause an explosion. ▶ Keep the area around the appliance clean during operation. WARNING ‒ Risk of poisoning! Condensation water from this appliance is not suitable for drinking and may be contaminated with fluff.
-
Page 9: Safe Cleaning And Maintenance
Safety en ▶ If drying is interrupted early, remove the laundry immediately and spread it out. CAUTION ‒ Risk of injury! The covering plate may break if you stand on or climb onto the appliance. ▶ Do not stand on or climb onto the appliance. The appliance may tip over if you sit on or lean against the open door. - Page 10 en Safety WARNING ‒ Risk of injury! The use of non-original spare parts and non-original accessories is dangerous. ▶ Only use the manufacturer's original spare parts and original ac- cessories. WARNING ‒ Risk of poisoning! Poisonous fumes may be given off if you use cleaning agents that contain solvents.
-
Page 11: Preventing Material Damage
Preventing material damage en Clean the appliance with nothing ▶ 2 Preventing material but water and a soft, damp cloth. Remove all detergent residue, damage ▶ spray residue or other residues im- mediately if they come into contact ATTENTION! with the appliance. The functionality of the appliance may be impaired if you use the wrong quantity of fabric softener, de-... -
Page 12: Energy Saving Mode
en Installation and connection Check the appliance for visible After drying, clean the fluff filter damage. → Page 27. Open the door. a If the fluff filter is dirty, this reduces Remove any accessories from the the air flow in the appliance, ex- drum. -
Page 13: Requirements For The Install- Ation Location
Installation and connection en 4.3 Requirements for the in- Installation loca- Requirements tion stallation location In a washer-dryer Only use the ori- ATTENTION! stack ginal connection If the appliance is tilted at an angle set from the greater than 40°, residual water may dryer manufac- leak out of the appliance and cause turer when set-... -
Page 14: Aligning The Appliance
en Installation and connection 4.4 Aligning the appliance In order to reduce vibrations and noises, align the appliance correctly. To align the appliance, turn the ap- ▶ pliance feet. Check that the appli- ance is level using a spirit level. All appliance feet must stand firmly on the ground. -
Page 15: Familiarising Yourself With Your Appliance
Familiarising yourself with your appliance en 5 Familiarising yourself with your appliance 5.1 Appliance You can find an overview of the parts of your appliance here. On certain models, specific details such as the colour and shape may differ from those pictured. Ventilation opening Door Maintenance flap on the base Condensation container... -
Page 16: Control Panel
en Familiarising yourself with your appliance 5.2 Control panel You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. Programmes → Page 22 Programme selector → Page 26 Display → Page 17 Buttons → Page 19... -
Page 17: Display
Display en 6 Display The display shows the current settings, options or relevant information. Example: Display Display Designation Description 0:40 Programme dura- Expected programme duration or pro- tion/programme gramme time remaining in hours and time remaining minutes. 1:25 Timed programme The timed programme is set. → "Timed programmes", Page 23 Programme end → "Buttons", Page 20... -
Page 18: Dryness Level
en Display Display Designation Description Condensation Empty the condensation container container → Page 29. Insert the condensation container → Page 30. Fluff filter Clean the fluff filter. Base unit → "Cleaning the fluff filter", Page 27 Clean the base unit. → "Base unit", Page 32 Drying Programme status Dryness level: Iron Programme status Dryness level: Programme status... - Page 19 Buttons en 7 Buttons Below is an overview of the buttons and their setting options. Button Selection Description Start/Pause ¡ Start Start, cancel or pause the programme. ¡ Cancel ¡ Pause 3 sec. ¡ Activate Activate or deactivate the childproof lock. ¡...
- Page 20 en Buttons Button Selection Description Finished in Up to 24 hours Set the programme end time. The programme duration is already included in the set number of hours. Once the programme has started, the pro- gramme duration is dis- played. Drying Time Multiple selection Set the programme dura- tion for timed pro-...
-
Page 21: Changing The Dryness Level
Dryness level en 8 Dryness level Each automatic programme has a specified dryness level. The dryness level defines how dry or damp your laundry is after the programme ends. Dryness level Laundry Drying result Cupboard Multi-layered, thick laundry The laundry is dry. Dry Plus that does not dry readily. -
Page 22: Programmes
en Programmes 9 Programmes You can dry your fabrics using either an automatic programme or a timed pro- gramme. 9.1 Automatic programmes Automatic programmes are pro- Tips grammes in which humidity sensors ¡ Select the dryness level according measure the residual moisture in the to the type of fabric or the desired laundry during the drying cycle. -
Page 23: Timed Programmes
Programmes en Programme Description Max. load (kg) AllergyPlus Dry hard-wearing, heat-resistant fabrics made of cotton or linen. Note: Particularly suitable for strict hy- giene requirements. Sportswear Dry self-drying sportswear made of per- formance fibres, microfibres and synthet- ics. Super 15 min Suitable for shirts and blouses made of cotton, linen, synthetics or blended fab- rics. - Page 24 en Programmes Programme Description Max. load (kg) Time program Dry all types of fabric except for wool and warm silk. Suitable for pre-dried or slightly damp laundry and for drying off multi-layered, thick laundry.
-
Page 25: Accessories
Accessories en 10 Accessories Use original accessories. These have been made especially for your appli- ance. Note: Some accessories are avail- able in other colours. Contact → "Customer Service", Page 41. Order number Connection kit To save space, stack the WTZ20410 appliance on a suitable washing machine of the same width and depth and that is from the... -
Page 26: Laundry
en Laundry Turn the programme selector and 11 Laundry set the required programme. → "Programmes", Page 22 If required, adjust the programme 11.1 Preparing the laundry settings. → "Adjusting the programme set- ATTENTION! tings", Page 26 Objects remaining in the laundry may damage the laundry and the drum. 12.3 Adjusting the pro- Remove all items from any pock- ▶... -
Page 27: Changing The Activated Programme End Time
operation en a The display shows the programme 12.9 Unloading the laundry duration or the programme end Open the door. time. Remove the laundry from the a After the programme has ended, the display shows: "End". drum. 12.6 Changing the activated 12.10 Switching off the appli- programme end time ance You can repeatedly change the set... - Page 28 en operation Remove the fluff filter. Remove the fluff. Remove the fluff from the recess. Clean the fluff filter thoroughly un- der warm, running water and then dry it off. Ensure that no fluff falls into the air channel. Open the fluff filter. Close the fluff filter.
-
Page 29: Condensation Container
operation en Insert the fluff filter. Pull out the condensation con- tainer, keeping it level. Close the door. Empty the condensation container. 12.12 Condensation con- tainer Condensation forms during drying, which your appliance uses for auto- matic cleaning. By default, the con- densation is collected in the appli- ance's condensation container. -
Page 30: Childproof Lock
en Childproof lock Inserting the condensation container Push the condensation container ▶ in as far as it will go. 13 Childproof lock Secure your appliance against being operated unintentionally using the controls. 13.1 Activating the childproof lock Press and hold the two 3 sec. ▶... -
Page 31: Basic Settings
Basic settings en 14 Basic settings You can configure the basic settings for your appliance to meet your needs. 14.1 Overview of the basic settings Basic setting Programme Value Description position End signal 0 (off) Set the volume of the signal at the 1 (quiet) end of the programme. -
Page 32: Changing The Basic Set- Tings
en Cleaning and servicing 14.2 Changing the basic set- nothing but water and a damp tings cloth. Set the programme selector to po- Remove all de- Fresh deposits sition 1. tergent residue, are easier to re- spray residue or move without other residues leaving any immediately. - Page 33 Cleaning and servicing en Open the lever for the heat ex- Clean the heat exchanger cover changer cover. under running water and dry it. Make sure that you remove all dirt Pull out the heat exchanger cover from the seal. by the handle. Pull out the heat exchanger hori- zontally.
-
Page 34: Moisture Sensor
en Cleaning and servicing Clean the opening with a soft, Insert the heat exchanger cover by damp cloth. the handle. Slide the heat exchanger in hori- Close the lever for the heat ex- zontally as far as it will go. changer. Ensure that the heat exchanger is Close the maintenance flap. - Page 35 Cleaning and servicing en ance changes the duration of the Note: If you do not clean the appli- automatic programme depending on ance as described, the appliance's the residual moisture in the laundry. functionality may be impaired. Open the door. Cleaning the moisture sensor Clean the moisture sensor with a Over time, residue from limescale, sponge.
-
Page 36: Troubleshooting
en Troubleshooting 16 Troubleshooting WARNING Risk of electric shock! Incorrect repairs are dangerous. Only use genuine spare parts when repairing the appliance. ▶ If the power cord of this appliance is damaged, it must be replaced by the ▶ manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk. - Page 37 Troubleshooting en Fault Cause and troubleshooting Creasing. Activate the Anti-Crease function. ▶ → "Buttons", Page 19 and programme ter- Condensation tank filled. minated. → "Emptying the condensation container", Page 29. → "Inserting the condensation container", Page 30. → "Starting the programme", Page 26. Water drain hose is caught or jammed. Ensure that the water drain hose is not kinked or trapped.
- Page 38 en Troubleshooting Fault Cause and troubleshooting The drying time is too Fluff filter is soiled. long. → "Cleaning the fluff filter", Page 27 ▶ The ambient temperature is greater than 30 °C. Ensure that the ambient temperature is below 30 ▶ °C. The ambient temperature is lower than 15 °C. Ensure that the ambient temperature is above 15 ▶...
- Page 39 Troubleshooting en Fault Cause and troubleshooting The laundry is too Unsuitable dryness level set. damp. → "Changing the dryness level", Page 21. ▶ Drying target not adjusted. → "Adjusting the dryness level", Page 21. ▶ Load too small. Set a timed programme for the subsequent drying. ▶...
-
Page 40: Transportation, Storage And Disposal
en Transportation, storage and disposal 17.2 Disposing of old appli- 17 Transportation, stor- ance age and disposal Valuable raw materials can be re- used by recycling. 17.1 Preparing the appliance for transportation WARNING Risk of harm to health! Tip: The appliance may contain re- Children can lock themselves in the sidual water, which may drip out of it appliance, thereby putting their lives when transported. -
Page 41: Customer Service
Customer Service en 18 Customer Service Detailed information on the warranty period and terms of warranty in your country is available from our after- sales service, your retailer or on our website. If you contact Customer Service, you will require the product number (E- Nr.) and the production number (FD) of your appliance. -
Page 42: Consumption Values
en Consumption values 19 Consumption values The specified values are indicative amount of laundry being loaded, en- only and were determined in accord- vironmental conditions and the activ- ance with the applicable standard ation of additional functions. IEC61121. The expected programme dura- The actual values may deviate from tion/"Ready in"... -
Page 43: Technical Data
Technical data en Mains voltage 220-240 V, Ambient temper- ¡ Minimum: 50 Hz ature 5 °C ¡ Maximum: Minimum in- 35 °C stallation protec- tion Length of the 145 cm power cord Nominal power 2600 W... - Page 44 Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts. Find out everything about the many ways Bosch can support you: www.bosch-home.com/service Contact data of all countries are listed in the attached service direct- ory.
