Before you go to the Step 2 in the chapter 3.2.1 installation steps, please pull through cable with the
waterproof airproof plug to the device enclosure via the installation hole.
Step 3
Refer to Step 4 in the chapter 3.2.1 installation steps to install and connect the cable pin to the device
and then follow the proper steps to go on the installation.
Important
This series product has the power connection pin and I/O connection pin for you to pull through
the signal cable.
3.3 Micro SD Card Installation
Warning!
Please unplug the device power cable and then shutdown the device before you install the Micro
SD card.
Step 1
Please refer to Step 4 in chapter 3.2.1 installation steps to open the device protection enclosure.
Step 2
Rotate the two screws at pin to take pin out.
Step 3
Please find the "SD" mark on pin and adjust the Micro SD card direction according to prompt direction.
Insert the card to the slot and then install the Micro SD card. See Figure 3-7.

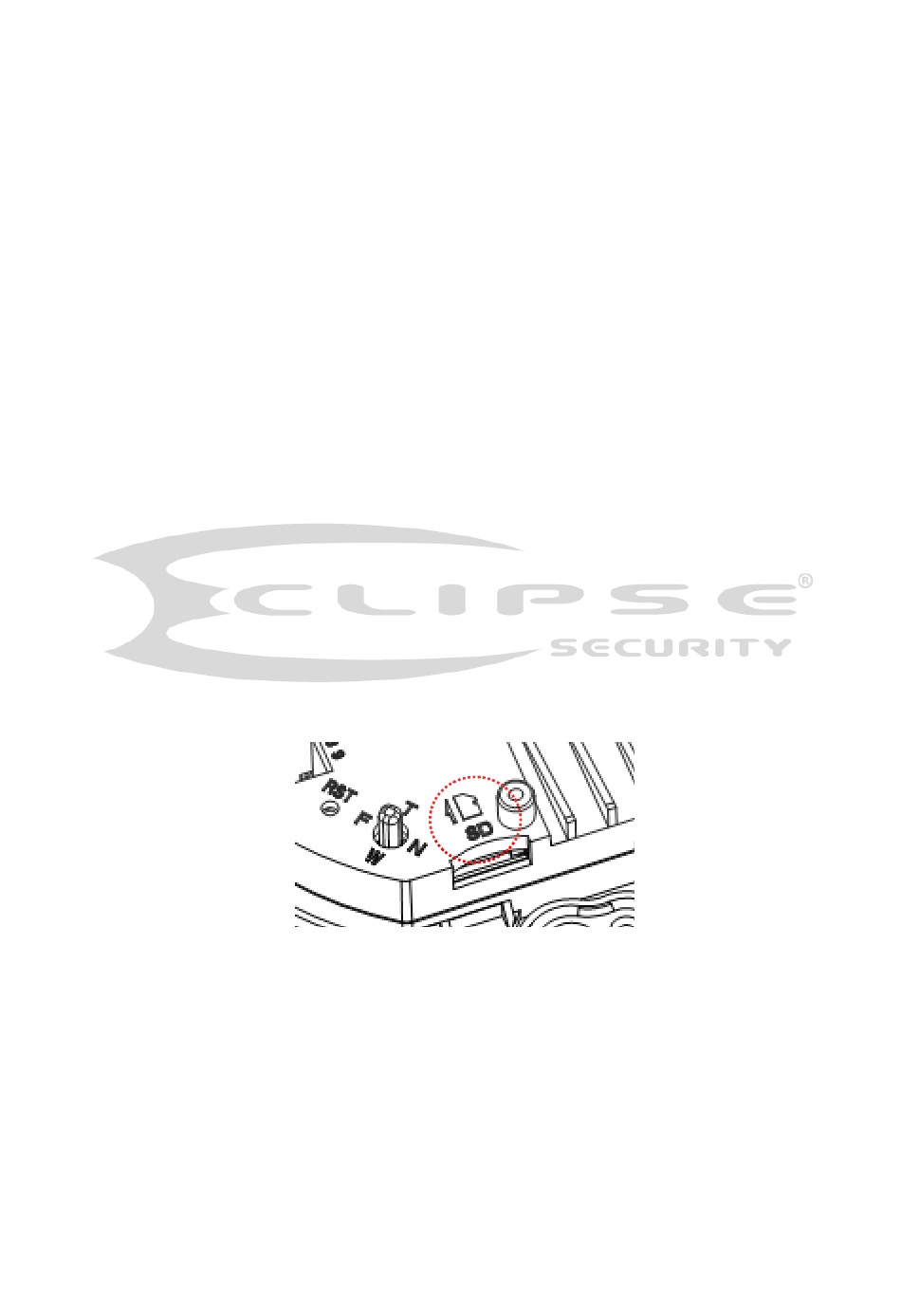

Figure 3-7 Micro SD card
Step 4
Please install the pin back to device and put the device protection enclosure back. Micro SD installation
is completed.
24
