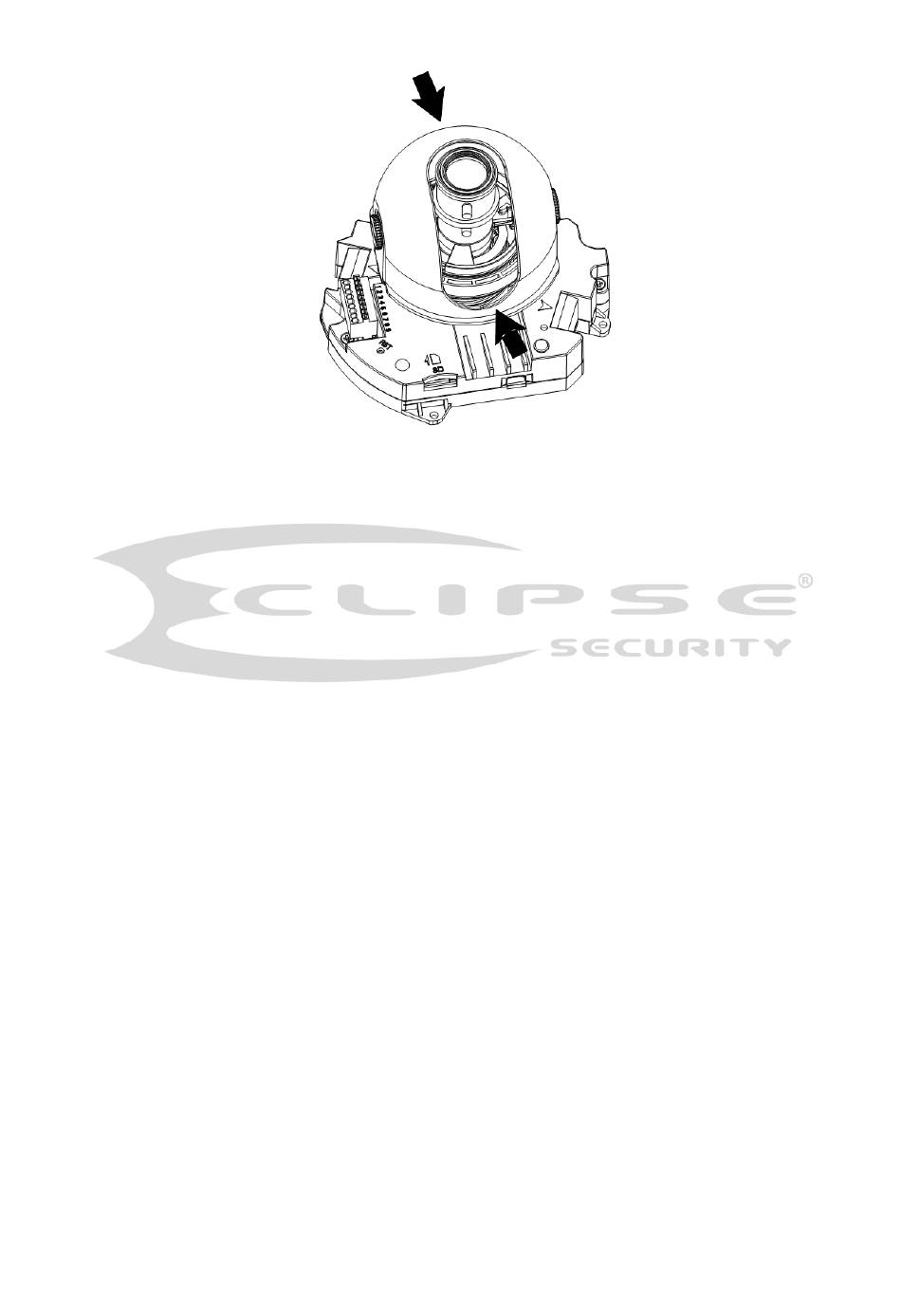

Figure 3-3 Installation 2
b) Lens horizontal rotation angle setup. Please refer to Figure 3-4 to unfasten the lock screw A and
adjust the horizontal monitor angle to the proper position. Then fix the lock screw A. The horizontal
angle ranges from 0° ~+350° .
c) Lens vertical rotation angle. Please refer to Figure 3-4 to unfasten the lock screw B and lock screw C
and adjust the vertical monitor angle to the proper position. Then fix the lock screw B and lock screw C.
The vertical angle ranges from -20° ~+70° .
d) I
mage horizontal rotation angle setup. Please refer to Figure 3-4 to turn lock screw D to adjust the
video horizontal angle. Then fix the lock screw B and C. The video horizontal angle ranges from
0° ~+350° .
e) For the motorized zoom series product, please skip current step. Please refer to chapter 3.2.2 for the
lens zoom and focus operation of the manual focus series product.
f) For the IR series product, please skip current step and complete the angle setup directly. For the non-
IR series product, please put back the black plastic decoration enclosure to complete the angle setup.
See Figure 3-4.
