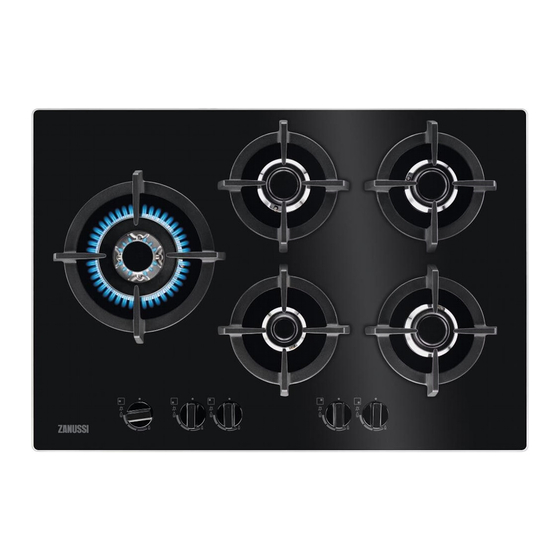

- Page 1 User Manual GETTING STARTED? EASY. ZGO78530BA EN User Manual...
-
Page 2: Safety Information
VISIT OUR WEBSITE TO: Get usage advice, brochures, trouble shooter, service and repair information: www.zanussi.com/support SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. - Page 3 This appliance may be used in, offices, hotel guest rooms, bed • & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels. WARNING: The appliance and its accessible parts become hot •...
-
Page 4: Safety Instructions
Where the appliance is directly connected to the power supply, • an all-pole isolating switch with a contact gap is required. Complete disconnection in compliance with the conditions specified in overvoltage category III must be guaranteed. The earth cable is excluded from this. When you route the mains cable, make sure that the cable •... -
Page 5: Gas Connection
• Do not use multi-plug adapters and extension CAUTION! The use of a gas cooking cables. appliance results in the production of • Make sure not to cause damage to the mains heat, moisture and products of plug (if applicable) or to the mains cable. combustion in the room in which it is Contact our Authorised Service Centre or an installed. -
Page 6: Installation
• Be careful not to let objects or cookware fall on • Clean the appliance regularly to prevent the the appliance. The surface can be damaged. deterioration of the surface material. • Never leave a burner on with empty cookware or •... - Page 7 Make sure that the gas supply WARNING! When installation is pressure of the appliance obeys the complete, make sure that the seal of recommended values. The adjustable each pipe fitting is correct. Use a connection is fixed to the soapy solution, not a flame! comprehensive ramp by means of a threaded nut G 1/2".
- Page 8 ELECTRICAL CONNECTION ASSEMBLY • Make sure that the rated voltage and type of power on the rating plate agree with the voltage and the power of the local power supply. • This appliance is supplied with a mains cable. It has to be supplied with a correct plug which can hold the load that the rating plate rates.
-
Page 9: Product Description
CAUTION! Install the appliance only on a worktop with flat surface. POSSIBILITIES FOR INSERTION The panel installed below the hob must be easy to remove and let an easy access in case a technical assistance intervention is necessary. Kitchen unit with door 30 mm min 20 mm (max 150 mm) -
Page 10: Daily Use
CONTROL KNOB Symbol Description Symbol Description minimum gas supply no gas supply / off position ignition position / maximum gas supply DAILY USE C. Ignition candle WARNING! Refer to Safety chapters. D. Thermocouple IGNITION OF THE BURNER BURNER OVERVIEW Always light the burner before you put on the cookware. -
Page 11: Turning The Burner Off
CAUTION! In the absence of The hob is supplied with the electricity you can ignite the burner progressive valves. They make the without electrical device; in this case flame regulation more precise. approach the burner with a flame, turn the control knob counter-clockwise to TURNING THE BURNER OFF maximum gas supply position and To put the flame out, turn the knob to the off... -
Page 12: Care And Cleaning
CARE AND CLEANING a pan support properly, make sure that its arms fits WARNING! Refer to Safety chapters. the cut-outs placed at the base of the burner as shown in the picture. This way, a pan support is stable and fixed. GENERAL INFORMATION •... -
Page 13: Troubleshooting
TROUBLESHOOTING WARNING! Refer to Safety chapters. WHAT TO DO IF... Problem Possible cause Remedy There is no spark when you try The hob is not connected to an Check if the hob is correctly to activate the spark generator. electrical supply or it is con- connected to the electrical nected incorrectly. -
Page 14: Technical Data
LABELS SUPPLIED WITH THE ACCESSORIES BAG Stick the adhesive labels as indicated below: MOD. MOD. MOD. TYPE PROD.NO. IP20 PROD.NO. PROD.NO. SER.NO. 0049 SER.NO SER.NO 03 IT DATA DATA MADE IN ITALY A. Stick it on Guarantee Card and send this part C. -
Page 15: Environmental Concerns
OTHER TECHNICAL DATA Gas original: G20 (2H) 20 mbar 10,45 kW TOTAL POWER: Gas replace- G30 (3+) 28-30 mbar 745 g/h ment: G31 (3+) 37 mbar 732 g/h Electric supply: 220-240 V ~ 50-60 Hz Appliance cate- II2H3+ gory: Gas connection: R 1/2"... - Page 16 WWW.ZANUSSI.COM/SHOP...
