FlySky FS-iBA01 Quick Start Manual

产品介绍 Introduction
FS-iBA01 是一款采用 i-BUS2 协议适配富斯 AFHDS 3 增强版
接收机的高度传感器。设计小巧，易安装，可实时回传高度数
据，适配多种车或飞机模型。
概览 Overview
[1]
[2]
[3]
舵机接口 /Interface
产品规格 Specifications
产品型号：FS-iBA01
适配设备：支持 i-BUS2 协议系列接收机（如 FTr8B、
FTr12B、INr6-HS 等富斯 AFHDS 3 增强版接收机）
适配机型：车或飞机等
协议类型：i-BUS2
测量精度：1 米
测量范围：-1000 ~ 8000 米
爬升率：-150m/s ~ +150m/s
输入电源：3.5~9V/DC
工作电流：10mA/5 V
在线更新：不支持
外形尺寸：160mm（长）
机身重量：3.5g
温度范围：-20℃ ~ +85℃
湿度范围：20% ~ 95%
安规认证：CE，FCC
安装说明 Installation
勿将高度传感器安装在密闭位置！
勿将高度传感器安装在可能会被风或气流撞击的位置！
本传感器利用大气压计算海拔高度。随着海拔的上升，
大气压会逐渐降低，FS-iBA01 基于此来估算海拔高度。
此外天气状况也会引起大气压变化，如温度、湿度等因
素，相同位置下传感器检测到的高度数值可能会有细微
变化。
高度传感器安装步骤如下：
1. 使用 3M 贴将高度传感器固定在模型合适位置处，
注意固定的面需平整。也可使用扎带将其捆绑在模
型上，注意力度，避免扎带勒坏产品；
2. 将舵机接口连接至接收机 Newport 接口。在与此接
收机已对码的发射机端，将接收机对应的 Newport
接口协议设置为 i-BUS2，即可在发射机端查看相关
信息。
示意图：
FS-iBA01
注：
1. 不同应用对线材长度要求不同，如需加延长线，请
注意 iBA01 接口为舵机接口，针脚定义参考前面【概
览】描述。
2. 适配支持 i-BUS2 协议的发射机：Noble （固件版本
V2.0.93 及以上）、Noble Lite（固件版本 V1.0.10 及
以上）、Noble pro、PL18（固件版本 1.0.55 及以上）
和 PL18 Lite（固件版本 1.0.65 及以上）；
3. 若高度传感器正常工作，此时 LED 灯常亮；
4. 若高度传感器已连接电源但未检测到 i-BUS2 信号，
此时 LED 灯慢闪。
Http://www.flysky-cn.com
Copyright ©2022 Flysky Technology co., ltd
FS-iBA01
17mm
[4]
Newport 接口
接收机

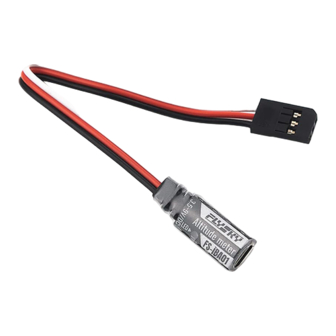

FS-iBA01 is a altitude sensor that adapts to Flysky AFHDS 3 enhanced
receiver in compliance with i-BUS2 protocol. It features compact design,
easy installation, real time altitude data return, and adaption to a variety
of car and airplane models.
8mm
尺寸 /Dimensions: 17*8*4mm
Product Type: FS-iBA01
Compatible Devices: Supports receivers that comply with i-BUS2 protocol series
(such as FTr8B, FTr12B, INr6-HS and other Flysky AFHDS 3 enhanced receivers).
Compatible Models: Cars or airplanes, etc.
Protocol: i-BUS2
Measurement Accuracy: 1m
Measurement Range : -1000 ~ 8000m
Vario meter: -150m/s ~ +150m/s
Input Power: 3.5 ～ 9V/DC
Working Current: 10mA/5 V
Online Update: No
Dimensions: 160mm（Length ）
Weight: 3.5g
Temperature Range: -20℃ ~ + 85℃
Humidity Range: 20% ~ 95%
Certifications: CE, FCC
Do not put the sensor in a sealed location.
Do not install in a location where the wind/air flow can hit the sensor.
The sensor calculates the altitude from atmospheric pressure. Atomspheric
pressure will get lower as you go up in altitude. Using this the sensor will
estimate the altitude. In addition, atmospheric pressure may changes due
to weather conditions, such as temperature, humidity and other factors, the
altitude display may vary slightly at the same position.
Follow the steps below for installing the altitude sensor.
1. Use 3M stickers to fix the temperature sensor at the appropriate location of the
model. It should be noted that the fixed surface should be flat. You can also use
a cable tie to tie it to the model. In this case, you should control the force.
2. Connect the servo interface to the Newport interface of the receiver. Set the
protocol of the corresponding Newport interface of the receiver to i-BUS2 at
the transmitter side which is bound to this receiver. As a result, you can view
the relevant information at the transmitter side.
Diagram:
FS-iBA01
Notes:
1. The cable length may vary to different applications. If you need to add an
extension cable, please note that the FS-iBT01 interface is a servo interface, and
for the pin definition, refer to the description in the previous Overview section.
2. The compatible transmitters which support i-BUS2 protocol: Noble (firmware
version V2.0.93 or later), Noble Lite (firmware version V1.0.10 or later), Noble
pro, PL18 (firmware version 1.0.55 or later) and PL18 Lite (firmware version 1.0.65
or later).
3. If the altitude sensor is working properly, the LED is solid on at this time.
4. If the sensor is connected to power supply but no i-BUS2 signal is detected, the
LED flashes slowly at this time.
Altitude sensor
[1] S( 信号脚） [1] Signal pin
[2] + ( 电源正极） [2] + (Power anode)
[3] - ( 电源负极 ) [3] - (Power cathode)
[4] LED 灯 [4] LED
Newport Interface
Receiver
