DMX-26506
SETUP INSTRUCTIONS
1

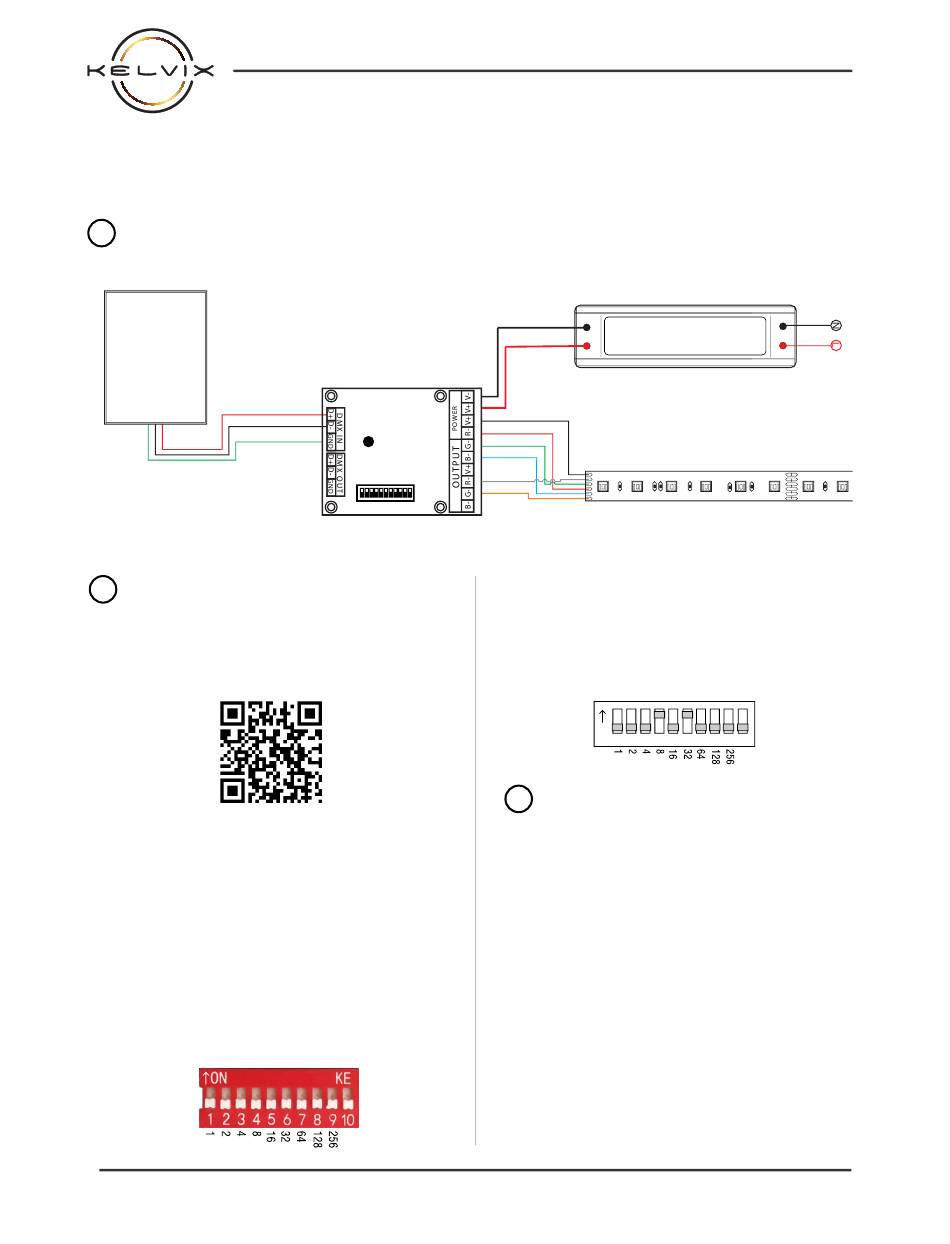

Connect power supply, DMX signal, and LED lighting strip(s) to the DMX512 decoder as shown below:
DMX
CONTROLLER
Once all connections have been made, set
2
decoder to desired DMX start address:
a) Scan QR code for a time-saving online
conversion tool.
http://www.sabretechnology.co.uk/calc.asp
b) Manual Instructions:
Use DIP Switch to select adress. To set
DMX address, first look at the sideways
numbers printed below switching board
(1, 2, 4,... 256); These are DMX adresses.
To achieve desired address, add up these
values then flip corresponding switches to
"ON" position.
Questions/Support | 800-789-3810 | quotes@kelvix.com
All manuals and user guides at all-guides.com
DC5V-24V
M A X 1 6 A
P O W E R / D M X
DMX ADDR AND FUN
Power Supply
12-24VDC
RGBWCT, RGBWA or 2 RGB Lighting Strip
+24V
W
G
R
B
G
R
B
R
C
For example, desired DMX address is 40.
The value of switch 6 (DMX address 32) +
the value of switch 4 (DMX address 8) =
DMX value 40. Therefore, move switch 6 and
4 to the "ON" position (see example below).
ON
1 2 3 4 5 6 7 8 9 10
Refer to setup instructions of system's DMX
3
controller for completion of setup.
Note: Multiple decoders set to the same
DMX address will function in unison.
Note: The DMX-26506 decoder complies
tostandard DMX512 protocol and is
compatible with any third party standard
DMX512 controller.
