Abode Tubist T Spray Installation Instructions

Tubist T Spray
5 Year Warranty
Terms and Conditions:
In the unlikely event that you should experience any
defect in the materials or workmanship of your new
Abode product within 5 years of purchase, the
purchaser's sole remedy shall be the replacement (at the
manufacturer's discretion) of all or any part of the
product that is defective. All working parts and valves are
guaranteed for a period of 5 years from purchase.
Decorative surface finishes and O‐rings are guaranteed
for 1 year from the date of purchase provided that our
advice concerning care has been observed and no
scouring agents have been used. This is provided that the
product has been used for normal domestic purposes
only and that the care, installation and maintenance
instructions have been observed. The warranty extends
to the original purchaser only.
Marks, scuffs and scratches caused by improper
installation or accidental damage are not covered by this
guarantee. Neither are shade variations or any damage
or defect caused by incorrect installation or abuse of the
fitting.
Important Care Instructions for your Product:
To maintain the appearance of this product, ensure that it is regularly cleaned only using a clean, soft damp cloth. A solution
of warm water and a mild liquid detergent may be used where necessary, and then the fitting rinsed thoroughly and wiped
dry. Any other cleaning action or use of common domestic cleaning products will invalidate your warranty.
If the product has a plastic aerator insert at the end of the spout it should be unscrewed and the plastic internal insert only
removed and cleaned or descaled to maintain flow performance. Do not use descaling solution on any decorative metal
housing, rinse the insert thoroughly before reattaching in the reverse order.
Abrasive cleaners, scouring cleaners and acidic cleaners must not be used on this product under any circumstances. Avoid
contact with all solvents (including chlorinated solvents, ketones or acetones as these may result in surface deterioration or
etching). Also avoid contact with any harsh household chemicals such as oven cleaners, drain cleaners, rust removers, paint
strippers and toilet bowl cleaners, bar keepers friend or Brasso.
Please leave these instructions for your customer.
As we are continuously improving and developing our
range of products, finishes & colours, in the event of a
valid claim, we may not be able to provide an identical
replacement for the defective product throughout the
guarantee period. Where an identical product is no
longer available, we will supply the nearest equivalent
from our then current product range. In assessing your
claim, we must be given the opportunity to discuss your
claim, review your proof of purchase and or inspect the
product as installed prior to removal. Any agreed product
return must be packaged as received and complete.
No other warranties, express or implied, are made,
including merchantability or fitness for a particular
purpose. Under no circumstances shall the manufacturer
be liable for any loss or damage arising from the
purchase, use or inability to use this product, or for any
special, indirect, incidental or consequential damages.
No liability is accepted for consequential damage to
other household fixtures, fittings or furnishings arising
from this claim, even if attached to the product. No
installer, dealer, agent or employee of Abode has the
authority to modify the obligations or limitations of this
warranty.
Parts and Contents:
Key Description
A Mixer body
B Base plinth
C Upper seal
D Fixing column
E Triangular stabilising bracket
F Lower gasket
G Metal spacer
H Metal fixing nut
I Hot Flexible tail (with integral NRV)
J Cold Flexible tail (with integral NRV)
K Mixed water outlet extension
L Rubber seal
M Pull out horse
N Hose weight
O Hose weight screws
Installation Instructions:
Preparation
Before installing the new product it is essential that you thoroughly flush through the supply pipes in order to remove any
remaining solder, swarf or impurities from your system. Failure to carry out this simple procedure could cause problems or
damage to the workings of the product or reduce performance invalidating the warranty.
We strongly recommend best practice of installing particle filters and isolation valves to both the hot and cold feed pipes in an
accessible position. This will help to prevent premature failure of the valves and ease any future maintenance.
All parts should be removed from their packaging and inspected for any transport damage prior to installation.
Shut off (isolate) your hot and cold water supply locally at the point of installation before continuing with the installation. If the
water cannot be isolated locally the turn off the mains stopcock and power to any heating system, now open the lowest tap or
drain point in the system until both hot and cold supplies are fully drained.
This product requires a 35mm tap hole, if replacing an existing product, remove it and clean the end of the hot and cold feed
pipes using wire wool, the tap hole area should be free from dirt and sealant.
Loosely position the product and fittings to check if any alteration to the existing pipework is required, if needed, do this now.
If the product is single flow (see section important technical data "flow characteristics") then non return (check) valves must be
installed to comply with regulations. Some products are supplied with non‐return valves this will be noted in the instructions.
Qty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2

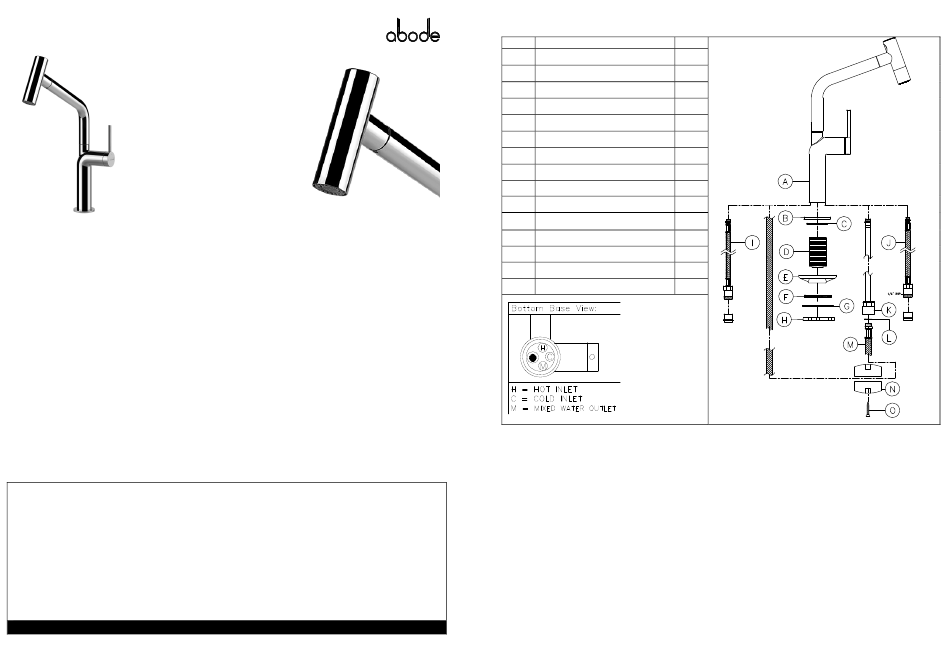

Figure 1
