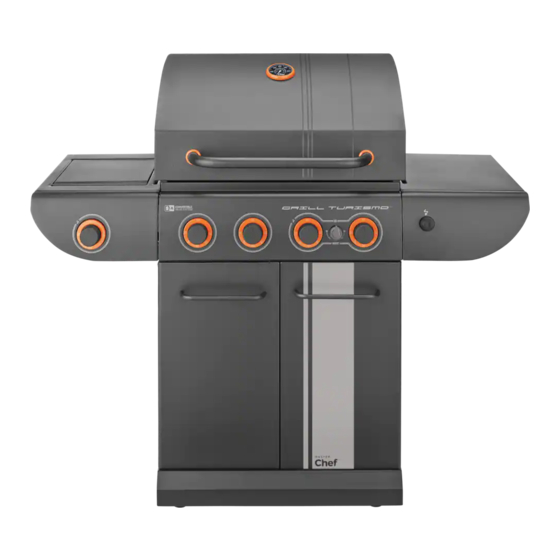

4-burner griddle
Hide thumbs Also See for GRILL TURISMO:
Table of Contents

Advertisement

Quick Links

085-0106-8 / G70220
TIP: ASSEMBLE YOUR GRIDDLE IMMEDIATELY. MISSING OR DAMAGED PARTS MUST BE CLAIMED
GRIDDLE SAFETY CHECK
FOR YOUR FAMILY'S SAFETY, PLEASE CHECK THE FOLLOWING:
READ and UNDERSTAND the owner's manual.
CHECK that the regulator nipple is centred into the LP cylinder valve. DO NOT cross thread this
connection. Cross threading may result in a fire or explosion at the tank connection.
PERFORM LEAK TEST on all connections as specified in this user manual. Leak checks should be
performed on all new griddles even if assembled by an assembler or gas technician. Leak checks should be
performed frequently thereafter.
DO NOT position or operate griddle under an overhang, or unprotected construction, against a wall, near
aluminum siding, windows or fencing.
INSPECT and CLEAN burner tubes to avoid flash fires caused by spider webs and other blockages. Inspect
gas jets to ensure they are correctly installed in burner tubes. NEVER LEAVE A LIT GRILL UNATTENDED.
BEFORE OPENING THE GAS SUPPLY, control knobs are in OFF position, gas is turned off, and the regulator
is attached to tank correctly. Then follow the PROPER LIGHTING PROCEDURE as shown in the manual. If
above steps are not followed, you may experience low flames, or other performance issues.
AVOID dangerous grease fires by performing regular cleaning and maintenance of interior casting, the grease
collection system, flame tamers and cooking grates.
Large yellow flames and the smell of gas indicate a blockage in the burner, usually a spider web. Remove the
burner and clear the obstruction.
CAUTION:
IN DIRECT SUN, AND IN OPERATION, YOUR GRIDDLE'S STAINLESS STEEL AND PAINTED STEEL
PARTS CAN BECOME VERY HOT.
DO NOT RETURN THE PRODUCT TO THE STORE.
IF YOU NEED HELP, CALL THE MASTER CHEF
1-855-453-2150
GET HELP FOR:
MISSING/DAMAGED PARTS • ASSEMBLY • TROUBLESHOOTING
• WARRANTY ASSISTANCE • PRODUCT INFORMATION
WITHIN 30 DAYS OF PURCHASE.
4-BURNER GRIDDLE
STOP
HOTLINE
®
LAST UPDATE: SEP. 22. 2022 - WZ
