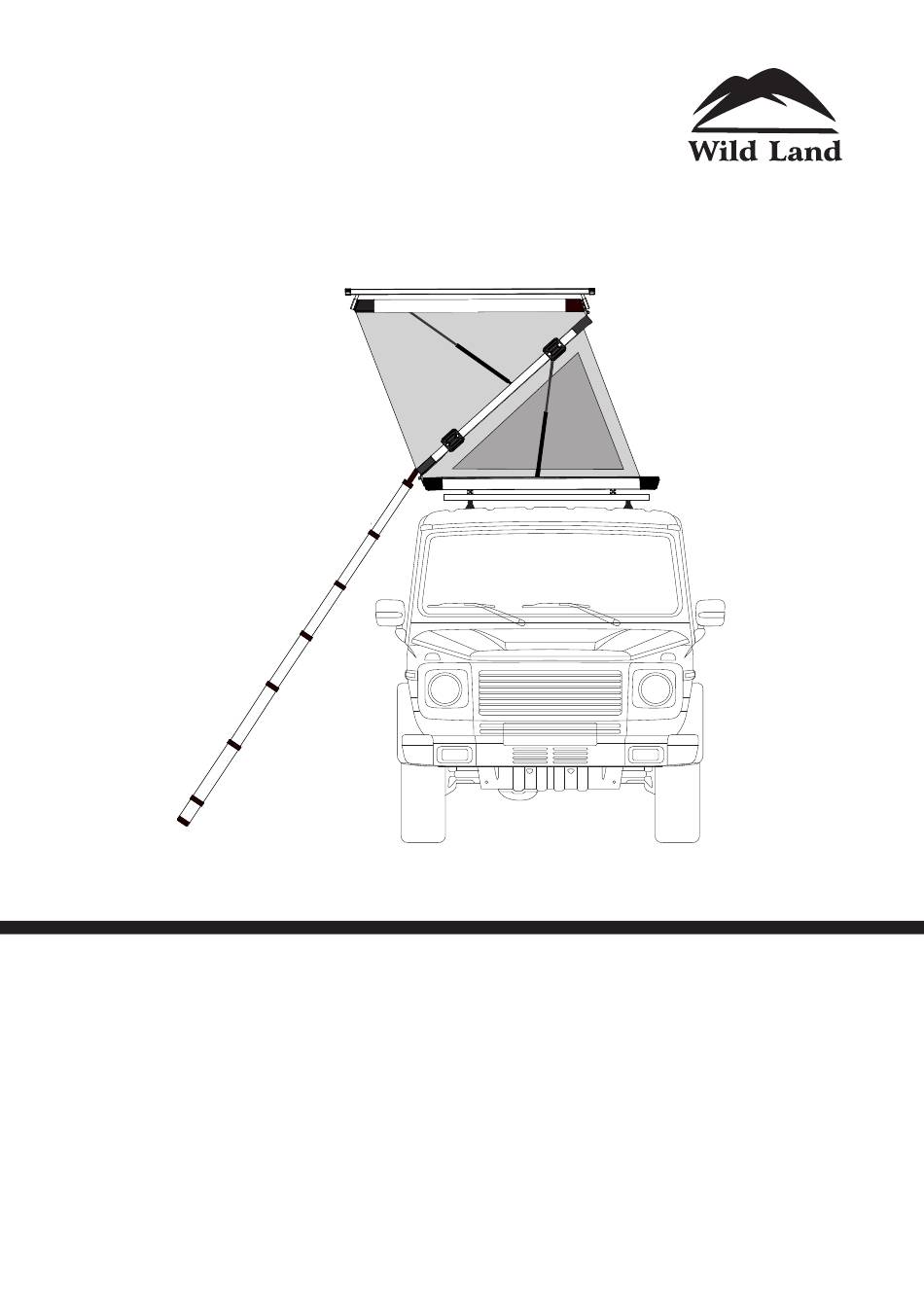

- Page 1 Wild Land Rock Cruiser Hard Shell Roof Top Tent INSTRUCTION MANUAL...
-
Page 2: Product Description

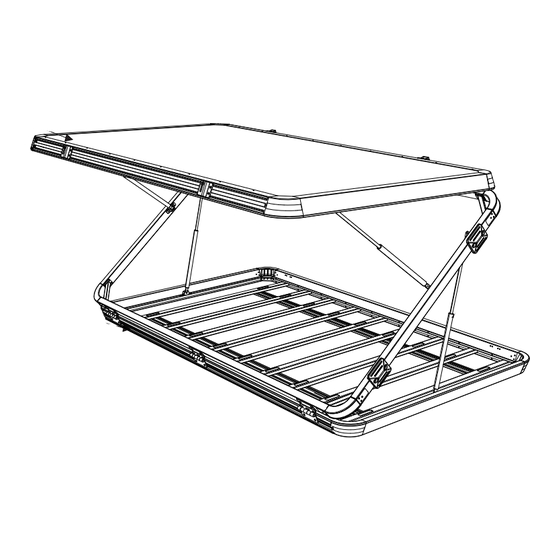

Product description： This semi-auto roof top tent could be set up easily by 2 persons, set up and fold down in seconds with patented gas strut assisted opening mechanism. Enjoy the outdoor life in whatever weather ! Material and specification： A. -
Page 3: Installation
Installation: Two detachable bars could be install horizontally or vertically on shell as you need. Please install the bars on roof tent before mounting tent on car top： ① Insert fixed parts of bar into slot of frame on both side. ②... - Page 4 Installation: 1. Install your roof rack per the manufacturers instructions and in the load bearing position on the vehicle. 2. Lift up the tent onto the rack from car side. Adjust the tent to the roof center, ensuring the rear door can be opened/closed. 3.
-
Page 5: Included Tools
INCLUDED TOOLS: U Shape Stator(4pcs) M8 Flat Washer(8pcs) M8 Arc Washer(8pcs) Plastic Nut(8pcs) T shape bolts(8pcs) 6mm Hex Key(1pc) Tool Bag M8 Flat Washer M8 Arc Washer M8x15mm Hex Bolt Aluminum Rivet(2pcs) (4pcs) (4pcs) (4pcs) - Page 6 Setting up: 1. Release all buckles around the tent. 2. Push up the tent from its back side. 3.Tent will be opened automatically with the gas strut assist. 4. Push up the shell from the front side.
- Page 7 Setting up: 5. Hang ladder on the frame, then adjust the length. (Ensure ladder is stable) 6. The tent is fully set up.
-
Page 8: Folding Down
Folding down: 1. Close all windows. Hook the elastic ropes inside the tent(as P1). Zip up the front door to two thirds position. Tuck shoes bags inside(as P2). Then press down the shell. 2. Pull down the belt puller on the back side to collapse the tent. - Page 9 TROUBLESHOOTINS TIPS (IF NEEDED): Once cylinder rod does not work , pls double check as below. 1. If cylinder rod is covered by any fabric. 2. If there is any air leaking from the cylinder rod. If yes, the cylinder rods need to be replaced. Loosen the scews of the cylinder rod with a screwdriver, and change a new one.
- Page 11 -10-...
