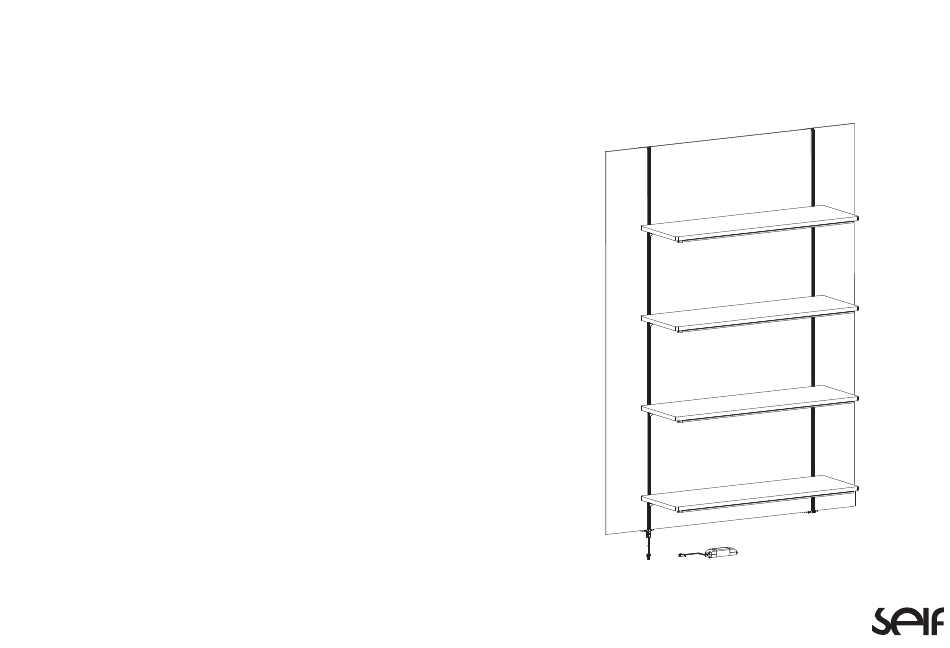

- Page 1 SPTK SPTK...
- Page 2 • Track system for low voltage, max 12V, 4A or 24V, 4A • For adaper, max. output current 2A with 2" output cable + HAA250G socket. • Max. Fuctional load is not greater than 30kg per layer Max output 2A. SPTK-0001LVT SPTK-0201MTA Dimensions: (inches/mm) Dimensions: (inches/mm) (SPTK-95) (ARM-SPTK) 9/16”(14)
-
Page 3: Track Installation
Tools: Install the wall panel. Tape Measure Driller Electrical Safety Gloves Track installation: Install the power track of SPTK. -
Page 4: Shelf Installation
Shelf installation: Wiring: Install the shelf bracket onto shelf. Install shelves onto power track one by one. Connect the adaptor of SPTK with LED light. Install endcap of SPTK. - Page 5 Quantity of the layer no more than 5 pcs per system, Max. Fuctional load is not greater than 30kg per layer. Connect to LED power supply. Power on SELF Electronics Co.,Ltd. No. 1345 JuXian Road, Ningbo Hi Tech Park, Ningbo, China 315103...
