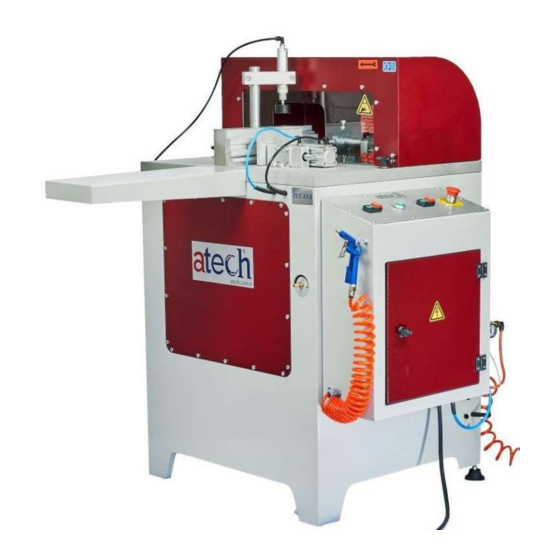

- Page 1 TUCANA-06 A AUTOMATIC END MILLING MACHINE FOR LARGE EXTRUSIONS USER’S MANUAL...
- Page 2 CONTENTS 1. GENERAL INFORMATION 1.1. Introduction 1.2. Information about of the Distributor 2. MACHINE’S DESCRIPTION AND PURPOSE OF USE 2.1. Machine’s Description 2.2. Accessories 2.3. Technical Features 2.4. Dimensions 3. SAFETY 3.1. Safety Information 3.2. Accident Prevention 3.3. General Safety Information 3.4.
- Page 3 Safe and efficient use of the machine for long term depends on understanding and following the instructions contained in this manual. The technical dtawings and details contained in this manual constitute a guide for the operator. 1.2. Information About The Distributor ATech Machine, Inc. 8539 Ziggy Lane Gaithersburg, MD 20877 – USA Ph.: 240-505-1967...
- Page 4 2.4. Dimensions 3. SAFETY 3.1. Safety Information The symbols shown hereunder are necessary to be read with special attention. Not reading or observing of them may cause damage to the equipment or personal injury. The IMPORTANT symbol above is one telling to apply special care and to be careful at carrying out the specified operation. The CAUTION! symbol above warns you against specific dangers and requires to read the text.
- Page 5 3.3. General Safety Information 3.3.1. The power cable should be led in such a way that nobody can step on it or nothing can be placed on it. Special care be taken regarding the inlet and outlet sockets. 3.3.2. If the power cable should be damage during operation, don’t touch and unplug it. Never use damaged power cables.
- Page 6 4. TRANSPORT OF THE MACHINE 4.1.1. The transport should be done by qualified personnel only. 4.1.2. The machine should be transported by lifting with proper equipment (not touching the ground during the transport). 4.1.3. Keep the carton box packing of the machine for future use. 5.
- Page 7 Don’t start to process the work piece before ensuring that it is clampded properly. 7.1.8. Press the “Motor” button to rotate the milling cutters. 7.1.9. You can start the cutting process by pressing the green "I" button. Once the machine has finished cutting, it will automatically return to its initial position and the clamps will open automatically.
- Page 8 9.1.4. Apply a protective oil film onto the milling cutters and the unpainted parts of the machine to provide protection against corrosion. 10. INFORMATION ABOUT FAULTY USE Here are our suggestions to get rid of immediate problems. If the fault can not be rectified or if you encounter a fault other than those listed below, please contact the technical service.
